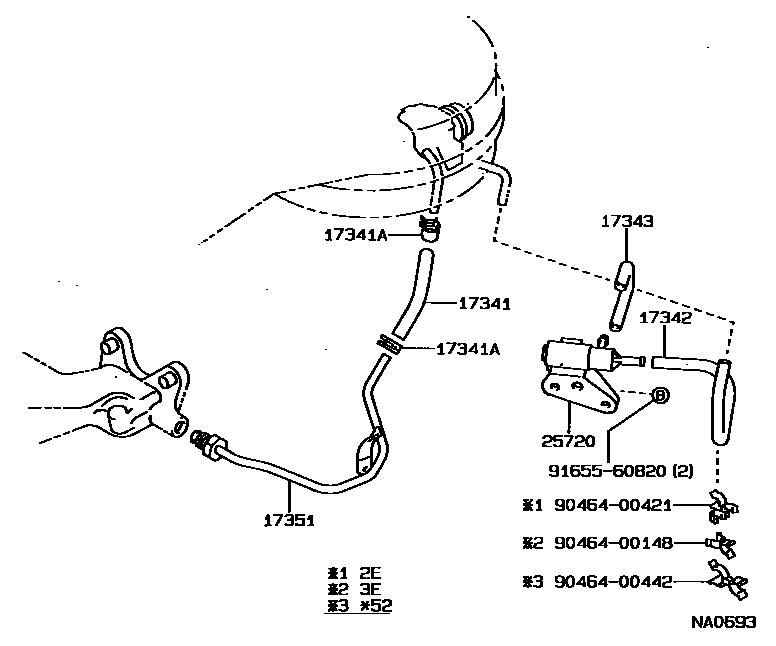

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11020i2E,3E..EL3#198805-198904

main17341-11021i2E,3E..EL3#198904-199009

17341ACLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)

main90467-20005i2E,3E..EL3#198805-199009

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-11020i2E..EL30..3DS..4F..TX198805-199009

main17342-11031i2E,3E..EL3#198805-199009

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-11010i2E..EL30..3DS..4F..TX198805-199009

main17343-11050i2E,3E..EL3#198805-199009

17351MANIFOLD, AIR INJECTION

main17306-11010i2E..EL30198805-199009

main17306-11020i3E..EL31198805-199009

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-11030i2E,3E..EL3#198805-199009

main25720-11050i2E..EL30..3DS..4F..TX198805-199009

9046400148

main90464-00148

9046400421

main90464-00421

9046400442

main90464-00442

9165560820

main91655-60820

10 parts on this diagram · 2 diagrams in section
