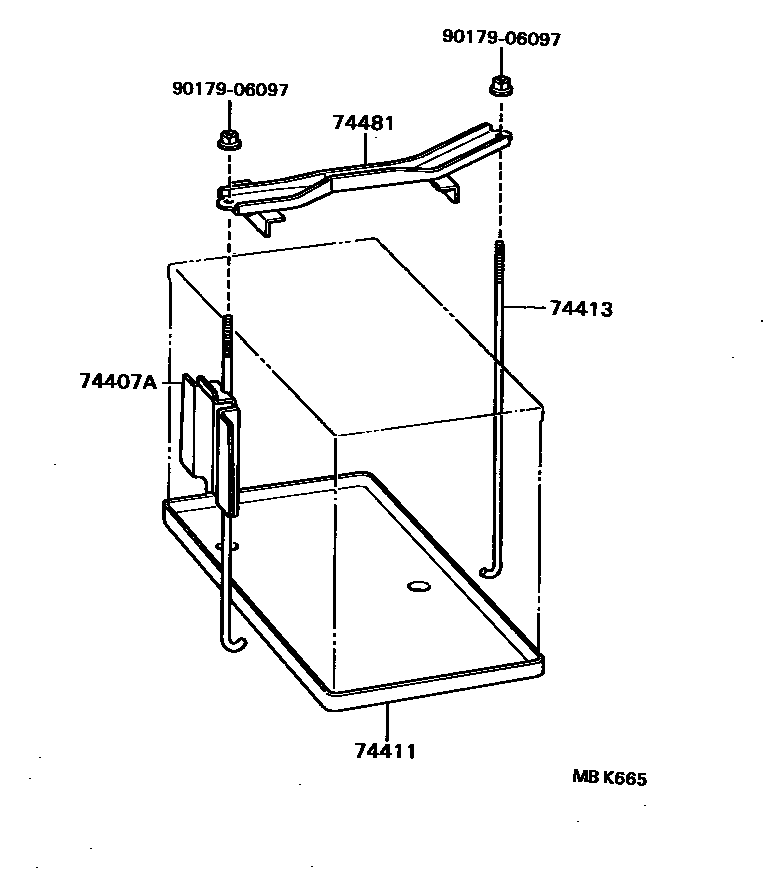

BATTERY CARRIER

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-16010iEL3#,NL30198605-198606

main74407-16020iEL3#,NL30198606-198805

74411CARRIER, BATTERY

main74431-14010iEL3#198606-198805

127X188

main74431-14020iEL3#198605-198805

138 X 241

main74431-14030iNL30198605-198805

176 X 263

main74431-14040iNL30..4FC198609-198805

176 X 308

main74431-14050iEL3#198605-198606

133 X 201

74413BOLT, BATTERY CLAMP

main74451-14010iEL3#,NL30198605-198606

main74451-16010iEL3#,NL30198606-198805

74481CLAMP, BATTERY HOLD DOWN

main74404-16060iEL3#198605-198805

main74404-16080iNL30198605-198805

9017906097

main90179-06097

5 parts on this diagram · 1 diagram in section
