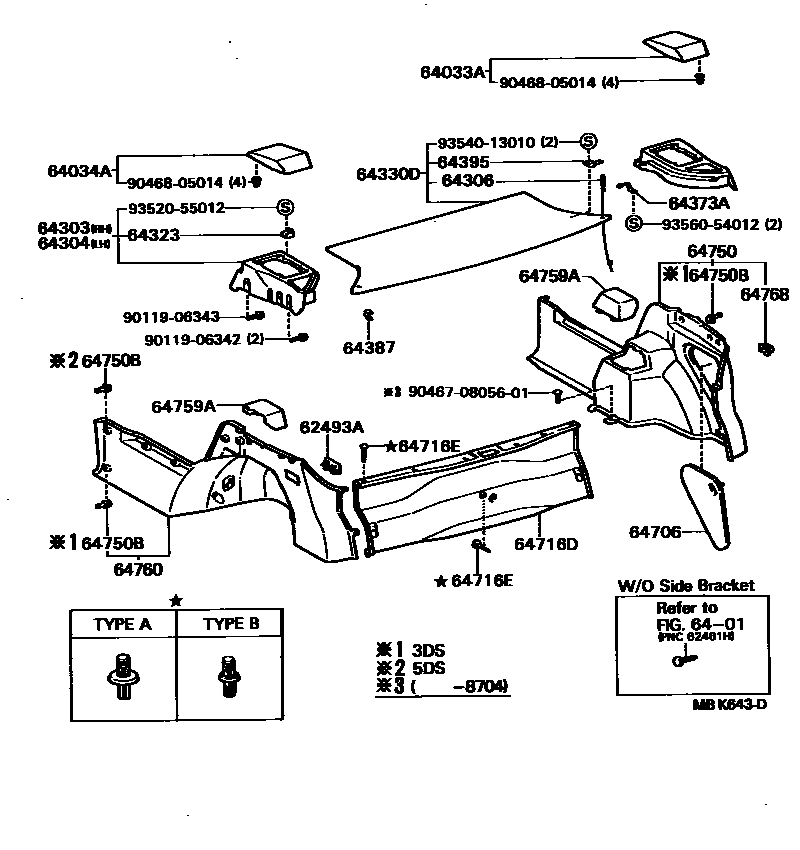

DECK BOARD & DECK TRIM COVER

62493ACOVER, REAR ROOM LAMP OPENING

main62493-16030-01iEL30,NL30..GL,TX198605-198805

BLACK,BLACK,TRIM2#

main62493-16030-04iEL30,NL30..CD,GL,TX198605-198805

BLUE,BLUE,TRIM8#

main62493-16030-05iEL30,NL30..GL,TX198605-198805

BEIGE,BEIGE,TRIM4#

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-16030-01iEL31,NL30..GP,SR,ZX198605-198805

BLACK,BLACK,TRIM2#

main64033-16030-04iEL31,NL30..GP,SR,ZX198605-198805

BLUE,BLUE,TRIM8#

main64033-16030-05iEL31,NL30..ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-16030-01iEL31,NL30..GP,SR,ZX198605-198805

BLACK,BLACK,TRIM2#

main64033-16030-04iEL31,NL30..GP,SR,ZX198605-198805

BLUE,BLUE,TRIM8#

main64033-16030-05iEL31,NL30..ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

64303BRACKET SUB-ASSY, PACKAGE TRAY, RH

main64301-16070-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLACK,BLACK,TRIM2#

main64301-16070-04iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLUE,BLUE,TRIM8#

main64301-16070-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

main64301-16080-01iEL31,NL30..GP,SR,ZX198605-198805

W/SPEAKER,BLACK,BLACK,TRIM2#

main64301-16080-04iEL31,NL30..GP,SR,ZX198605-198805

W/SPEAKER,BLUE,BLUE,TRIM8#

main64301-16080-05iEL31,NL30..ZX198605-198805

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

64304BRACKET SUB-ASSY, PACKAGE TRAY, LH

main64302-16070-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLACK,BLACK,TRIM2#

main64302-16070-04iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLUE,BLUE,TRIM8#

main64302-16070-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

main64302-16080-01iEL31,NL30..GP,SR,ZX198605-198805

W/SPEAKER,BLACK,BLACK,TRIM2#

main64302-16080-04iEL31,NL30..GP,SR,ZX198605-198805

W/SPEAKER,BLUE,BLUE,TRIM8#

main64302-16080-05iEL31,NL30..ZX198605-198805

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-16030iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

64323CLAMP, PACKAGE TRAY TRIM, NO.1

main64323-10010iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

RH

main64324-10010iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

LH

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-16180-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLACK,BLACK,TRIM2#

main64330-16180-04iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLUE,BLUE,TRIM8#

main64330-16180-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

main64330-16190-01iEL31,NL30..GP,SR,ZX198605-198805

W/SPEAKER,BLACK,BLACK,TRIM2#

main64330-16190-04iEL31,NL30..GP,SR,ZX198605-198805

W/SPEAKER,BLUE,BLUE,TRIM8#

main64330-16190-05iEL31,NL30..ZX198605-198805

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

64373ASTOPPER, PACKAGE TRAY TRIM

main64373-16030iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198805

main64373-16040iEL3#,NL30..5DS198605-198805

64387HANGER, PACKAGE TRAY TRIM

main64381-10010iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

64395PIN, PACKAGE TRAY TRIM HINGE

main64373-16050iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

RH

main64379-16010iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

LH

64706COVER SUB-ASSY, QUARTER TRIM, JACK

main64766-16030-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLACK,BLACK,TRIM2#

main64766-16030-04iEL3#,NL30198605-198805

BLUE,BLUE,TRIM8#

main64766-16030-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

64716DCOVER, DECK TRIM, REAR

main64716-16040-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLACK,BLACK,TRIM2#

main64716-16040-04iEL3#,NL30198605-198805

BLUE,BLUE,TRIM8#

main64716-16040-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07043-11iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

TYPE A,BLACK,BLACK,TRIM2#

main90467-07043-15iEL3#,NL30..GL,LIM,TX,ZX198605-198805

TYPE A,BEIGE,DARK BEIGE,TRIM4#

main90467-07043-34iEL3#,NL30198605-198805

TYPE A,BLUE,BLUE,TRIM8#

main90467-07066-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

TYPE B,BLACK,BLACK,TRIM2#

main90467-07066-04iEL3#,NL30198605-198805

TYPE B,BLUE,BLUE,TRIM8#

main90467-07066-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

TYPE B,BEIGE,DARK BEIGE,TRIM4#

64750PANEL ASSY, DECK SIDE TRIM, RH

main64714-16080-01iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198612

BLACK,BLACK,TRIM2#

main64714-16080-04iEL3#..3DS198605-198612

BLUE,BLUE,TRIM8#

main64714-16080-05iEL3#..3DS..(GL,LIM,TX,ZX)198605-198612

BEIGE,DARK BEIGE,TRIM4#

main64714-16090-01iEL3#,NL30..5DS198605-198607

BLACK,BLACK,TRIM2#

main64714-16090-04iEL3#,NL30..5DS198605-198607

BLUE,BLUE,TRIM8#

main64714-16090-05iEL3#,NL30..5DS198605-198607

BEIGE,DARK BEIGE,TRIM4#

main64714-16110-01iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198612-198805

BLACK,BLACK,TRIM2#

main64714-16110-04iEL3#..3DS198612-198805

BLUE,BLUE,TRIM8#

main64714-16110-05iEL3#..3DS..(GL,LIM,TX,ZX)198612-198805

BEIGE,DARK BEIGE,TRIM4#

main64714-16900-01iEL3#,NL30..5DS198607-198805

BLACK,BLACK,TRIM2#

main64714-16900-04iEL3#,NL30..5DS198607-198805

BLUE,BLUE,TRIM8#

main64714-16900-05iEL3#,NL30..5DS198607-198805

BEIGE,DARK BEIGE,TRIM4#

64750BRETAINER(FOR DECK SIDE TRIM PANEL)

main67771-14040iEL3#,NL30..5DS198605-198805

64759ACOVER, SHOCK ABSORBER HEAD

main58731-16040-01iEL3#,NL30..GL,GP,LIM,SR,TX,ZX198605-198805

BLACK,BLACK,TRIM2#

main58731-16040-04iEL3#,NL30198605-198805

BLUE,BLUE,TRIM8#

main58731-16040-05iEL3#,NL30..GL,LIM,TX,ZX198605-198805

BEIGE,DARK BEIGE,TRIM4#

main58731-16050-01iEL31..TBO198609-198805

W/TEMS,BLACK,BLACK,TRIM2#

main58731-16050-04iEL31..TBO198609-198805

W/TEMS,BLUE,BLUE,TRIM8#

64760PANEL ASSY, DECK SIDE TRIM, LH

main64715-16080-01iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198605-198612

BLACK,BLACK,TRIM2#

main64715-16080-04iEL3#..3DS198605-198612

BLUE,BLUE,TRIM8#

main64715-16080-05iEL3#..3DS..(GL,LIM,TX,ZX)198605-198612

BEIGE,DARK BEIGE,TRIM4#

main64715-16090-01iEL3#,NL30..5DS198605-198607

BLACK,BLACK,TRIM2#

main64715-16090-04iEL3#,NL30..5DS198605-198607

BLUE,BLUE,TRIM8#

main64715-16090-05iEL3#,NL30..5DS198605-198607

BEIGE,DARK BEIGE,TRIM4#

main64715-16110-01iEL3#..3DS..(GL,GP,LIM,SR,TX,ZX)198612-198805

BLACK,BLACK,TRIM2#

main64715-16110-04iEL3#..3DS198612-198805

BLUE,BLUE,TRIM8#

main64715-16110-05iEL3#..3DS..(GL,LIM,TX,ZX)198612-198805

BEIGE,DARK BEIGE,TRIM4#

main64715-16900-01iEL3#,NL30..5DS198607-198805

BLACK,BLACK,TRIM2#

main64715-16900-04iEL3#,NL30..5DS198607-198805

BLUE,BLUE,TRIM8#

main64715-16900-05iEL3#,NL30..5DS198607-198805

BEIGE,DARK BEIGE,TRIM4#

64768STOPPER, JACK COVER

main64768-16010iEL3#,NL30198605-198805

9011906342

main90119-06342

9011906343

main90119-06343

904670805601

main90467-0805601

9046805014

main90468-05014

9352055012

main93520-55012

9354013010

main93540-13010

9356054012

main93560-54012

27 parts on this diagram · 1 diagram in section
