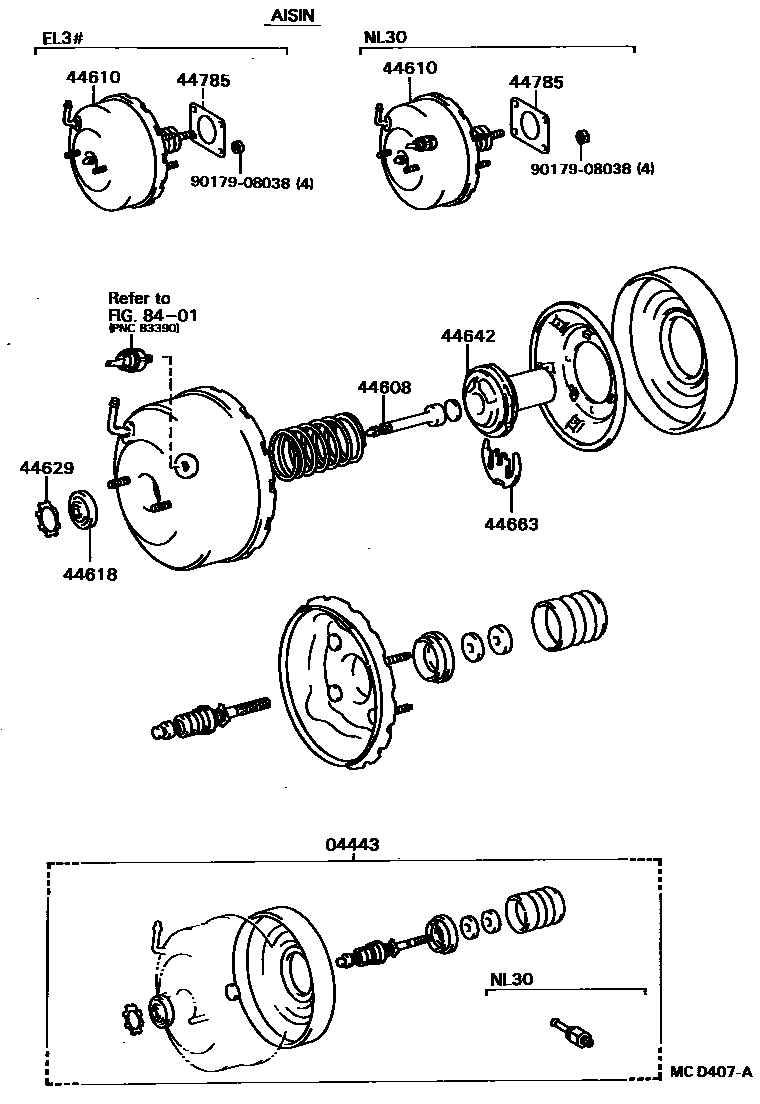

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

04443BOOSTER KIT, BRAKE

main04443-16110iEL3#..CBR198605-198611

JKC

main04443-16130iEL3#..CBR198605-198611

AISIN

main04443-16150iEL31..TBO198609-198805

main04443-16160iNL30198605-198611

main04443-16170iEL3#..CBR198611-198805

AISIN

main04443-16180iEL3#..CBR198611-198805

JKC

main04443-16190iNL30198611-198805

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iEL3#,NL30198605-198805

AISIN

main44608-32020iEL3#..CBR198605-198805

JKC

44610BOOSTER ASSY, BRAKE

main44610-16160iEL3#198605-198611

main44610-16180iNL30198605-198611

main44610-16181iNL30198611-198805

main44610-16190iEL3#..CBR198611-198805

44618SEAL, BOOSTER BODY

main44621-28120iEL3#,NL30198605-198805

44629RING, CIRCULAR INTERNAL

main44628-28120iEL3#,NL30198605-198805

44642PISTON, BRAKE BOOSTER

main44642-16160iEL3#,NL30198605-198611

main44642-16180iEL3#,NL30198611-198805

44663KEY, VALVE STOPPER

main44635-16160iEL3#,NL30198605-198805

44785GASKET, BRAKE BOOSTER

main44785-16010iEL3#,NL30198605-198805

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908038

main90179-08038

10 parts on this diagram · 4 diagrams in section
