CARBURETOR ASSEMBLY

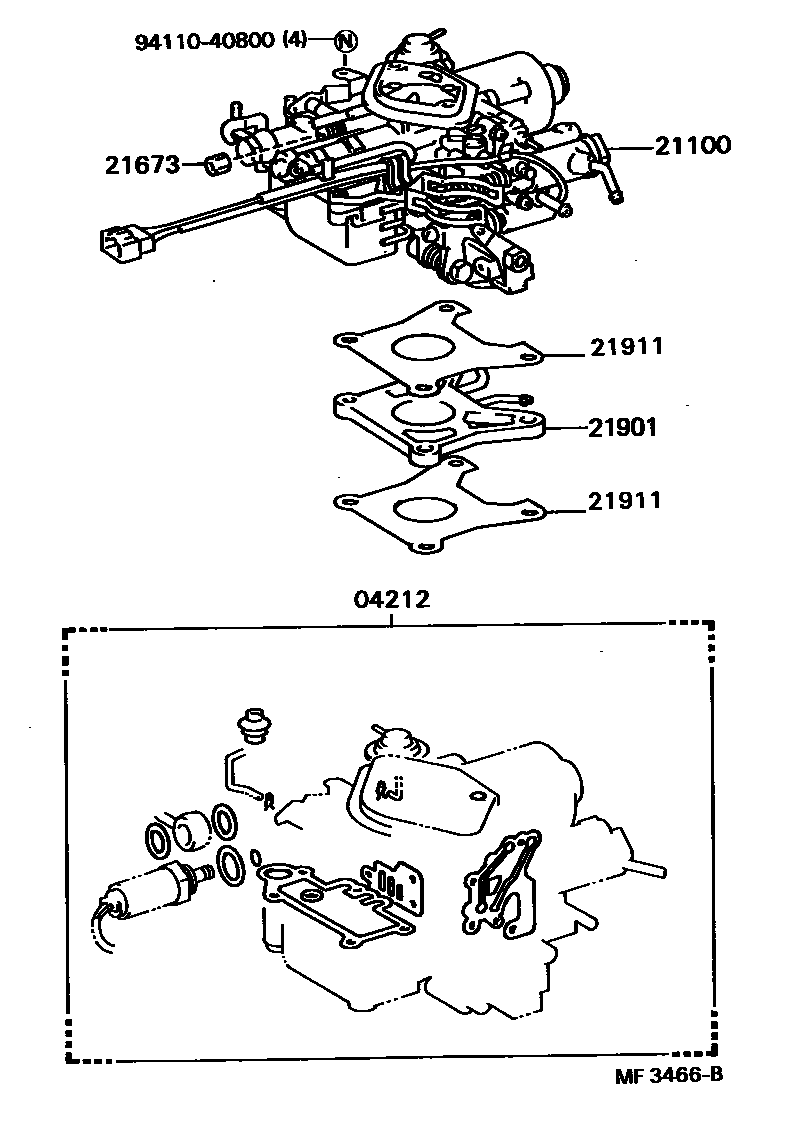

Parts diagram

04212GASKET KIT, CARBURETOR

main04212-11020i198605-198607

main04212-11030i198605-198710

main04212-11040i198710-198805

main04212-15091i198607-198710

21100CARBURETOR ASSY

main21100-11280i198605-198703

*52

main21100-11281i198703-198805

*52

main21100-11300i198605-198703

main21100-11301i198703-198706

main21100-11302i198706-198711

main21100-11303i198711-198805

main21100-11320i198605-198703

main21100-11321i198703-198706

main21100-11322i198706-198711

main21100-11323i198711-198805

main21100-11340i198605-198704

main21100-11341i198704-198706

main21100-11342i198706-198711

main21100-11343i198711-198805

main21100-11360i198605-198704

main21100-11361i198704-198706

main21100-11362i198706-198711

main21100-11363i198711-198805

21673CAP, IDLE LIMIT

main21673-13280i198605-198805

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-11010i198605-198805

main21901-11030i198605-198805

21911GASKET, CARBURETOR

main21911-11020×2i198605-198805

NO.1

main21911-11030i198605-198805

NO.2

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
