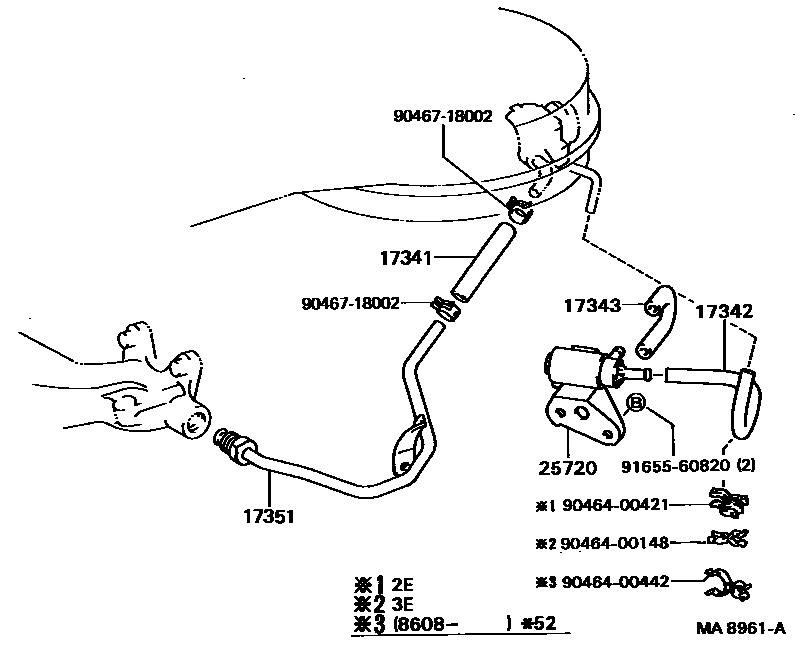

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-11020i2E,3E..EL3#198605-198805

17342HOSE, NO.2(FOR AIR INJECTION SYSTEM)

main17342-11020i2E..EL30..3DS..4F..TX198605-198805

*52

main17342-11030i2E,3E..EL3#198605-198706

main17342-11031i2E,3E..EL3#198706-198805

17343HOSE, NO.3(FOR AIR INJECTION SYSTEM)

main17343-11010i2E..EL30..3DS..4F..TX198605-198805

*52

main17343-11050i2E,3E..EL3#198605-198805

17351MANIFOLD, AIR INJECTION

main17306-11010i2E..EL30198605-198805

main17306-11020i3E..EL31198605-198805

25720VALVE ASSY, ELECTRIC AIR CONTROL

main25720-11030i2E,3E..EL3#198605-198805

main25720-11050i2E..EL30..3DS..4F..TX198605-198805

*52

9046400148

main90464-00148

9046400421

main90464-00421

9046400442

main90464-00442

9046718002

main90467-18002

9165560820

main91655-60820

10 parts on this diagram · 2 diagrams in section
