VENTILATION HOSE

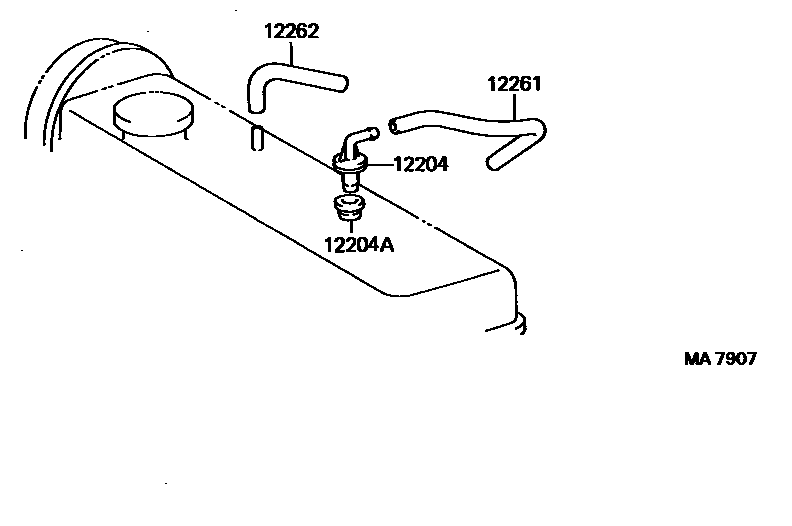

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

main12204-10020i198605-198805

main12204-10040i198605-198805

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i198605-198805

12261HOSE, VENTILATION

main12261-11040i198609-198805

main12261-11050i198605-198805

main12261-55010i198605-198805

12262HOSE, VENTILATION, NO.2

main12262-10020i198605-198805

main12262-11010i198609-198805

main12262-11020i198702-198805

4 parts on this diagram · 4 diagrams in section
