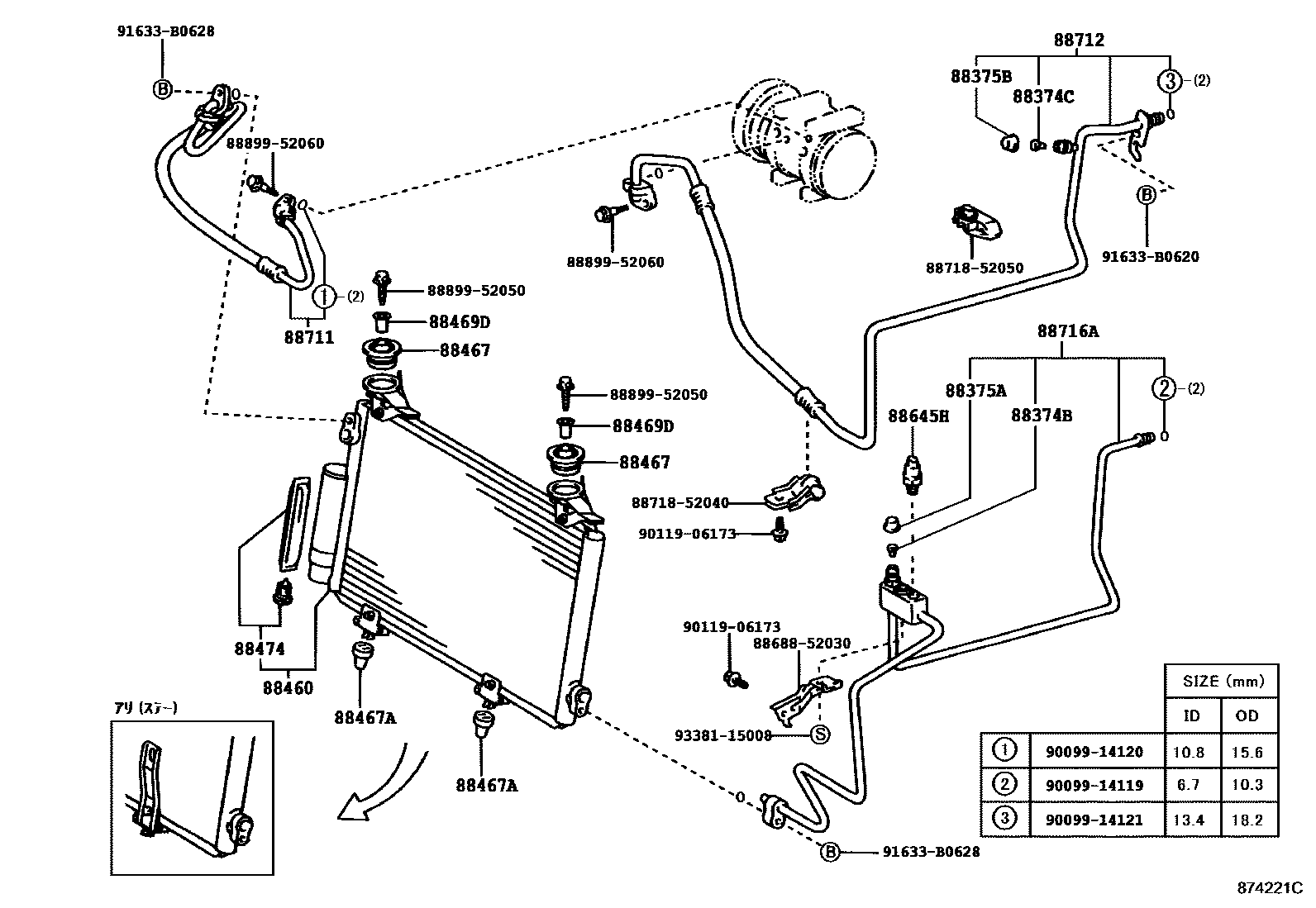

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP1#,SCP11199908-200208

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP1#,SCP11199908-200208

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iNCP1#,SCP11199908-200208

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNCP1#,SCP11199908-200208

88460CONDENSER ASSY, COOLER

main88450-52181iNCP1#,SCP11200208-200512

main88460-52010iNCP1#,SCP11199908-200208

main88460-52050iNCP1#,SCP11199912-200208

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180×2iSCP11;NCP1#..ATM;NCP1#..MTM..F200303

main88467-52010×2iNCP1#,SCP11199908-200208

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-52020×2iNCP1#,SCP11199908-200208

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010×2iNCP1#,SCP11199908-200208

88474DRYER, COOLER

main88474-17010iNCP1#,SCP11200208

main88474-47010iNCP1#,SCP11199908-200208

88645HSWITCH, PRESSURE NO.1

main88645-60030iNCP1#,SCP11199908-200208

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52010iSCP11199908-200208

main88711-52020iNCP1#199908-200008

main88711-52021iNCP1#..ATM;NCP1#..MTM..F200208

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-52010iSCP11200208

main88712-52020iSCP11199908-200208

main88712-52030iNCP1#..ATM;NCP1#..MTM..F200208

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-52011iSCP11200208

main88706-52040iNCP1#..MTM..X200208-200308

main88716-52010iSCP11199908-200208

main88716-52040iNCP1#199908-200208

main88716-52060iSCP11199908-200208

8868852030BRACKET, COOLER DIAPHRAGM

main88688-52030

8871852040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52040

8871852050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52050

8889952050COVER, EVAPORATOR

main88899-52050

8889952060COVER, EVAPORATOR

main88899-52060

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906173

main90119-06173

91633B0620

main91633-B0620

91633B0628

main91633-B0628

9338115008

main93381-15008

25 parts on this diagram · 6 diagrams in section
