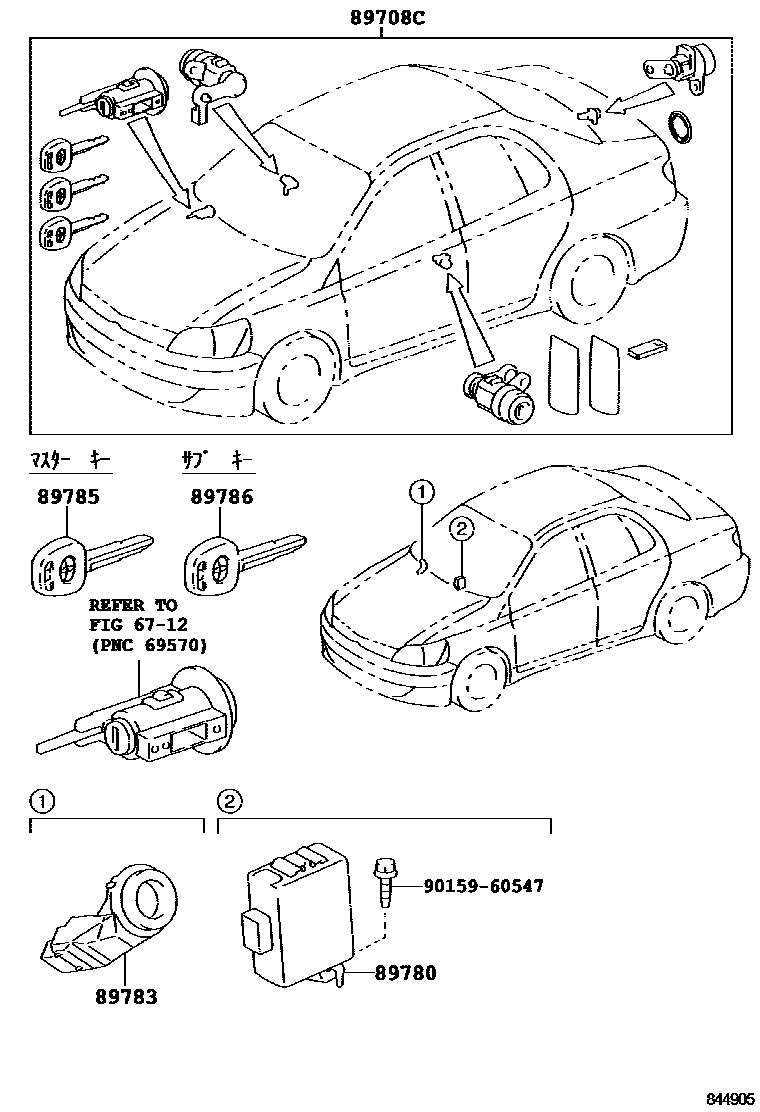

ANTI-THEFT DEVICE

0001 1��(�����������) 0002 1��(�����������)

6712LOCK CYLINDER SET

→ Go to FIG 67-12

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main69005-52790iNCP12..F200208

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-52030iNCP12200208-200308

89783AMPLIFIER, TRANSPONDER KEY

main89783-52030iNCP12200208-200308

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iNCP12200208-200308

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iNCP12200208-200308

9015960547

main90159-60547

7 parts on this diagram · 2 diagrams in section
