WIRING & CLAMP

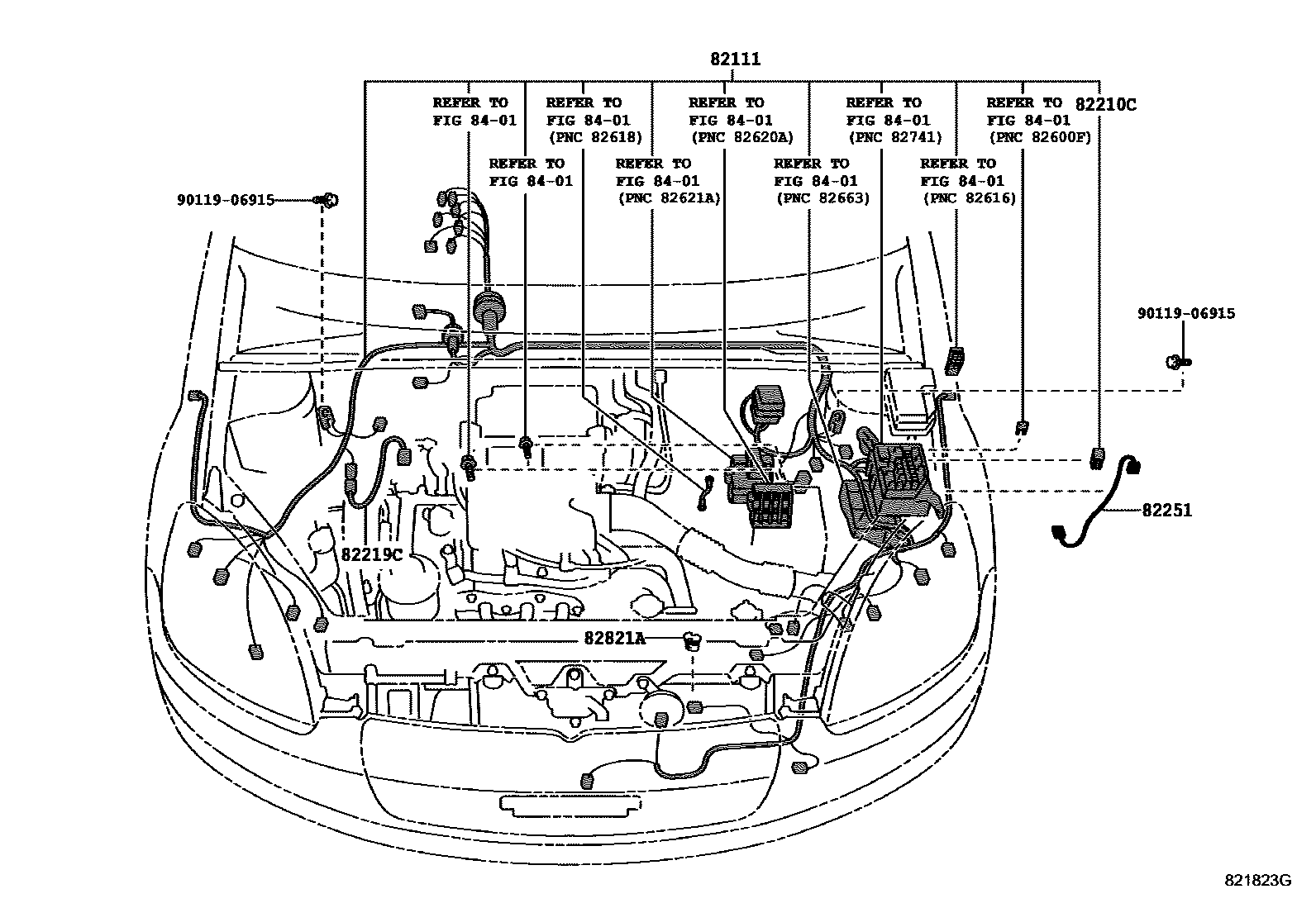

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-52560i199908-199912

main82111-52561i199912-200101

main82111-52562i200101-200112

main82111-52563i200112-200208

main82111-52570i199908-199912

main82111-52571i200008-200101

main82111-52572i200101-200112

main82111-52580i199908-199912

main82111-52581i199912-200101

main82111-52582i200101-200208

main82111-52590i199908-199912

main82111-52591i199912-200101

main82111-52592i200101-200112

main82111-52600i199908-199912

main82111-52601i200008-200101

main82111-52602i200101-200208

main82111-52610i199908-199912

main82111-52611i199912-200101

main82111-52612i200101-200208

main82111-5C160i200208

main82111-5C170i200308

main82111-5C180i200208-200308

main82111-5C190i200308

main82111-5C200i200308

main82115-52430i200112-200208

main82115-52440i200112-200208

82210CFUSIBLE LINK

main90982-08280×2i199908-200208

main90982-08283i199908-200208

main90982-08284i200208-200308

82219CWIRE, SENSOR

main82219-52020i199908-200208

82251WIRE, SPEED SENSOR

main82251-52010i199908-200101

82821ACOVER, CONNECTOR

main82821-10050i199908-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

7 parts on this diagram · 8 diagrams in section
