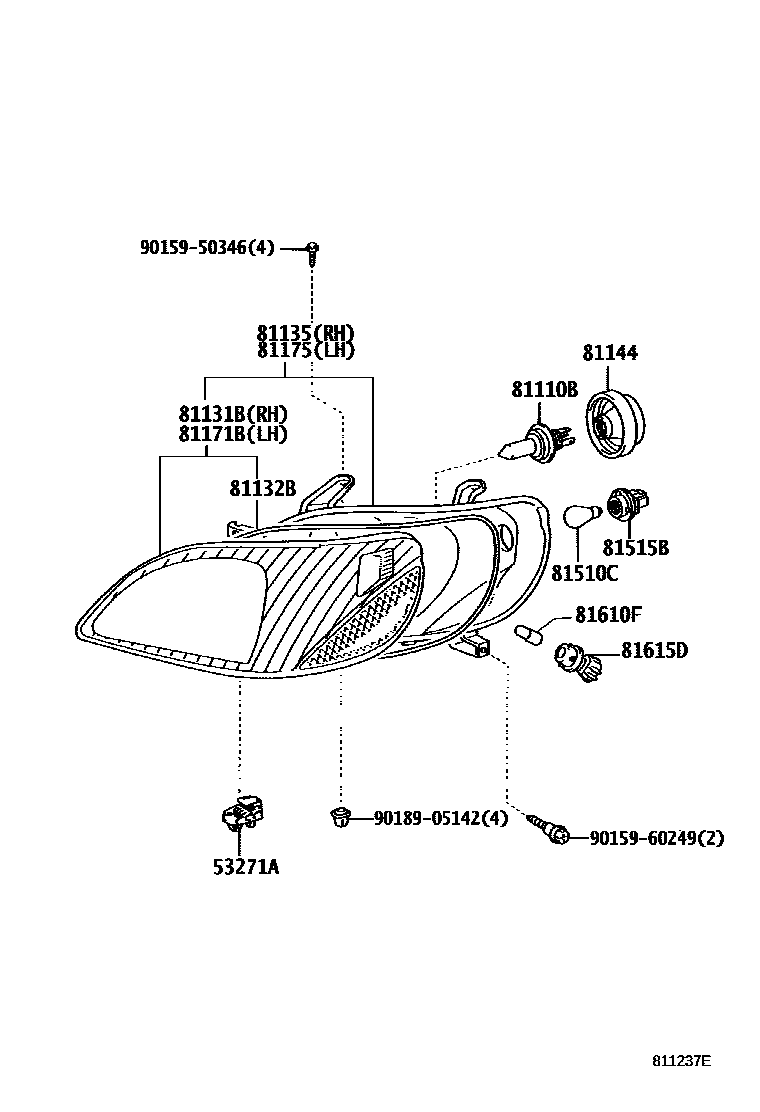

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-12060×2iNCP1#,SCP11199908-200208

main53271-52010×2iNCP1#,SCP11200211-200308

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNCP1#,SCP11200208-200511

main90981-22004×2iNCP1#,SCP11199908-200208

81131BHEAD LAMP LENS, RH

main81131-52180iNCP1#,SCP11199908-200208

81132BGASKET, HEADLAMP LENS

main81132-52180×2iNCP1#,SCP11199908-200208

81135UNIT ASSY, HEADLAMP, RH

main81130-52180iNCP1#,SCP11199908-200208

main81130-52290iNCP1#,SCP11200208-200308

81144COVER, HEADLAMP, NO.1

main90075-65002×2iNCP1#,SCP11199908-200208

81171BHEAD LAMP LENS, LH

main81171-52180iNCP1#,SCP11199908-200208

81175UNIT ASSY, HEADLAMP, LH

main81170-52180iNCP1#,SCP11199908-200208

main81170-52290iNCP1#,SCP11200208-200308

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iNCP1#,SCP11199908-200208

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNCP1#,SCP11199908-200208

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP1#,SCP11199908-200208

81615DSOCKET, CLEARANCE LAMP

main90075-60001×2iNCP1#,SCP11199908-200208

main90075-60046×2iNCP1#,SCP11200208-200505

main90075-60077×2iNCP1#,SCP11200506-200512

9015950346

main90159-50346

9015960249

main90159-60249

9018905142

main90189-05142

15 parts on this diagram · 2 diagrams in section
