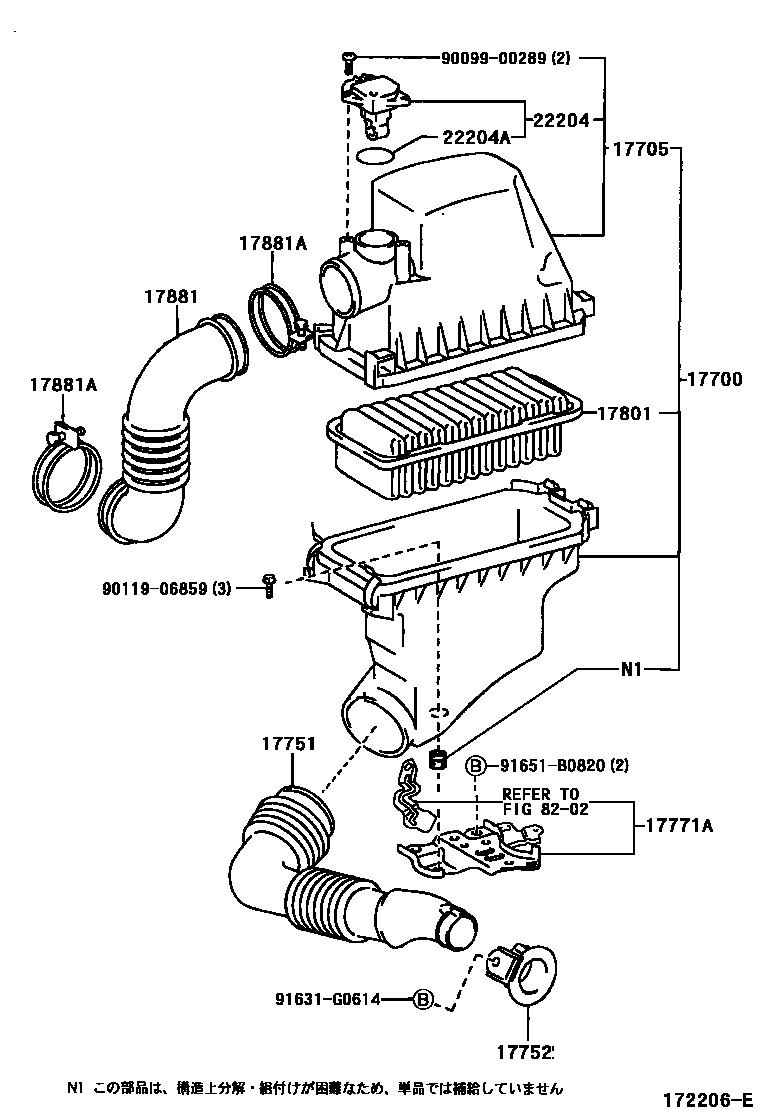

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-21050i1NZFE,2NZFE..NCP1#200208-200308

main17700-23080i1SZFE..SCP11199908-199909

main17700-23081i1SZFE..SCP11200208-200408

main17700-23082i1SZFE..SCP11200408

17705CAP SUB-ASSY, AIR CLEANER

main17705-21030i1NZFE,2NZFE..NCP1#200208-200307

main17705-21031i1NZFE,2NZFE..NCP1#..ATM;1NZFE,2NZFE..NCP1#..MTM..F200308

main17705-23060i1SZFE..SCP11199908-200208

17751INLET, AIR CLEANER, NO.1

main17751-21030i2NZFE..NCP16..ATM;2NZFE..NCP16..MTM..F200308

main17751-21040i1NZFE..NCP12..ATM;1NZFE..NCP12..MTM..F200308

main17751-23030i1SZFE..SCP11199908-200208

17752INLET, AIR CLEANER, NO.2

main17752-21020i1NZFE..NCP12199908-200208

main17752-23010i1SZFE..SCP11; 2NZFE..NCP16199908-200208

17771ABRACKET, AIR CLEANER

main17771-21010i1NZFE,2NZFE..NCP1#199908-200208

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-21030i1NZFE,2NZFE..NCP1#..ATM;1NZFE,2NZFE..NCP1#..MTM..F200308

main17801-23030i1SZFE..SCP11199908-200208

17881HOSE, AIR CLEANER, NO.1

main17880-21010i1NZFE,2NZFE..NCP1#199908-200208

main17880-21050i2NZFE..NCP16200208-200308

main17880-21060i1NZFE..NCP12..ATM;1NZFE..NCP12..MTM..F200308

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690×2i1NZFE,2NZFE..NCP1#199908-200208

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0C020i1SZFE..SCP11200402

main22204-22010i1NZFE,2NZFE..NCP1#; 1SZFE..SCP11199908-200208

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1NZFE,2NZFE..NCP1#; 1SZFE..SCP11199908-200208

8202WIRING & CLAMP

→ Go to FIG 82-02

9009900289

main90099-00289

9011906859

main90119-06859

91631G0614

main91631-G0614

91651B0820

main91651-B0820

15 parts on this diagram · 2 diagrams in section
