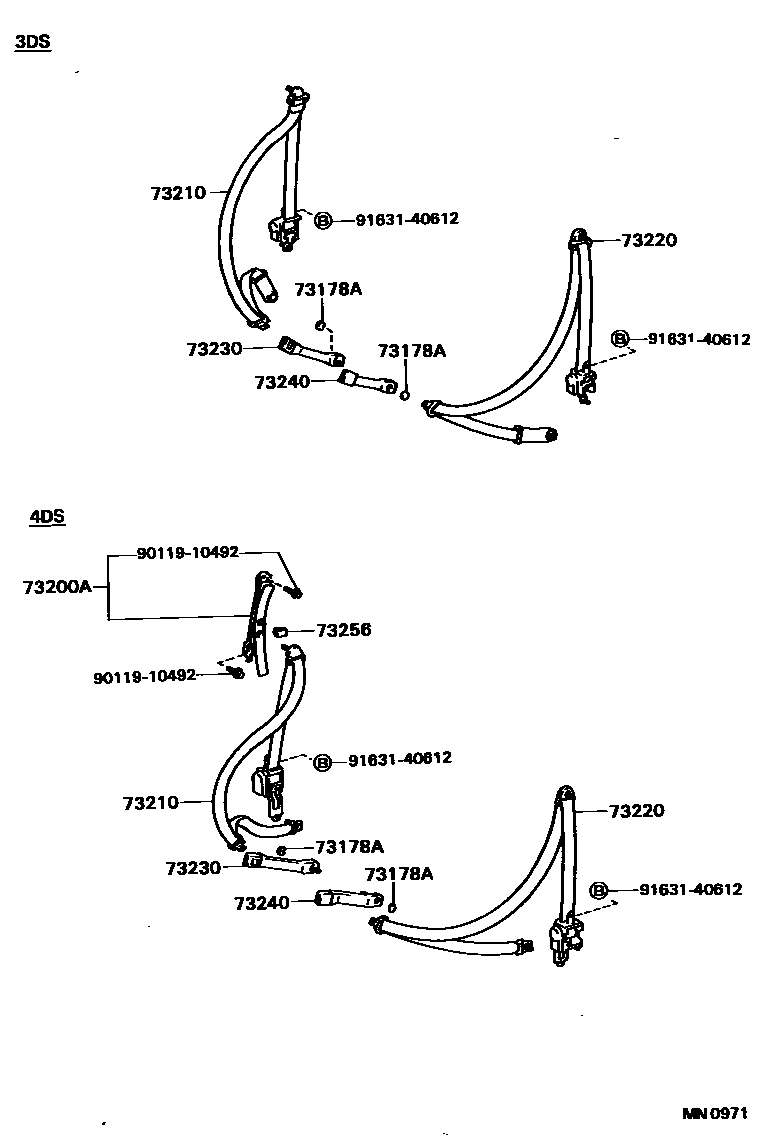

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1 0003 1 0004 1

73178ACAP, SEAT BELT ANCHOR COVER

main73178-16010-07×2iEL4#,NL40..AVE,AX,AXX,JOI,MOA,SOP,SX,SZ,VE,VIT,VITX,VITZ,VS,VX,VZ199009-199208

SPRUCE,TRIM6#

main73178-16010-11×2iEL4#,NL40199009-199208

BLACK,TRIM2#

main73178-16010-30×2iEL4#,NL40199009-199208

GRAYISH BLUE,TRIM8#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-16010-01×2iEL4#,NL40..4DS199009-199208

BLACK,TRIM2#

main73200-16010-04×2iEL4#,NL40..4DS199009-199208

GRAYISH BLUE,TRIM8#

main73200-16010-07×2iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199208

SPRUCE,TRIM6#

main73200-16011-22×2iEL4#,NL40..4DS199208-199402

BLACK,TRIM2#

main73200-16011-G0×2iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199402

SPRUCE,TRIM6#

main73200-16011-W4×2iEL4#,NL40..4DS199208-199402

EISEN BLUE,TRIM8#

main73200-16012-22×2iEL4#,NL40..4DS199402-199409

BLACK,TRIM2#

main73200-16012-G0×2iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199402-199409

DK.SPRUCE GRAY,TRIM6#

main73200-16012-W4×2iEL4#,NL40..4DS199402-199409

EISEN BLUE,TRIM8#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-16420-01iEL4#,NL40..3DS199009-199202

BLACK,TRIM2#

main73210-16420-04iEL4#,NL40..3DS199009-199202

GRAYISH BLUE,TRIM8#

main73210-16420-07iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199009-199202

SPRUCE,TRIM6#

main73210-16421-C0iEL4#,NL40..3DS199202-199208

BLACK,TRIM2#

main73210-16421-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199202-199208

SPRUCE,TRIM6#

main73210-16421-J0iEL4#,NL40..3DS199202-199208

GRAYISH BLUE,TRIM8#

main73210-16440-01iEL4#,NL40..4DS199009-199106

BLACK,TRIM2#

main73210-16440-04iEL4#,NL40..4DS199009-199106

GRAYISH BLUE,TRIM8#

main73210-16440-07iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199106

SPRUCE,TRIM6#

main73210-16441-C0iEL4#,NL40..4DS199106-199208

BLACK,TRIM2#

main73210-16441-G1iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199106-199208

SPRUCE,TRIM6#

main73210-16441-J0iEL4#,NL40..4DS199106-199208

GRAYISH BLUE,TRIM8#

main73210-16490-C0iEL4#,NL40..3DS199208-199409

BLACK,TRIM2#

main73210-16490-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199208-199409

SPRUCE,TRIM6#

main73210-16490-J0iEL4#,NL40..3DS199208-199409

EISEN BLUE,TRIM8#

main73210-16520-C0iEL4#,NL40..4DS199208-199309

BLACK,TRIM2#

main73210-16520-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199309

SPRUCE,TRIM6#

main73210-16520-J0iEL4#,NL40..4DS199208-199309

EISEN BLUE,TRIM8#

main73210-16521-C0iEL4#,NL40..4DS199309-199406

BLACK,TRIM2#

main73210-16521-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199309-199406

SPRUCE,TRIM6#

main73210-16521-J0iEL4#,NL40..4DS199309-199406

EISEN BLUE,TRIM8#

main73210-16522-C0iEL4#,NL40..4DS199406-199409

BLACK,TRIM2#

main73210-16522-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199406-199409

SPRUCE,TRIM6#

main73210-16522-J0iEL4#,NL40..4DS199406-199409

EISEN BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-16370-01iEL4#,NL40..3DS199009-199111

BLACK,TRIM2#

main73220-16370-04iEL4#,NL40..3DS199009-199111

GRAYISH BLUE,TRIM8#

main73220-16370-07iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199009-199111

SPRUCE,TRIM6#

main73220-16371-C0iEL4#,NL40..3DS199111-199208

BLACK,TRIM2#

main73220-16371-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199111-199208

SPRUCE,TRIM6#

main73220-16371-J0iEL4#,NL40..3DS199111-199208

GRAYISH BLUE,TRIM8#

main73220-16390-01iEL4#,NL40..4DS199009-199106

BLACK,TRIM2#

main73220-16390-04iEL4#,NL40..4DS199009-199106

GRAYISH BLUE,TRIM8#

main73220-16390-07iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199106

SPRUCE,TRIM6#

main73220-16391-C0iEL4#,NL40..4DS199106-199208

BLACK,TRIM2#

main73220-16391-G1iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199106-199208

SPRUCE,TRIM6#

main73220-16391-J0iEL4#,NL40..4DS199106-199208

GRAYISH BLUE,TRIM8#

main73220-16431-C0iEL4#,NL40..3DS199208-199409

BLACK,TRIM2#

main73220-16431-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199208-199409

SPRUCE,TRIM6#

main73220-16431-J0iEL4#,NL40..3DS199208-199409

EISEN BLUE,TRIM8#

main73220-16450-C0iEL4#,NL40..4DS199208-199309

BLACK,TRIM2#

main73220-16450-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199309

SPRUCE,TRIM6#

main73220-16450-J0iEL4#,NL40..4DS199208-199309

EISEN BLUE,TRIM8#

main73220-16451-C0iEL4#,NL40..4DS199309-199406

BLACK,TRIM2#

main73220-16451-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199309-199406

SPRUCE,TRIM6#

main73220-16451-J0iEL4#,NL40..4DS199309-199406

EISEN BLUE,TRIM8#

main73220-16452-C0iEL4#,NL40..4DS199406-199409

BLACK,TRIM2#

main73220-16452-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199406-199409

SPRUCE,TRIM6#

main73220-16452-J0iEL4#,NL40..4DS199406-199409

EISEN BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-16220-01iEL41,43,NL40..3DS199009-199208

BLACK,TRIM2#

main73230-16220-04iEL41,43,NL40..3DS199009-199208

GRAYISH BLUE,TRIM8#

main73230-16220-07iEL41,43,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199009-199208

SPRUCE,TRIM6#

main73230-16250-01iEL45..3DS199009-199208

BLACK,TRIM2#

main73230-16250-04iEL45..3DS199009-199208

GRAYISH BLUE,TRIM8#

main73230-16250-07iEL45..3DS199009-199208

SPRUCE,TRIM6#

main73230-16260-01iEL41,43,NL40..4DS199009-199010

BLACK,TRIM2#

main73230-16260-04iEL41,43,NL40..4DS199009-199010

GRAYISH BLUE,TRIM8#

main73230-16260-07iEL41,43,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199010

SPRUCE,TRIM6#

main73230-16261-01iEL41,43,NL40..4DS199010-199208

BLACK,TRIM2#

main73230-16261-04iEL41,43,NL40..4DS199010-199208

GRAYISH BLUE,TRIM8#

main73230-16261-07iEL41,43,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199010-199208

SPRUCE,TRIM6#

main73230-16270-01iEL45..4DS199009-199010

BLACK,TRIM2#

main73230-16270-04iEL45..4DS199009-199010

GRAYISH BLUE,TRIM8#

main73230-16270-07iEL45..4DS199009-199010

SPRUCE,TRIM6#

main73230-16271-01iEL45..4DS199010-199208

BLACK,TRIM2#

main73230-16271-04iEL45..4DS199010-199208

GRAYISH BLUE,TRIM8#

main73230-16271-07iEL45..4DS199010-199208

SPRUCE,TRIM6#

main73230-16320-C0iEL4#,NL40..3DS199208-199409

BLACK,TRIM2#

main73230-16320-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199208-199409

SPRUCE,TRIM6#

main73230-16320-J0iEL4#,NL40..3DS199208-199409

EISEN BLUE,TRIM8#

main73230-16341-C0iEL4#,NL40..4DS199208-199405

BLACK,TRIM2#

main73230-16341-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199405

SPRUCE,TRIM6#

main73230-16341-J0iEL4#,NL40..4DS199208-199405

EISEN BLUE,TRIM8#

main73230-16342-C0iEL4#,NL40..4DS199405-199409

BLACK,TRIM2#

main73230-16342-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199405-199409

DK.SPRUCE GRAY,TRIM6#

main73230-16342-J0iEL4#,NL40..4DS199405-199409

EISEN BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-16220-01iEL41,43,NL40..3DS199009-199208

BLACK,TRIM2#

main73230-16220-04iEL41,43,NL40..3DS199009-199208

GRAYISH BLUE,TRIM8#

main73230-16220-07iEL41,43,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199009-199208

SPRUCE,TRIM6#

main73230-16250-01iEL45..3DS199009-199208

BLACK,TRIM2#

main73230-16250-04iEL45..3DS199009-199208

GRAYISH BLUE,TRIM8#

main73230-16250-07iEL45..3DS199009-199208

SPRUCE,TRIM6#

main73230-16260-01iEL41,43,NL40..4DS199009-199010

BLACK,TRIM2#

main73230-16260-04iEL41,43,NL40..4DS199009-199010

GRAYISH BLUE,TRIM8#

main73230-16260-07iEL41,43,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199010

SPRUCE,TRIM6#

main73230-16261-01iEL41,43,NL40..4DS199010-199208

BLACK,TRIM2#

main73230-16261-04iEL41,43,NL40..4DS199010-199208

GRAYISH BLUE,TRIM8#

main73230-16261-07iEL41,43,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199010-199208

SPRUCE,TRIM6#

main73230-16270-01iEL45..4DS199009-199010

BLACK,TRIM2#

main73230-16270-04iEL45..4DS199009-199010

GRAYISH BLUE,TRIM8#

main73230-16270-07iEL45..4DS199009-199010

SPRUCE,TRIM6#

main73230-16271-01iEL45..4DS199010-199208

BLACK,TRIM2#

main73230-16271-04iEL45..4DS199010-199208

GRAYISH BLUE,TRIM8#

main73230-16271-07iEL45..4DS199010-199208

SPRUCE,TRIM6#

main73230-16350-C0iEL4#,NL40..4DS199304-199405

BLACK,TRIM2#

main73230-16350-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199304-199405

SPRUCE,TRIM6#

main73230-16350-J0iEL4#,NL40..4DS199304-199405

EISEN BLUE,TRIM8#

main73230-16351-C0iEL4#,NL40..4DS199405-199409

BLACK,TRIM2#

main73230-16351-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199405-199409

DK.SPRUCE GRAY,TRIM6#

main73230-16351-J0iEL4#,NL40..4DS199405-199409

EISEN BLUE,TRIM8#

main73230-33061-C0iEL4#,NL40..4DS199208-199304

BLACK,TRIM2#

main73230-33061-G0iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199304

SPRUCE,TRIM6#

main73230-33061-J1iEL4#,NL40..4DS199208-199304

EISEN BLUE,TRIM8#

main73240-16160-C0iEL4#,NL40..3DS199208-199409

BLACK,TRIM2#

main73240-16160-G0iEL4#,NL40..3DS..(AVE,JOI,MOA,SOP,SX,SZ,VS,VZ)199208-199409

SPRUCE,TRIM6#

main73240-16160-J0iEL4#,NL40..3DS199208-199409

EISEN BLUE,TRIM8#

73256KNOB, SHOULDER BELT ANCHOR ADJUST

main73256-16010-01×2iEL4#,NL40..4DS199009-199208

BLACK,TRIM2#

main73256-16010-04×2iEL4#,NL40..4DS199009-199208

GRAYISH BLUE,TRIM8#

main73256-16010-07×2iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199009-199208

SPRUCE,TRIM6#

main73256-16010-22×2iEL4#,NL40..4DS199208-199409

BLACK,TRIM2#

main73256-16010-G0×2iEL4#,NL40..4DS..(AVE,AX,AXX,JOI,VE,VIT,VITX,VITZ,VX,VZ)199208-199409

SPRUCE,TRIM6#

main73256-16010-W4×2iEL4#,NL40..4DS199208-199409

EISEN BLUE,TRIM8#

9011910492

main90119-10492

9163140612

main91631-40612

9 parts on this diagram · 4 diagrams in section
