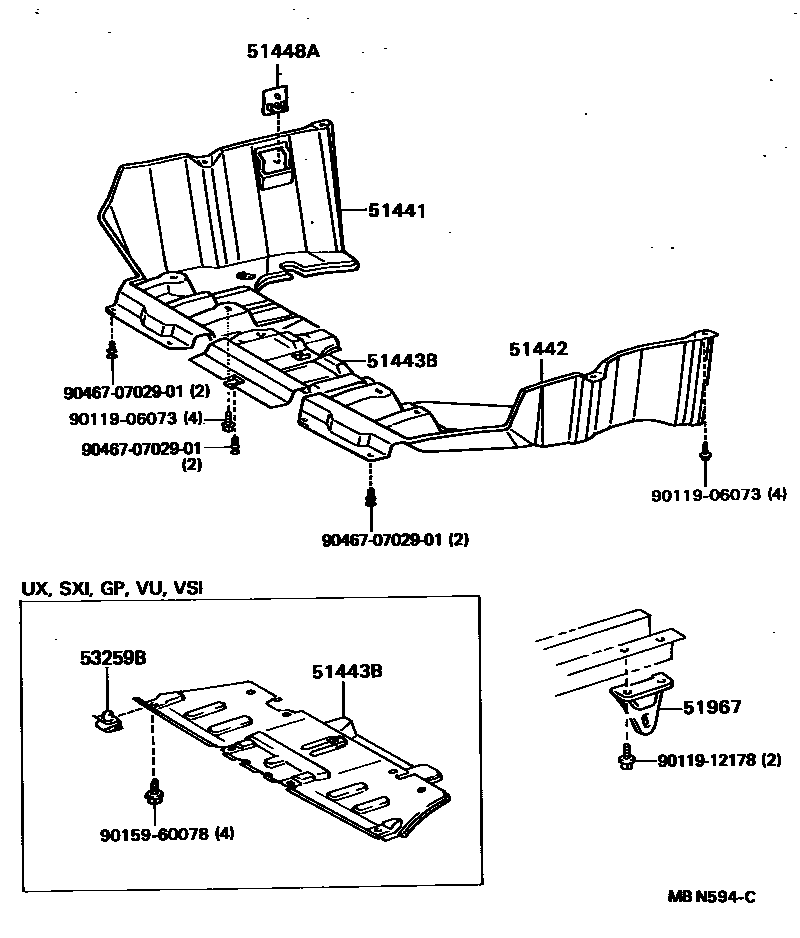

SUSPENSION CROSSMEMBER & UNDER COVER

51441COVER, ENGINE UNDER, NO.1

main51441-10090iEL31..GP,SXI,UX,VSI,VU198805-199009

main51441-16030iEL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX198805-199009

51442COVER, ENGINE UNDER, NO.2

main51442-10070iEL31..5F..(GP,SXI,UX,VSI,VU)198805-199009

main51442-10080iEL31..4FC..(GP,SXI,UX,VSI,VU)198805-199009

main51442-16020iEL3#,NL30..MTM..(CUT,EX,GX,SOP,TX,VC,VL,VX)198805-199009

main51442-16030iEL3#,NL30..ATM..(CUT,EX,GX,SOP,TX,VC,VL,VX)198805-199009

51443BCOVER, ENGINE UNDER, NO.3

main51443-16020iEL30198805-199009

main51443-16040iEL31..GP,SXI,UX,VSI,VU198806-199009

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20010iEL3#,NL30198805-199009

51967HOOK, TRANSPORT, REAR

main51968-16080iEL3#,NL30..CBR,EFI,TD198805-199009

main51968-16090iEL31..TBO198805-199009

53259BCRIP(FOR ENGINE UNDER COVER)

main53259-16010iEL31..GP,SXI,UX,VSI,VU198806-199009

9011906073

main90119-06073

9011912178

main90119-12178

9015960078

main90159-60078

904670702901

main90467-0702901

10 parts on this diagram · 1 diagram in section
