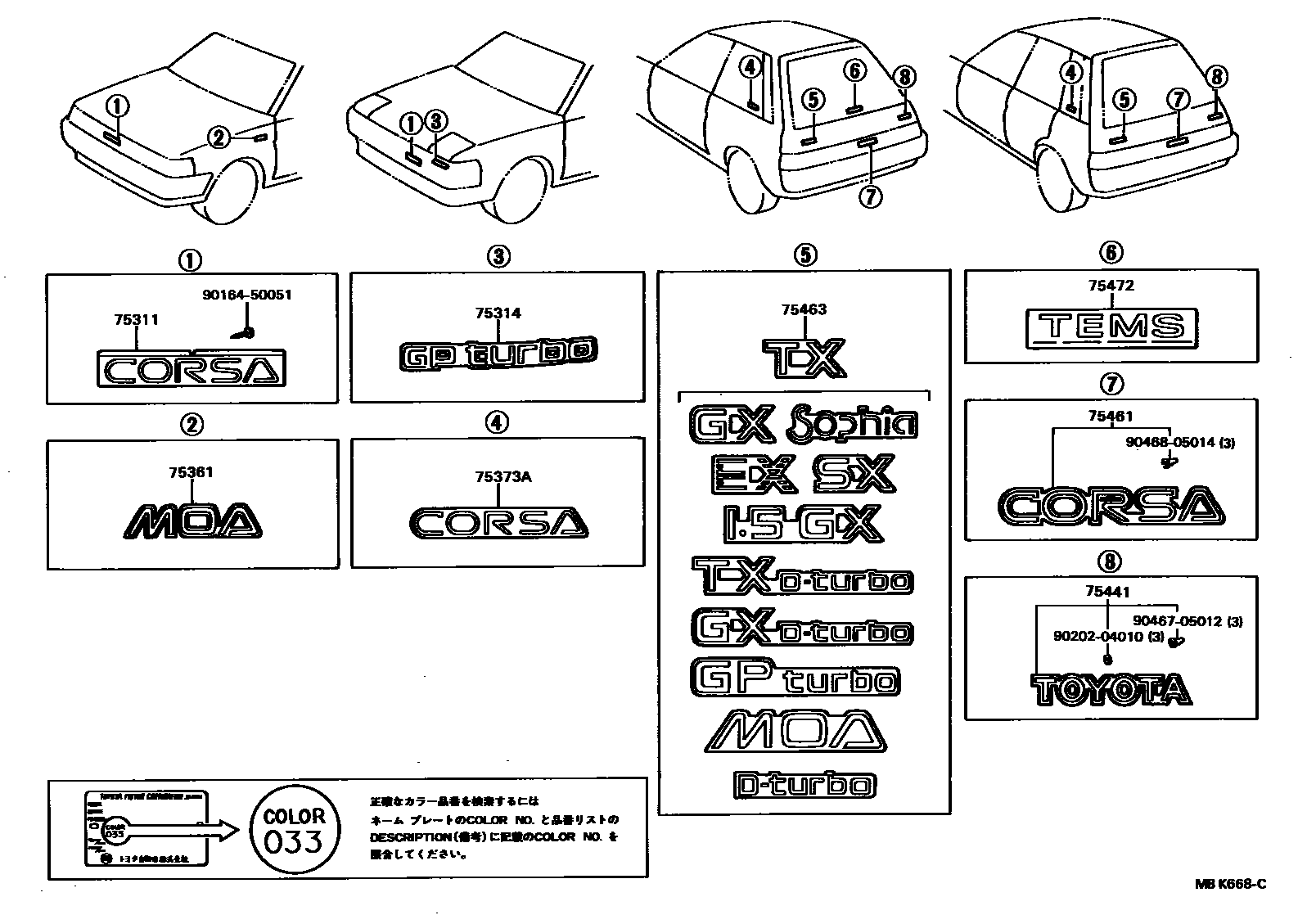

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-16250iEL31..SX;EL31..CRS..5F..TBO198605-198805

CORSA

main75311-16260iEL31..VS;EL31..TER..5F..TBO198605-198805

TERCEL

main75311-16280iEL3#,NL30..EX,GX,SOP,TX198605-198805

CORSA

main75311-16290iEL3#,NL30..CUT,VC,VL,VX198605-198805

TERCEL

75314EMBLEM, FRONT BUMPER

main75314-16011-03iEL31..TBO198609-198805

GP TURBO,DARK SILVER,DK SILVER,041 ,22B; GP TURBO,DARK SILVER,DK SILVER,24B

main75314-16011-13iEL31..TBO198609-198805

GP TURBO,SILVER,SILVER,165 ,3E6 ,8D6

75361PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)

main75361-16070-02×2iEL30..VC198611-198805

main75361-16070-03×2iEL30..VC198611-198805

main75361-16080-02×2iEL30..TX198611-198805

main75361-16080-03×2iEL30..TX198611-198805

75373APLATE, QUARTER WINDOW MARK

main75373-16030×2iEL31..CRS..CBR;EL31..CRS..5F..TBO;EL30,NL30..GX,SOP,TX198605-198805

main75373-16050×2iEL31..TER..CBR;EL31..TER..5F..TBO;EL30,NL30..CUT,VC,VL198605-198805

75441PLATE, REAR NAME, NO.1

main75441-16230iEL3#,NL30198605-198805

75461PLATE, REAR NAME, NO.2 (MODEL MARK)

main75461-16040iEL3#,NL30..VC,VL198605-198702

main75461-16041iEL3#,NL30..VC,VL198702-198805

TERCEL

main75461-16050iEL3#,NL30..GX,TX198605-198805

75463PLATE, REAR NAME, NO.4 (GRADE MARK)

main75444-16040iEL30..TX198605-198805

main75444-16050iEL31,NL30..EX198605-198805

main75444-16060iEL30..SOP198605-198805

main75444-16070iEL30..GX198605-198805

main75444-16080iEL31..VX198605-198805

main75444-16090iEL30..CUT198605-198805

main75444-16100iEL30..VL198605-198805

main75444-16110iEL30..VC198605-198805

main75444-16140iEL31..VL198605-198805

main75444-16150iEL31..GX198605-198805

main75444-16160iNL30..TX198605-198805

main75444-16180iNL30..VC198605-198805

main75444-16190iNL30..VL198605-198805

main75444-16200iNL30..GX198605-198805

main75444-16220iEL31..VS198605-198805

main75444-16230iEL31..SX198605-198805

main75444-16240iEL31..TBO198609-198805

main75444-16250iEL30..TX198611-198805

main75444-16260iEL30..VC198611-198805

main75444-16290iNL30..VX198702-198805

main75444-16300iNL30..EX198702-198805

75472PLATE, REAR WINDOW NAME

main74542-16050iEL31..TBO198609-198805

9016450051

main90164-50051

9020204010

main90202-04010

9046705012

main90467-05012

9046805014

main90468-05014

12 parts on this diagram · 2 diagrams in section
