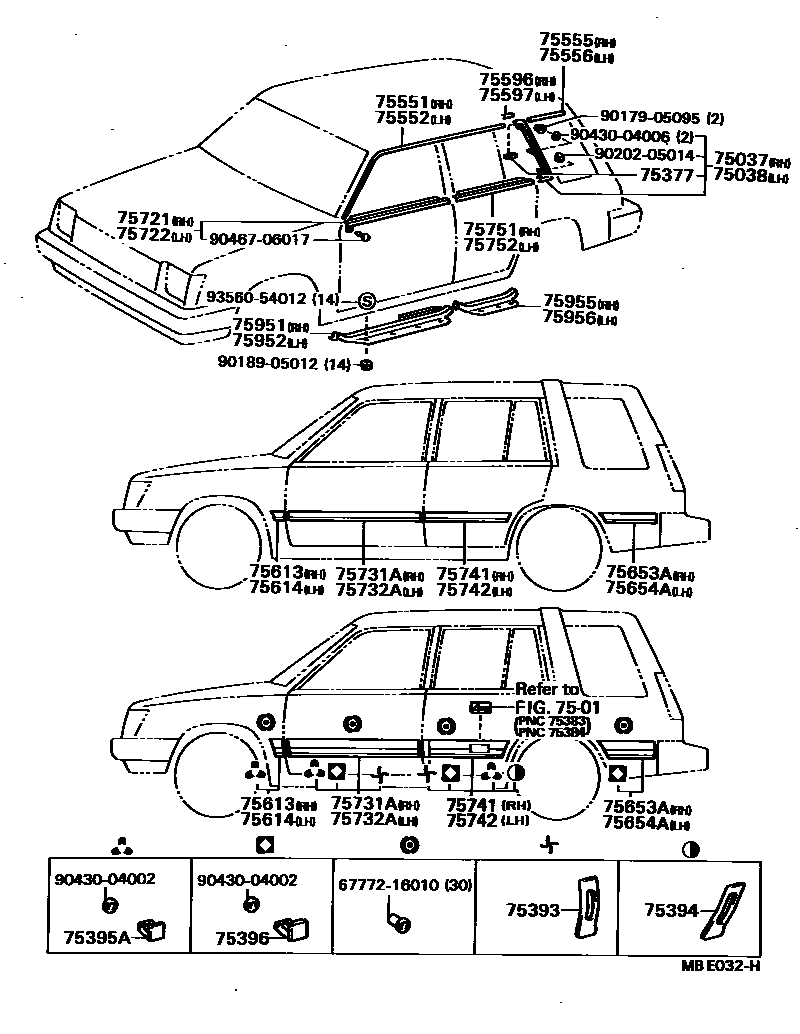

SIDE MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

75037ORNAMENT SUB-ASSY, QUARTER PANEL, RH

main75037-16010iAL25198208-198801

75038ORNAMENT SUB-ASSY, QUARTER PANEL, LH

main75038-16010iAL25198208-198801

75377SEAL, QUARTER PANEL ORNAMENT

main75377-16010×2iAL25198208-198801

75393RETAINER, OUTSIDE MOULDING, NO.2

main75393-16010×6iAL25..AV1198304-198605

RV-SPECIAL

75394RETAINER, OUTSIDE MOULDING, NO.3

main75394-16010iAL25..AV2198208-198605

RH

main75395-16010iAL25..AV2198208-198605

LH

75395ACLIP, OUTSIDE MOULDING, NO.1

main75397-16010×8iAL25..AV1; AL25..AV2198408-198605

RV-SPECIAL

75396CLIP, OUTSIDE MOULDING, NO.2

main75396-16010×30iAL25..AV2198208-198408

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-16090iAL25198208-198801

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-16090iAL25198208-198801

75555MOULDING, ROOF DRIP SIDE FINISH, REAR RH

main75553-16040iAL25198208-198801

75556MOULDING, ROOF DRIP SIDE FINISH, REAR LH

main75554-16040iAL25198208-198801

75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH

main75596-16030iAL25198208-198801

75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH

main75596-16030iAL25198208-198801

75613MOULDING, FRONT FENDER, OUTSIDE RH

main75611-16090-01iAL25..AV1198408-198801

BLACK,BLACK

main75611-16130-01iAL25..AV1198304-198605

RV-SPECIAL,BLACK,BLACK

main75611-16130-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75611-16190iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75611-16210-01iAL25..AV1198208-198408

BLACK,BLACK

main75611-16210-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75611-16320iAL25..AV1; AL25..AV2198605-198801

BLACK; RV-SPECIAL,BLACK

main75611-16350-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75614MOULDING, FRONT FENDER, OUTSIDE LH

main75612-16080-01iAL25..AV1198408-198801

BLACK,BLACK

main75612-16120-01iAL25..AV2198208-198605

BLACK,BLACK

main75612-16120-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75612-16190-01iAL25..AV1198208-198408

BLACK,BLACK

main75612-16190-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75612-16270iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75612-16310iAL25..AV1; AL25..AV2198605-198801

BLACK; RV-SPECIAL,BLACK

main75612-16340-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75653-16040-01iAL25..AV1198408-198801

BLACK,BLACK

main75653-16050iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75653-16070iAL25..AV1; AL25..AV2198605-198801

BLACK; RV-SPECIAL,BLACK

main75653-16080-01iAL25..AV1198208-198408

BLACK,BLACK

main75653-16080-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75653-16150-01iAL25..AV1198304-198605

RV-SPECIAL,BLACK,BLACK

main75653-16150-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75653-16180-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75654-16040-01iAL25..AV1198408-198801

BLACK,BLACK

main75654-16050iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75654-16070iAL25..AV1; AL25..AV2198605-198801

BLACK; RV-SPECIAL,BLACK

main75654-16090-01iAL25..AV1198208-198408

BLACK,BLACK

main75654-16090-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75654-16150-01iAL25..AV2198208-198605

BLACK,BLACK

main75654-16150-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75654-16180-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75721MOULDING, FRONT DOOR BELT, RH

main75710-19145iAL25198208-198801

main75710-19155iAL25198305-198801

W/DOOR MIRROR

75722MOULDING, FRONT DOOR BELT, LH

main75720-19145iAL25198208-198801

main75720-19155iAL25198305-198801

W/DOOR MIRROR

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-16200-01iAL25..AV2198208-198605

BRACK,BLACK

main75731-16200-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75731-16270-01iAL25..AV1198208-198408

BRACK,BLACK

main75731-16270-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75731-16380-01iAL25..AV1198408-198801

BLACK,BLACK

main75731-16460iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75731-16520iAL25..AV1; AL25..AV2198605-198801

BRACK; RV-SPECIAL,BLACK

main75731-16580-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-16200-01iAL25..AV1198304-198605

RV-SPECIAL,BLACK,BLACK

main75732-16200-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75732-16270-01iAL25..AV1198208-198408

BRACK,BLACK

main75732-16270-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75732-16380-01iAL25..AV1198408-198801

BLACK,BLACK

main75732-16460iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75732-16520iAL25..AV1; AL25..AV2198605-198801

BLACK; RV-SPECIAL,BLACK

main75732-16580-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-16060-01iAL25..AV1198408-198801

BLACK,BLACK

main75741-16120-01iAL25..AV2198208-198605

BLACK,BLACK

main75741-16120-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75741-16200-01iAL25..AV1198208-198408

BLACK,BLACK

main75741-16200-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75741-16230iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75741-16360iAL25..AV1; AL25..AV2198605-198801

BLACK; RV-SPECIAL,BLACK

main75741-16450-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-16060-01iAL25..AV1198408-198801

BLACK,BLACK

main75742-16110-01iAL25..AV2198208-198605

BLACK,BLACK

main75742-16110-03iAL25..AV2198208-198301

DARK GRAY,GRAY

main75742-16210iAL25..AV2198511-198605

WHITE LIMITED,WHITE

main75742-16230-01iAL25..AV1198208-198408

BLACK,BLACK

main75742-16230-03iAL25..AV1198208-198301

DARK GRAY,GRAY

main75742-16350iAL25..AV1; AL25..AV2198605-198801

BLACK; RV-SPECIAL,BLACK

main75742-16440-08iAL25..AV2198609-198801

WHITE LIMITED,WHITE,WHITE

75751MOULDING, REAR DOOR BELT, RH

main75730-16020iAL25198208-198801

75752MOULDING, REAR DOOR BELT, LH

main75740-16020iAL25198208-198801

75951PLATE, FRONT DOOR SCUFF, OUTSIDE RH

main67913-16040-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main67913-16040-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main67913-16040-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main67913-16040-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main67913-16040-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main67913-16040-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

75952PLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67914-16040-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main67914-16040-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main67914-16040-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main67914-16040-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main67914-16040-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main67914-16040-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

75955PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67917-16020-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main67917-16020-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main67917-16020-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main67917-16020-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main67917-16020-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main67917-16020-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

75956PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67917-16020-01iAL25198605-198801

BLACK,BLACK,TRIM2#

main67917-16020-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main67917-16020-05iAL25..AV2198408-198605

BEIGE,BEIGE,TRIM4#

main67917-16020-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main67917-16020-13iAL25198408-198605

GRAY,GRAY,TRIM1#

main67917-16020-15iAL25..AV2198605-198801

BEIGE,DARK BEIGE,TRIM4#

6777216010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-16010

9017905095

main90179-05095

9018905012

main90189-05012

9020205014

main90202-05014

9043004002

main90430-04002

9043004006

main90430-04006

9046706017

main90467-06017

9356054012

main93560-54012

38 parts on this diagram · 1 diagram in section
