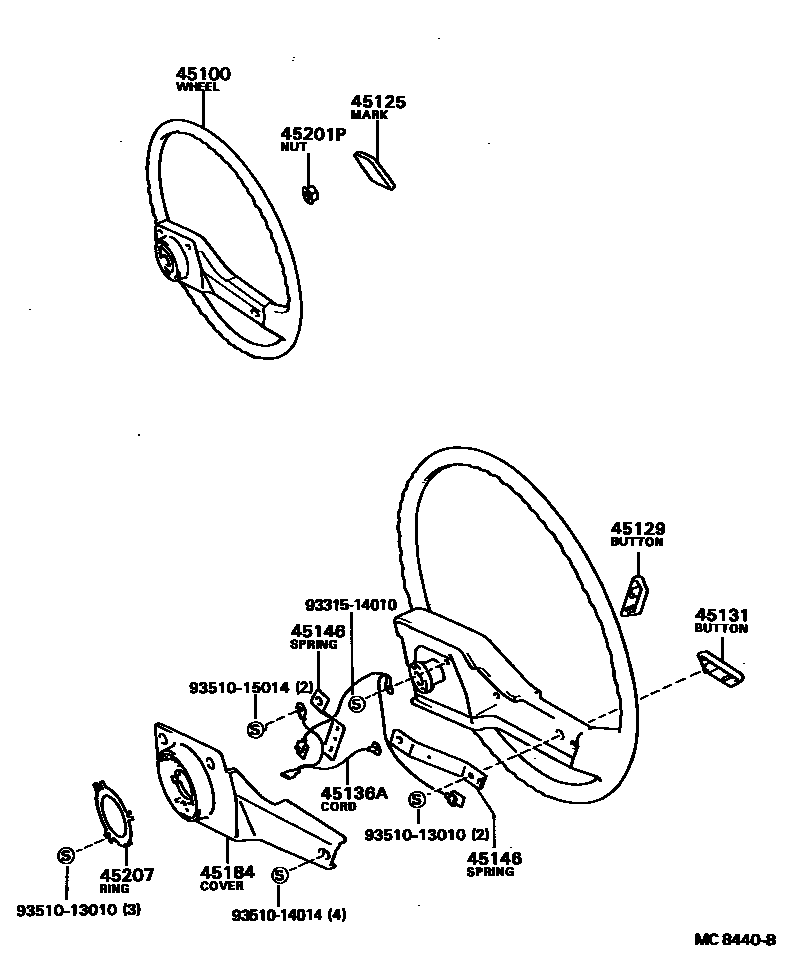

STEERING WHEEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45100WHEEL ASSY, STEERING

main45100-10250-03iAL25..AV1198408-198605

main45100-12300-01iAL25..AV2198408-198605

BLACK,BLACK,TRIM2#

main45100-16060-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main45100-16060-06iAL25198208-198408

BROWN,BROWN,TRIM4#

main45100-16120-03iAL25..6F..CBR198408-198605

GRAY,GRAY,TRIM1#

main45100-16190-01iAL25198605-198801

URETHANE,3-SPOKE,BLACK,NEW BLACK,TRIM2#

main45100-16190-05iAL25..AV2198605-198801

URETHANE,3-SPOKE,BEIGE,DARK BEIGE,TRIM4#

main45100-16200-01iAL25..AV1198605-198801

2-SPOKE,BLACK,NEW BLACK,TRIM2#

main45100-16220-01iAL25..AV2198605-198801

LEATHER,3-SPOKE,BLACK,NEW BLACK,TRIM2#

45125MARK, STEERING WHEEL PAD

main45125-16200iAL25198208-198408

main45125-16240iAL25..AV2198408-198605

main45125-16260iAL25198605-198801

3-SPOKE

main45125-16350iAL25..6F..CBR198605-198801

2-SPOKE

45129BUTTON, HORN, NO.2

main45131-16020-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main45131-16020-06iAL25198208-198408

BROWN,BROWN,TRIM4#

45131BUTTON, HORN, NO.1

main45129-16020-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main45129-16020-06iAL25198208-198408

BROWN,BROWN,TRIM4#

45136PLATE, HORN BUTTON CONTACT

main45136-12120iAL25..AV2198408-198605

45136ACORD(FOR HORN CONTACT RING)

main90945-02060iAL25198208-198408

45146SPRING, HORN BUTTON CONTACT

main45146-16020×2iAL25198208-198408

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12070-01iAL25..AV2198408-198605

BLACK,BLACK,TRIM2#

main45184-16010-03iAL25198208-198408

GRAY,GRAY,TRIM1#

main45184-16010-06iAL25198208-198408

BROWN,BROWN,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12086iAL25198208-198801

45207RING, HORN CONTACT

main45176-14050iAL25..AV2198408-198605

main45176-20030iAL25..6F..CBR198408-198605

main45176-30070iAL25198208-198408

9331514010

main93315-14010

9351013010

main93510-13010

9351014014

main93510-14014

9351015014

main93510-15014

14 parts on this diagram · 6 diagrams in section
