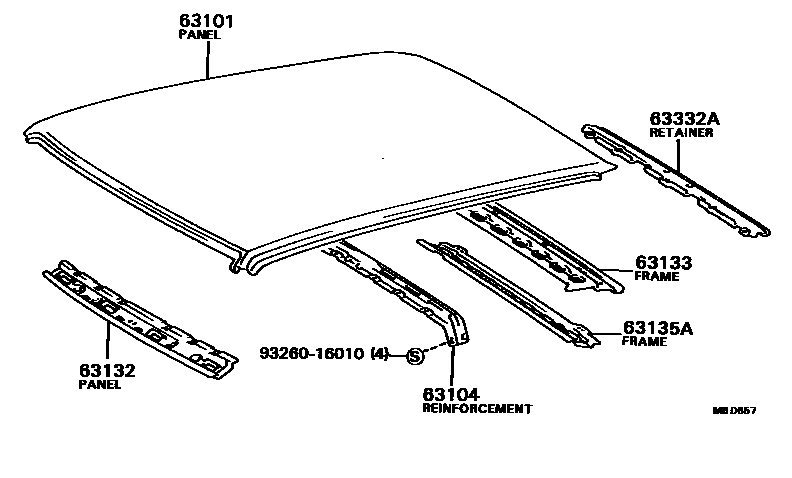

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

63101PANEL SUB-ASSY, ROOF

main63111-16080iAL2#198205-198604

main63111-16090iAL21..SE,SR198205-198604

W/SUN ROOF

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-16020iAL2#198205-198604

63132PANEL, WINDSHIELD HEADER, INNER

main63132-16020iAL2#198205-198604

63133FRAME, BACK WINDOW OPENING, UPPER

main63134-16020iAL2#198205-198510

main63134-16040iAL2#198510-198604

63135AFRAME, BACK DOOR OPENING, LOWER

main63135-16020iAL2#198205-198604

63332ARETAINER, ROOF HEADLINING, REAR

main63383-16010iAL2#198205-198604

9326016010

main93260-16010

7 parts on this diagram · 2 diagrams in section
