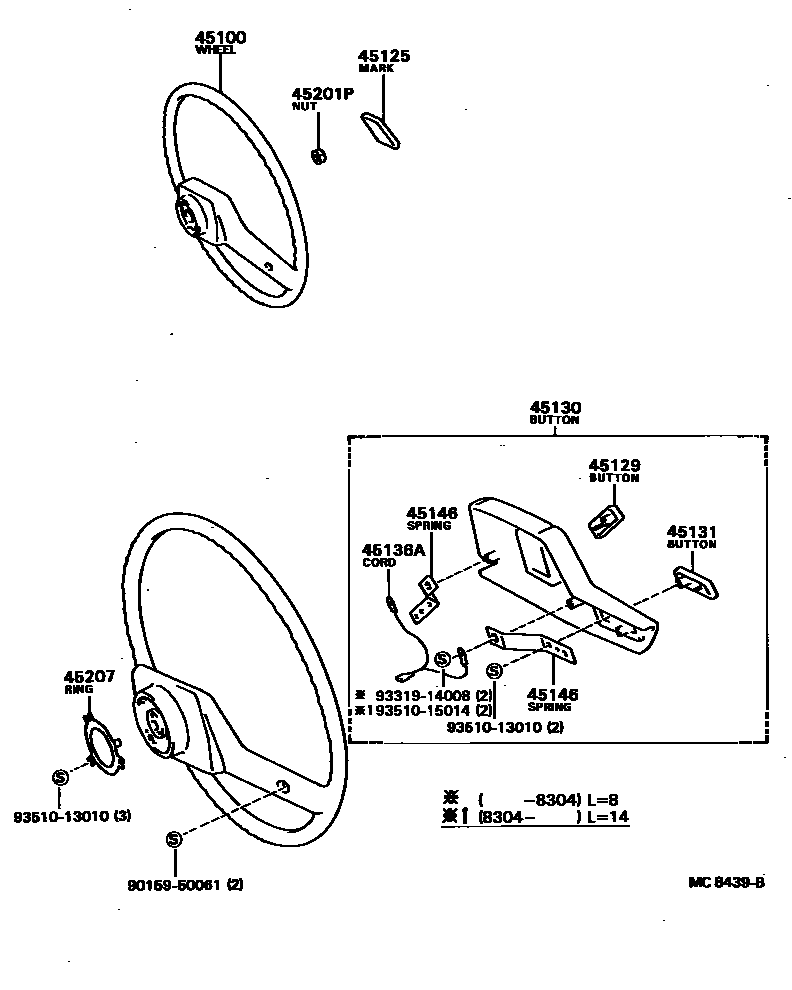

STEERING WHEEL
45100WHEEL ASSY, STEERING
BLACK,BLACK
GRAY,GRAY,TRIM1#
BLACK SR,BLACK
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
45125MARK, STEERING WHEEL PAD
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
45129BUTTON, HORN, NO.2
BLACK SR,BLACK
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
45130BUTTON ASSY, HORN
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,DARK WINE,TRIM3#
GRAY,GRAY,TRIM1#
45131BUTTON, HORN, NO.1
BLACK SR,BLACK
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
DARK WINE,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
45136PLATE, HORN BUTTON CONTACT
45136ACORD(FOR HORN CONTACT RING)
45146SPRING, HORN BUTTON CONTACT
45201PNUT, STEERING WHEEL SET
45207RING, HORN CONTACT
9015950061
main90159-50061
9331914008
main93319-14008
9351013010
main93510-13010
9351015014
main93510-15014
14 parts on this diagram · 4 diagrams in section
