POWER STEERING TUBE

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16361ABELT, V(FOR FAN & ALTERNATOR)

main99321-50985i2AU,3A#..AL2#198205-198604

main99321-51070i2AU,3A#..AL2#198205-198604

W/COOLER

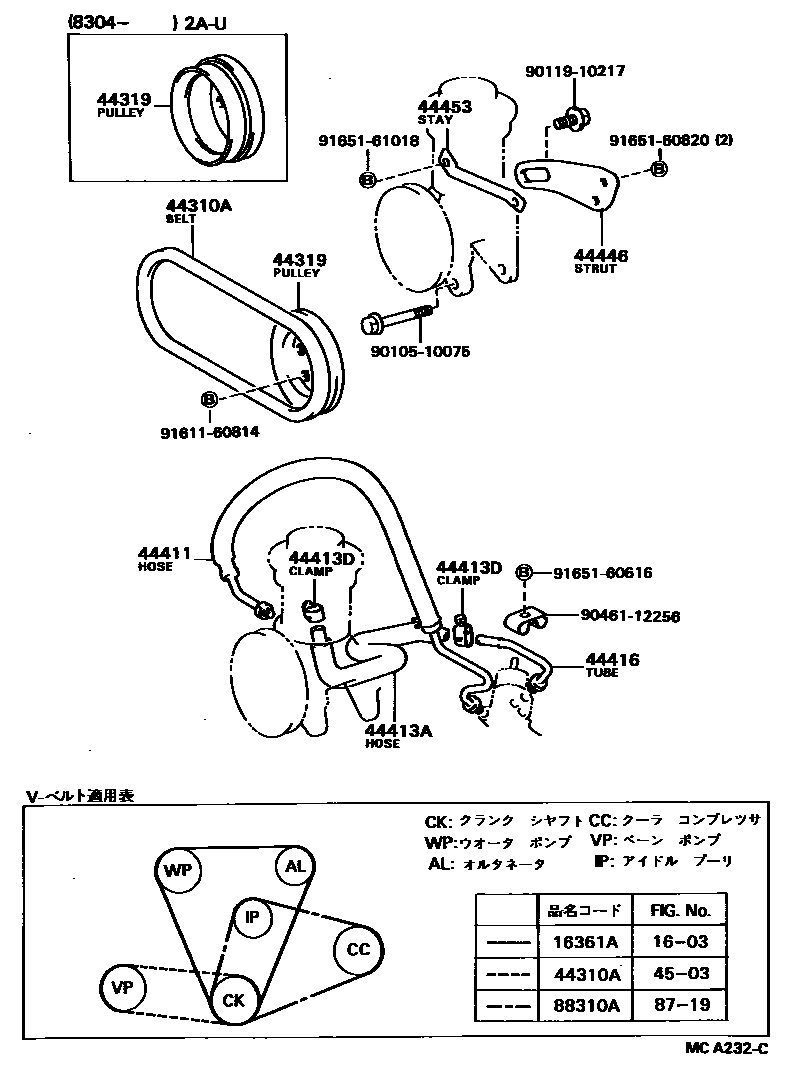

44310ABELT, V(FOR VANE PUMP)

main90916-02113iAL21..GL,SE198304-198408

main90916-02134iAL20..DLX,GL198408-198604

44319PULLEY, VANE PUMP DRIVE

main44319-12011iAL2#..GL,SE198301-198304

main44319-16010iAL20..DLX,GL198408-198604

44411HOSE, PRESSURE FEED

main44411-16010iAL21..GL,SE198205-198208

main44411-16011iAL21..GL,SE198208-198301

main44411-16012iAL21..3ASU198408-198604

main44411-16020iAL20..DLX,GL; AL21..3FC198408-198604

44413AHOSE(FOR RETURN TUBE OUTLET)

main44412-16010iAL21..GL,SE198205-198301

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iAL21..GL,SE198205-198301

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-16010iAL21..GL,SE198205-198301

44446STRUT, ADJUSTING

main44446-16010iAL21..GL,SE198205-198301

44453STAY, PUMP, FRONT

main44453-16010iAL21..GL,SE198205-198301

main44453-16011iAL2#..GL,SE198405-198408

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-50985iAL2#198205-198604

9010510075

main90105-10075

9011910217

main90119-10217

9046112256

main90461-12256

9161160814

main91611-60814

9165160616

main91651-60616

9165160820

main91651-60820

9165161018

main91651-61018

20 parts on this diagram · 1 diagram in section
