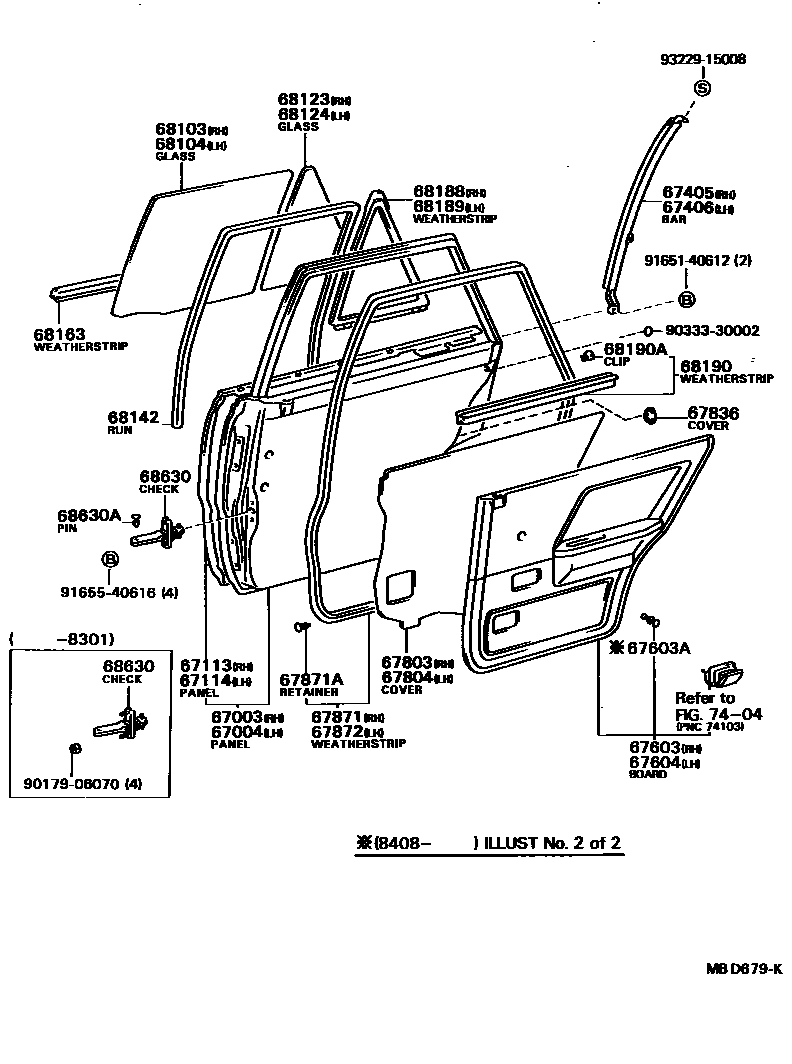

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-16040iAL20,21..5DS..(DX,EX,GX,VC,VE,VL)198205-198605

main67003-16060iAL2#..4DS198205-198910

main67003-16120iAL21..5DS..(SX,VS)198205-198605

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-16040iAL20,21..5DS..(DX,EX,GX,VC,VE,VL)198205-198605

main67004-16060iAL2#..4DS198205-198910

main67004-16120iAL21..5DS..(SX,VS)198205-198605

67113PANEL, REAR DOOR, OUTER RH

main67113-16030iAL20,21..(4DS,5DS)..(DX,EX,GX,VC,VE,VL)198205-198508

main67113-16040iAL2#..4DS,5DS198508-198910

67114PANEL, REAR DOOR, OUTER LH

main67114-16030iAL25..GX,VL198408-198508

main67114-16040iAL25198408-198508

W/*WPM

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-16020iAL20,21..5DS198205-198605

main67407-16030iAL2#..4DS198205-198910

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-16020iAL20,21..5DS198205-198605

main67408-16030iAL2#..4DS198205-198910

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-16100-01iAL20,21..DX,GX,VC,VL198605-198910

BLACK,BLACK,TRIM2#

main67630-16100-02iAL2#..(4DS,5DS)..(DX,GX,VC,VL)198205-198408

DARK WINE,DARK WINE,TRIM3#

main67630-16100-03iAL2#..(4DS,5DS)..(DX,GX,VC,VL)198205-198408

GRAY,GRAY,TRIM1#

main67630-16100-06iAL2#..(4DS,5DS)..(DX,GX,VC,VL)198205-198408

BROWN,BROWN,TRIM4#

main67630-16100-13iAL20,21..(4DS,5DS)..(DX,GX,VC,VL)198408-198605

GRAY,GRAY,TRIM1#

main67630-16100-15iAL20,21..4DS..(DX,GX,VC,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main67630-16100-25iAL20,21..DX,GX,VC,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

main67630-16110-02iAL21..(4DS,5DS)..(EX,SX,VE,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67630-16110-03iAL21..(4DS,5DS)..(EX,SX,VE,VS)198205-198408

GRAY,GRAY,TRIM1#

main67630-16110-06iAL21..(4DS,5DS)..(EX,SX,VE,VS)198205-198408

BROWN,BROWN,TRIM4#

main67630-16110-16iAL2#..5DS..VL198210-198408

CUTIE,DARK WINE & BROWN,BROWN,TRIM3#

main67630-16130-08iAL20,21..5DS..(GX,VL)198408-198605

SOPHIA OR CUTIE,IVORY,IVORY,TRIM3#

main67630-16140-03iAL21..5DS..(SX,VS)198408-198605

GRAY,GRAY,TRIM1#

main67630-16150-03iAL21,25..EX,VE198408-198605

GRAY,GRAY,TRIM1#

main67630-16150-05iAL21,25..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main67630-16170-03iAL25..GX,VL198408-198605

GRAY,GRAY,TRIM1#

main67630-16170-05iAL25..GX,VL198408-198605

BEIGE,BEIGE,TRIM4#

main67630-16260-03iAL25..GX,VL198509-198605

GX EXTRA,VL EXTRA,GRAY,GRAY,TRIM1#

main67630-16270-03iAL25..SX,VS198605-198804

GRAY,GRAY,TRIM2#

main67630-16280-03iAL21,25..EX,VE198605-198910

GRAY,GRAY,TRIM2#

main67630-16280-05iAL21,25..EX,VE198605-198910

BEIGE,BEIGE,TRIM4#

main67630-16300-03iAL25..GX,VL198605-198910

GRAY,GRAY,TRIM2#

main67630-16300-05iAL25..GX,VL198605-198910

BEIGE,BEIGE,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-12020×18iAL2#..4DS,5DS198408-198910

TYPE A

main67771-16020×18iAL2#..4DS,5DS198205-198408

main67771-23010×2iAL20,21..5DS..(GX,VL)198408-198605

SOPHIA OR CUTIE,TYPE B

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-16110-01iAL20,21..DX,GX,VC,VL198605-198910

BLACK,BLACK,TRIM2#

main67640-16110-02iAL2#..(4DS,5DS)..(DX,GX,VC,VL)198205-198408

DARK WINE,DARK WINE,TRIM3#

main67640-16110-03iAL2#..(4DS,5DS)..(DX,GX,VC,VL)198205-198408

GRAY,GRAY,TRIM1#

main67640-16110-05iAL20,21..4DS..(DX,GX,VC,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main67640-16110-06iAL2#..(4DS,5DS)..(DX,GX,VC,VL)198205-198408

BROWN,BROWN,TRIM4#

main67640-16110-13iAL20,21..(4DS,5DS)..(DX,GX,VC,VL)198408-198605

GRAY,GRAY,TRIM1#

main67640-16110-15iAL20,21..DX,GX,VC,VL198605-198910

BEIGE,DARK BEIGE,TRIM4#

main67640-16120-02iAL21..(4DS,5DS)..(EX,SX,VE,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main67640-16120-03iAL21..(4DS,5DS)..(EX,SX,VE,VS)198205-198408

GRAY,GRAY,TRIM1#

main67640-16120-06iAL21..(4DS,5DS)..(EX,SX,VE,VS)198205-198408

BROWN,BROWN,TRIM4#

main67640-16120-16iAL2#..5DS..VL198210-198408

CUTIE,DARK WINE & BROWN,BROWN,TRIM3#

main67640-16140-08iAL20,21..5DS..(GX,VL)198408-198605

SOPHIA OR CUTIE,IVORY,IVORY,TRIM3#

main67640-16150-03iAL21..5DS..(SX,VS)198408-198605

GRAY,GRAY,TRIM1#

main67640-16160-03iAL21,25..EX,VE198408-198605

GRAY,GRAY,TRIM1#

main67640-16160-05iAL21,25..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main67640-16180-03iAL25..GX,VL198408-198605

GRAY,GRAY,TRIM1#

main67640-16180-05iAL25..GX,VL198408-198605

BEIGE,BEIGE,TRIM4#

main67640-16270-03iAL25..GX,VL198509-198605

GX EXTRA,VL EXTRA,GRAY,GRAY,TRIM1#

main67640-16280-03iAL25..SX,VS198605-198804

GRAY,GRAY,TRIM2#

main67640-16290-03iAL21,25..EX,VE198605-198910

GRAY,GRAY,TRIM2#

main67640-16290-05iAL21,25..EX,VE198605-198910

BEIGE,BEIGE,TRIM4#

main67640-16310-03iAL25..GX,VL198605-198910

GRAY,GRAY,TRIM2#

main67640-16310-05iAL25..GX,VL198605-198910

BEIGE,BEIGE,TRIM4#

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-16060iAL2#..4DS,5DS198205-198910

main67841-16070iAL2#..4DS,5DS198205-198910

COLD SPEC

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67842-16020iAL2#..4DS,5DS198205-198910

main67842-16040iAL2#..4DS,5DS198205-198910

COLD SPEC

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-16010×2iAL2#..4DS,5DS198405-198910

67871WEATHERSTRIP, REAR DOOR, RH

main67871-16050iAL2#..5DS198205-198408

main67871-16060iAL2#..5DS198205-198408

COLD SPEC

main67871-16070iAL2#..4DS198205-198910

main67871-16080iAL2#..4DS198205-198910

COLD SPEC

main67871-16150iAL20,21..5DS198408-198605

main67871-16170iAL20,21..5DS198408-198605

COLD SPEC

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67868-30040×38iAL2#..4DS,5DS198205-198910

67872WEATHERSTRIP, REAR DOOR, LH

main67872-16050iAL2#..5DS198205-198408

main67872-16060iAL2#..5DS198205-198408

COLD SPEC

main67872-16070iAL2#..4DS198205-198910

main67872-16080iAL2#..4DS198205-198910

COLD SPEC

main67872-16150iAL20,21..5DS198408-198605

main67872-16170iAL20,21..5DS198408-198605

COLD SPEC

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-16030iAL20..5DS..(DX,VC)198504-198605

*TEM,T=3.5

main68113-16040iAL20,21..5DS198205-198605

*TT,T=3.5

main68113-16050iAL2#..4DS198205-198910

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-16030iAL20..5DS..(DX,VC)198504-198605

*TEM,T=3.5

main68114-16040iAL20,21..5DS198205-198605

*TT,T=3.5

main68114-16050iAL2#..4DS198205-198910

68123GLASS, REAR DOOR WINDOW, RH

main68123-16040iAL20,21..5DS198205-198605

*TT,T=3.5

main68123-16050iAL2#..4DS198205-198910

68124GLASS, REAR DOOR WINDOW, LH

main68124-16040iAL20,21..5DS198205-198605

*TT,T=3.5

main68124-16050iAL2#..4DS198205-198910

68142RUN, REAR DOOR GLASS

main68142-16020×2iAL2#..5DS198205-198408

main68142-16030×2iAL20,21..5DS198408-198605

main68142-16040×2iAL2#..4DS198205-198408

main68142-16050×2iAL2#..4DS198408-198910

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-16020iAL20,21..(4DS,5DS)..(DX,VC)198205-198910

RH

main68230-16010iAL20,21..(4DS,5DS)..(DX,VC)198205-198910

LH

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-16020iAL20,21..5DS198205-198605

main68188-16030iAL2#..4DS198205-198910

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-16020iAL20,21..5DS198205-198605

main68189-16030iAL2#..4DS198205-198910

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-16030iAL2#..4DS,5DS198205-198910

RH

main68240-16030iAL2#..4DS,5DS198205-198910

LH

68190ACLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030×8iAL2#..4DS,5DS198205-198910

68630CHECK ASSY, REAR DOOR

main68630-16020×2iAL2#..4DS,5DS198205-198910

68630APIN(FOR REAR DOOR CHECK)

main68617-12010×2iAL2#..4DS,5DS198401-198507

main68617-22010×2iAL2#..4DS,5DS198205-198401

main68617-90A00×2iAL2#..4DS,5DS198507-198910

7404ASH RECEPTACLE

→ Go to FIG 74-04

9017906070

main90179-06070

9033330002

main90333-30002

9165140612

main91651-40612

9165540616

main91655-40616

9322915008

main93229-15008

33 parts on this diagram · 2 diagrams in section
