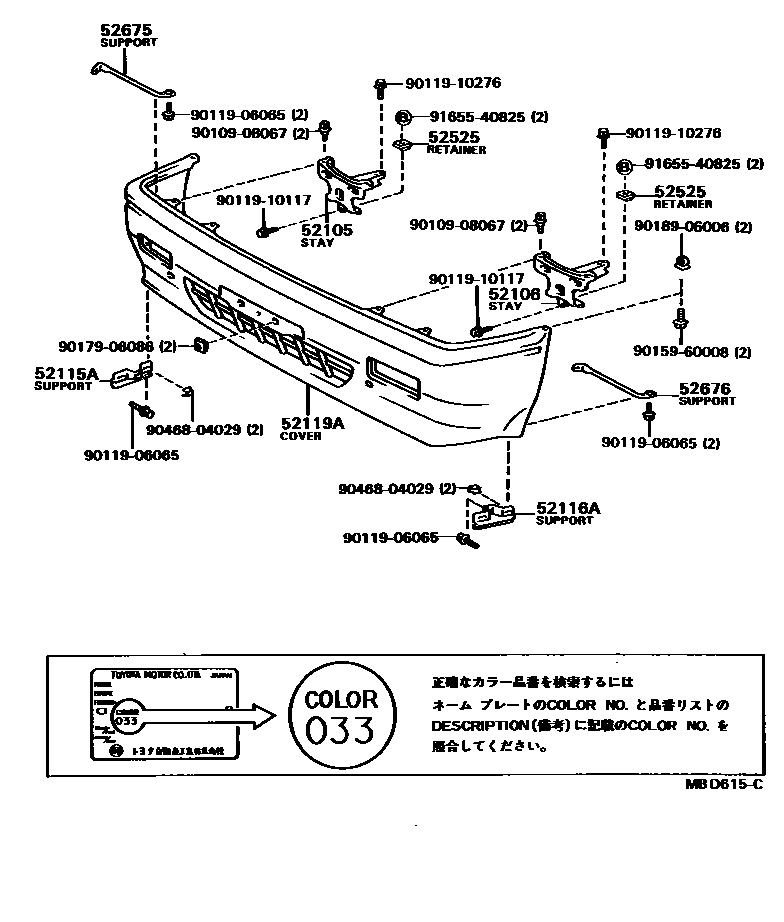

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-16050198205-198408

main52011-16051198408-198910

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52011-16050198205-198408

main52011-16051198408-198910

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-16050198205-198408

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-16050198205-198408

52119ACOVER, FRONT BUMPER

main52119-16070-03198205-198408

main52119-16070-13198205-198301

main52119-16070-23198301-198408

main52119-16080-02198308-198408

main52119-16080-03198205-198301

main52119-16080-06198205-198301

main52119-16080-13198301-198308

main52119-16080-23198308-198308

main52119-16080-33198308-198408

main52119-16130198408-198605

main52119-16140198605-198910

main52119-16150-02198605-198910

main52119-16150-04198605-198805

main52119-16150-08198605-198910

main52119-16150-13198605-198805

main52119-16150-15198605-198910

main52119-16150-23198805-198910

main52119-16170-03198408-198605

main52119-16170-05198408-198605

main52119-16180-02198512-198605

main52119-16180-03198408-198605

main52119-16180-05198408-198605

main52119-16180-08198509-198605

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52565-16020198205-198910

52675SUPPORT, FRONT BUMPER LOWER SIDE, RH

main52675-16010198205-198910

main52675-16040198408-198605

52676SUPPORT, FRONT BUMPER LOWER SIDE, LH

main52676-16010198205-198910

main52676-16040198408-198605

9010908067

main90109-08067

9011906065

main90119-06065

9011910117

main90119-10117

9011910276

main90119-10276

9015960008

main90159-60008

9017906086

main90179-06086

9018906006

main90189-06006

9046804029

main90468-04029

9165540825

main91655-40825

17 parts on this diagram · 3 diagrams in section
