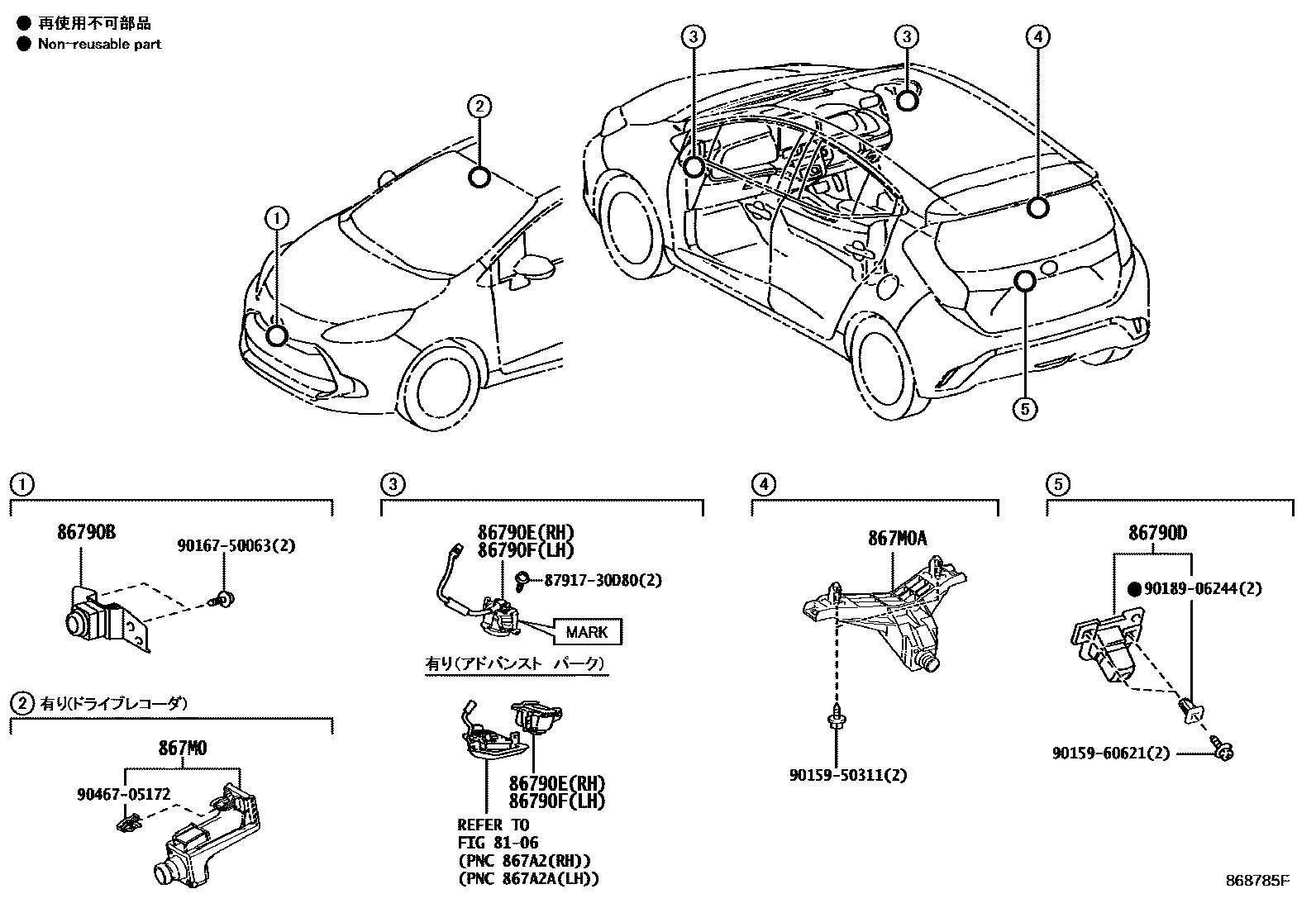

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

86790BCAMERA ASSY, TELEVISION, FR

main86790-52400iMXPK1#..B,G,X; MXPK11,16..G,Z202106-202208

main86790-52401iMXPK11,16..G,GRS,X; MXPK11,16..G,GRS,Z202208

main86790-52410iMXPK11,16202106

86790DCAMERA ASSY, TELEVISION, RR

main867B0-52040iMXPK1#..B,X; MXPK10,15; MXPK11,16..X202212-202403

main86790-52390iMXPK10,15202106-202212

main86790-52490iMXPK11,16..G,GRS,X202106-202403

main86790-52491iMXPK11,16..G,GRS,X202404

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-10050iMXPK1#..B,G,X; MXPK11,16..G,Z202106-202208

main86790-10051iMXPK11,16..G,GRS,X; MXPK11,16..G,GRS,Z202208

main86795-K0020iMXPK10,15202106-202212

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-10040iMXPK1#..B,G,X; MXPK11,16..G,Z202106-202208

main86790-10041iMXPK10,15202208-202212

main86795-K0010iMXPK10,15202106-202212

867M0CAMERA ASSY, DRIVE RECORDER, FRONT

main867M0-0W010iMXPK10,15202212-202403

867M0ACAMERA ASSY, DRIVE RECORDER, REAR

main867M0-0W030iMXPK10,15202212-202403

8791730D80ESCUTCHEON

main87917-30D80

9015950311

main90159-50311

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9046705172

main90467-05172

13 parts on this diagram · 2 diagrams in section
