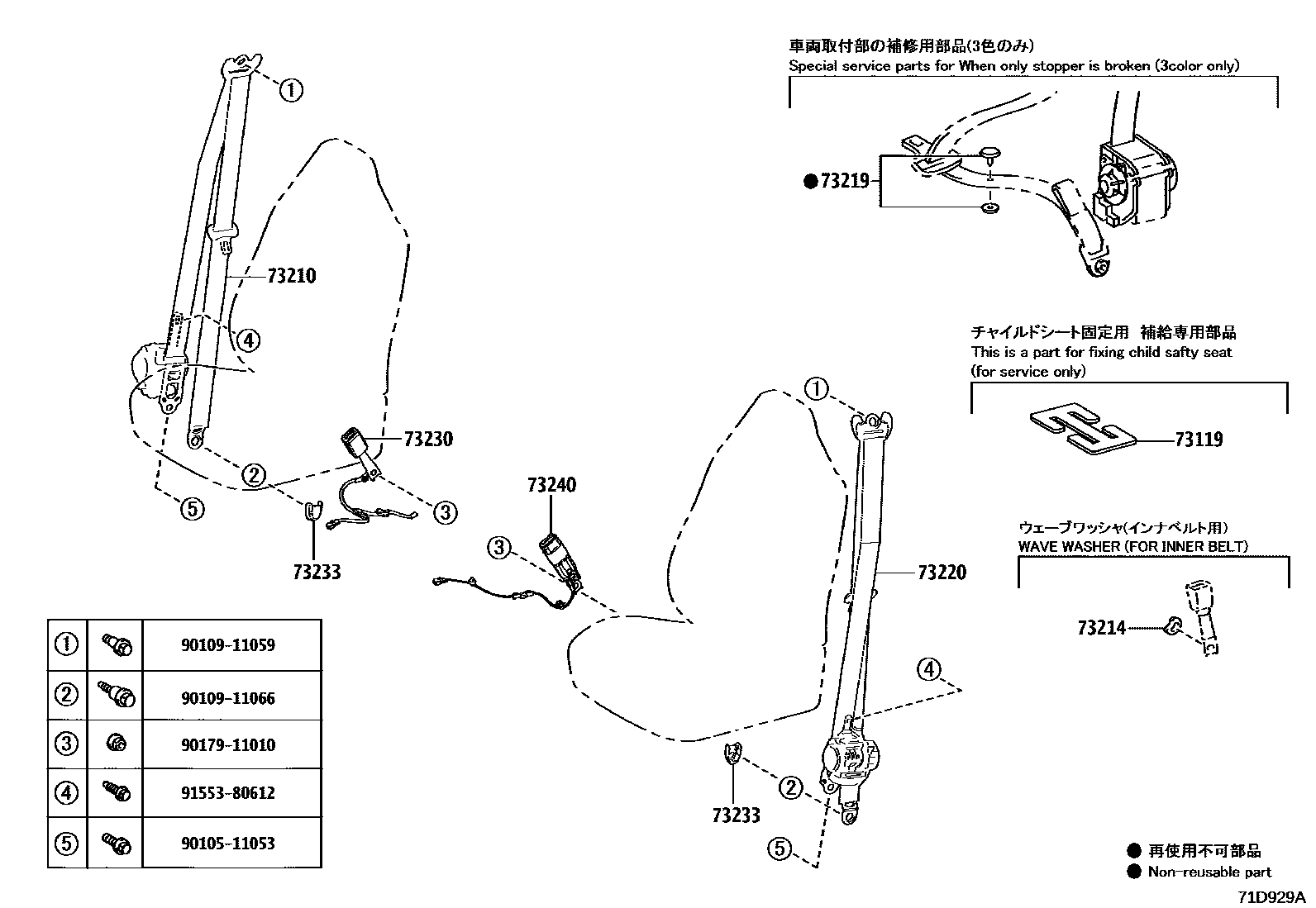

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMXPK10,15202106-202403

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-K0020-C0iMXPK11,16..G,GRS,X; MXPK11,16..Z202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iMXPK11,16; MXPK11,16..X; MXPK16..X;MXPK11..G,X202106

73219STOPPER, TONGUE PLATE

main73219-33010iMXPK10,15202106-202403

main73219-33020iMXPK11,16202106

main73219-33030iMXPK11,16202106

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-K0020-C0iMXPK11,16..G,GRS,X; MXPK11,16..Z202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-K0050-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main73230-52A90-C0iMXPK11,16..X; MXPK16..X;MXPK11..G,X202106

main73230-K0100-C0iMXPK11,16..Z202106-202212

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iMXPK10,15202106-202403

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-K0080-C0iMXPK10,15202106-202403

BLACK,TRIM2#

main73230-52C30-C0iMXPK1#; MXPK16..X;MXPK11..G,X202106

9010511053

main90105-11053

9010911059

main90109-11059

9010911066

main90109-11066

9017911010

main90179-11010

9155380612

main91553-80612

13 parts on this diagram · 2 diagrams in section
