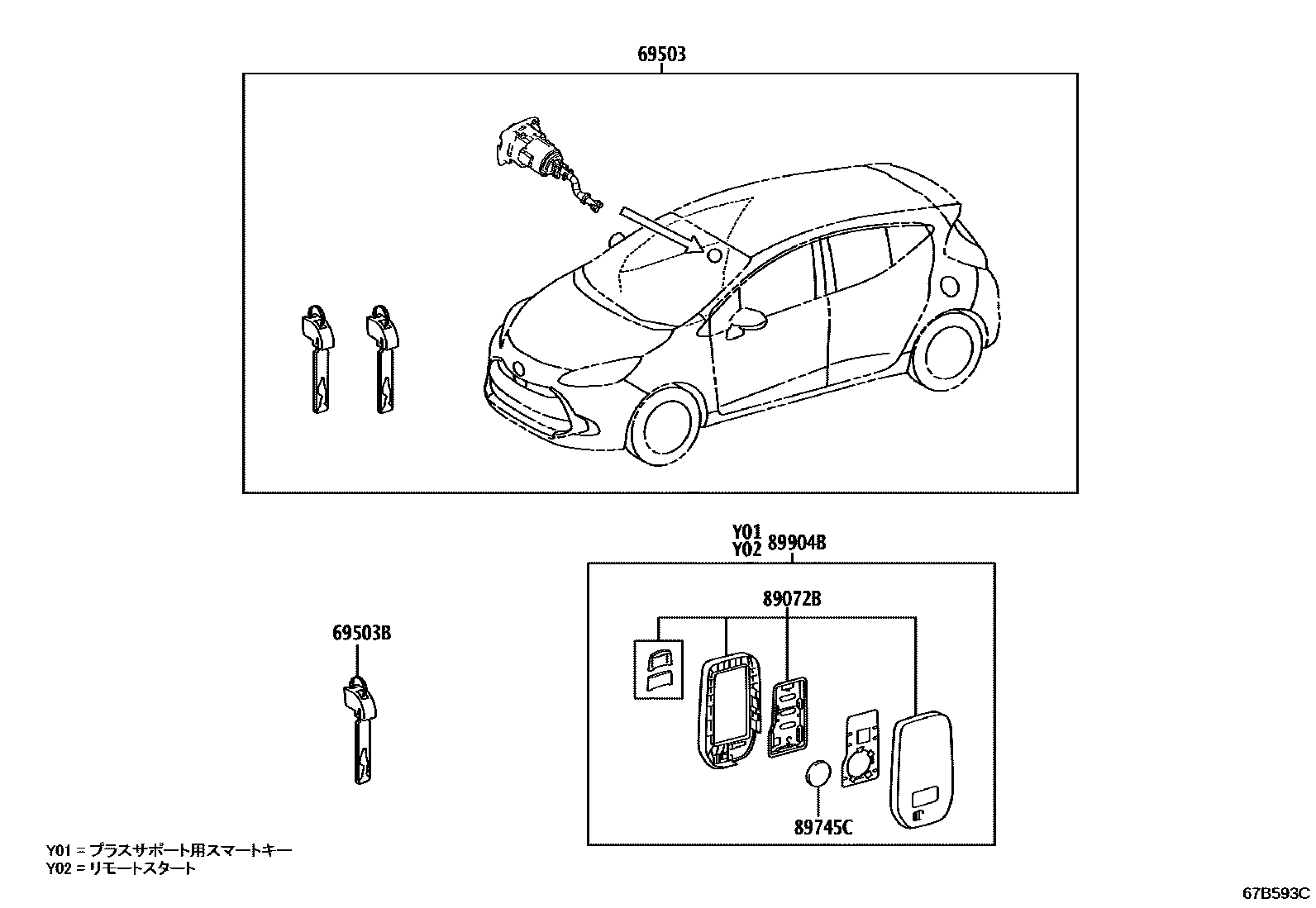

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69051-52690iMXPK11,16202106

69503BKEY, CUT

main69515-K0010iMXPK11,16202106

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-52B30×2iMXPK11..GRS202212

main89072-K0010×2iMXPK10,15202106-202403

89745CBATTERY, TRANSMITTER

main89745-K0010iMXPK10,15202106-202403

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-52100iMXPK11..GRS202212-202307

main8990H-52101iMXPK11..GRS202308

main8990H-52160iMXPK1#..B,G,X,Z202106-202306

main8990H-52161iMXPK10,15202307-202403

5 parts on this diagram · 1 diagram in section
