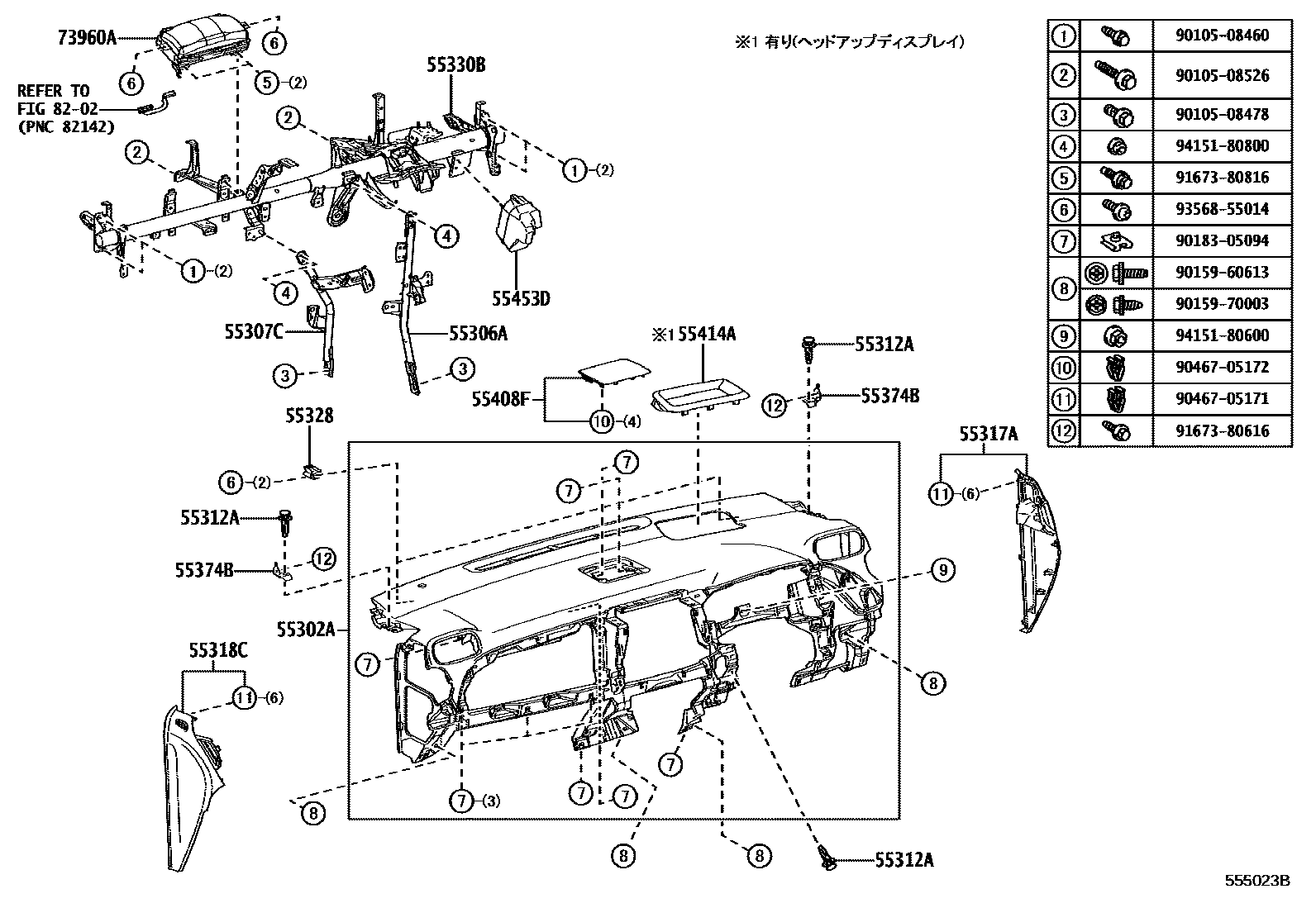

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52210-C0iMXPK11,16..G,GRS,X; MXPK11,16..Z202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

main55302-52220-C0iMXPK11,16..Z202106-202212

main55302-52240-C0iMXPK11,16..X202106-202404

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52440iMXPK10,15202106-202403

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-52090iMXPK11,16202106

55312ACLIP, INSTRUMENT PANEL

main52161-16010×3iMXPK10,15202106-202403

55317APANEL, INSTRUMENT SIDE, RH

main55317-52130-C0iMXPK11,16..G,GRS,X; MXPK11,16..Z202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-52110-C0iMXPK11,16..G,GRS,X; MXPK11,16..Z202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×2iMXPK11,16202106

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-52850iMXPK11,16202106

55374BBRACKET, INSTRUMENT PANEL

main55363-52010iMXPK11,16202106

main55363-52020iMXPK10,15202106-202403

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-52020-C0iMXPK11,16..G,GRS,X; MXPK11,16..Z202106

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-52140-C0iMXPK11,16..Z; MXPK11..GRS202212

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52210iMXPK10,15202106-202403

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52450iMXPK10,15202106-202403

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508460

main90105-08460

9010508478

main90105-08478

9010508526

main90105-08526

9015960613

main90159-60613

9015970003

main90159-70003

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

27 parts on this diagram · 4 diagrams in section
