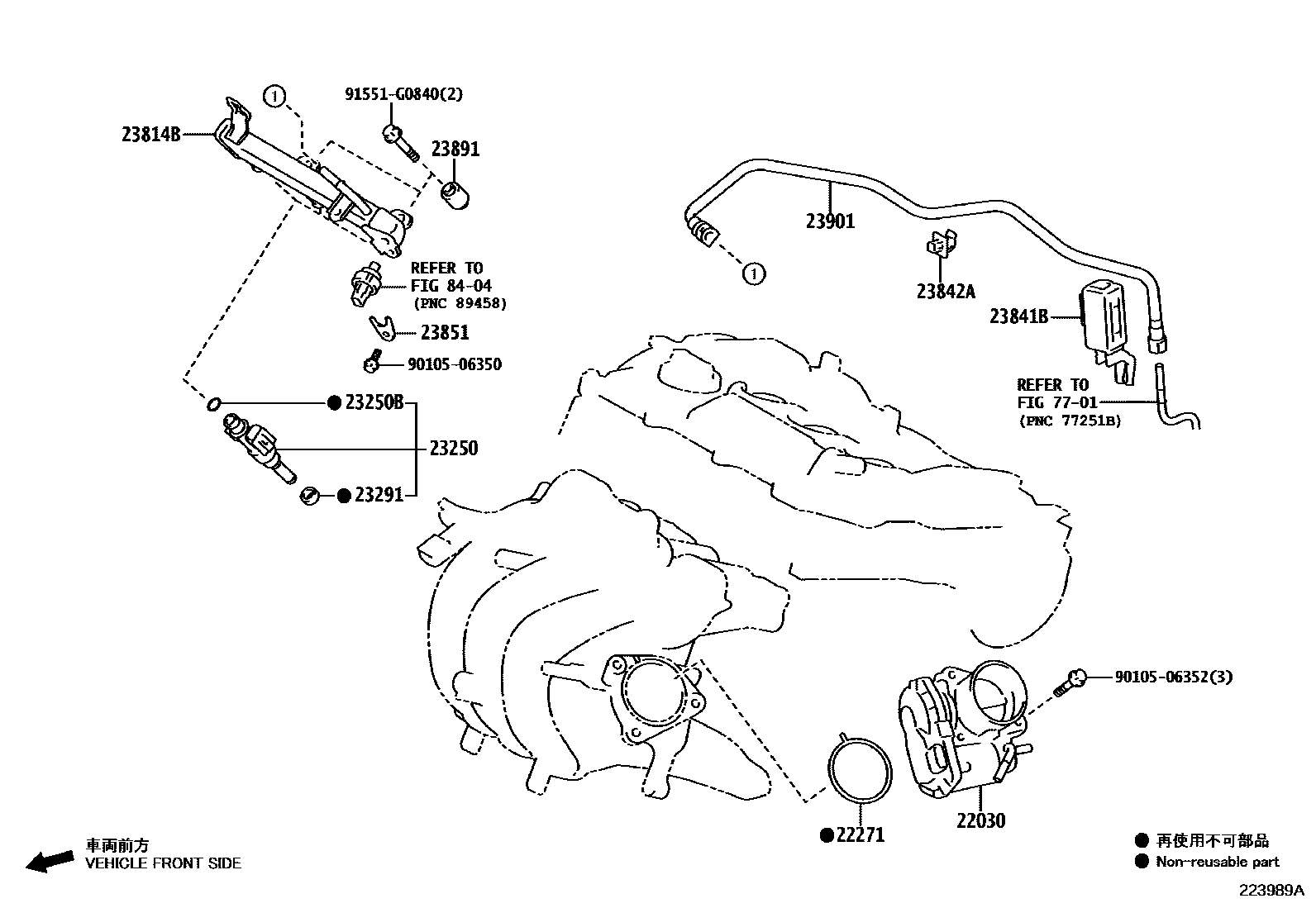

FUEL INJECTION SYSTEM

0001 1 0003 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-15010iM15AFXE..MXPK10,15202106-202403

22271GASKET, THROTTLE BODY

main22271-15050iM15AFXE..MXPK10,15202106-202403

23250INJECTOR ASSY, FUEL

main23209-19025×3iM15AFXE..MXPK10,15202106-202403

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×3iM15AFXE..MXPK10,15202106-202403

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×3iM15AFXE..MXPK10,15202106-202403

23814BPIPE, FUEL DELIVERY

main23814-15080iM15AFXE..MXPK11,16202106-202207

main23814-15090iM15AFXE..MXPK11,16202207

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-15030iM15AFXE..MXPK1#202106-202312

main23841-15050iM15AFXE..MXPK11,16202401

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-15060iM15AFXE..MXPK10,15202312-202403

main23841-47050iM15AFXE..MXPK1#202106-202312

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25030iM15AFXE..MXPK10,15202106-202403

23891SPACER, FUEL DELIVERY

main23891-24010×2iM15AFXE..MXPK10,15202106-202403

23901TUBE SUB-ASSY, FUEL

main23901-15070iM15AFXE..MXPK1#202106-202312

main23901-15120iM15AFXE..MXPK10,15202312-202403

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506352

main90105-06352

91551G0840

main91551-G0840

16 parts on this diagram · 2 diagrams in section
