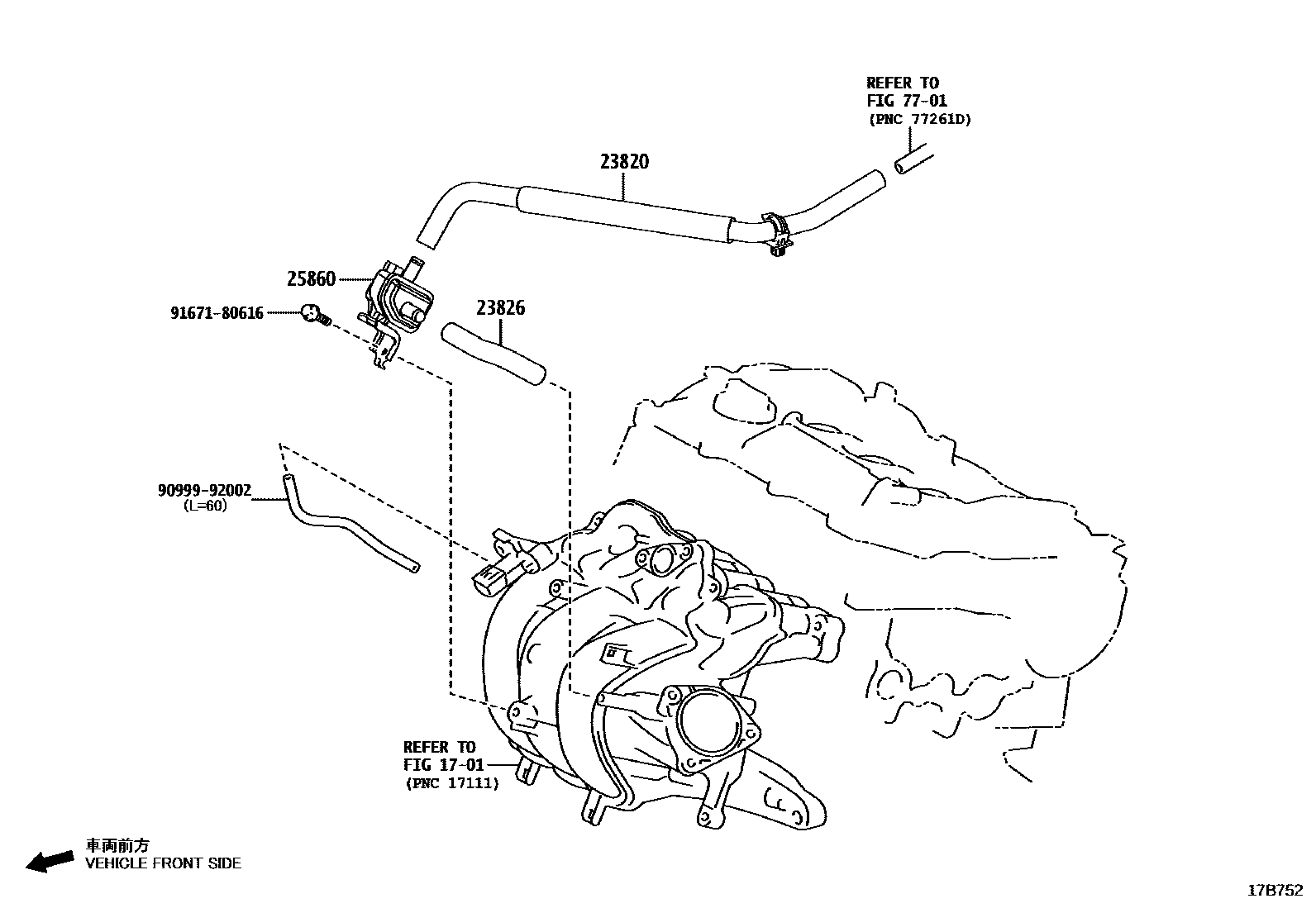

VACUUM PIPING

1701MANIFOLD

→ Go to FIG 17-01

23820HOSE ASSY, FUEL VAPOR FEED

main23820-15020iM15AFXE..MXPK10,15202106-202403

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-15020iM15AFXE..MXPK10,15202106-202403

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-15050iM15AFXE..MXPK10,15202106-202403

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9099992002

main90999-92002

9167180616

main91671-80616

7 parts on this diagram · 1 diagram in section
