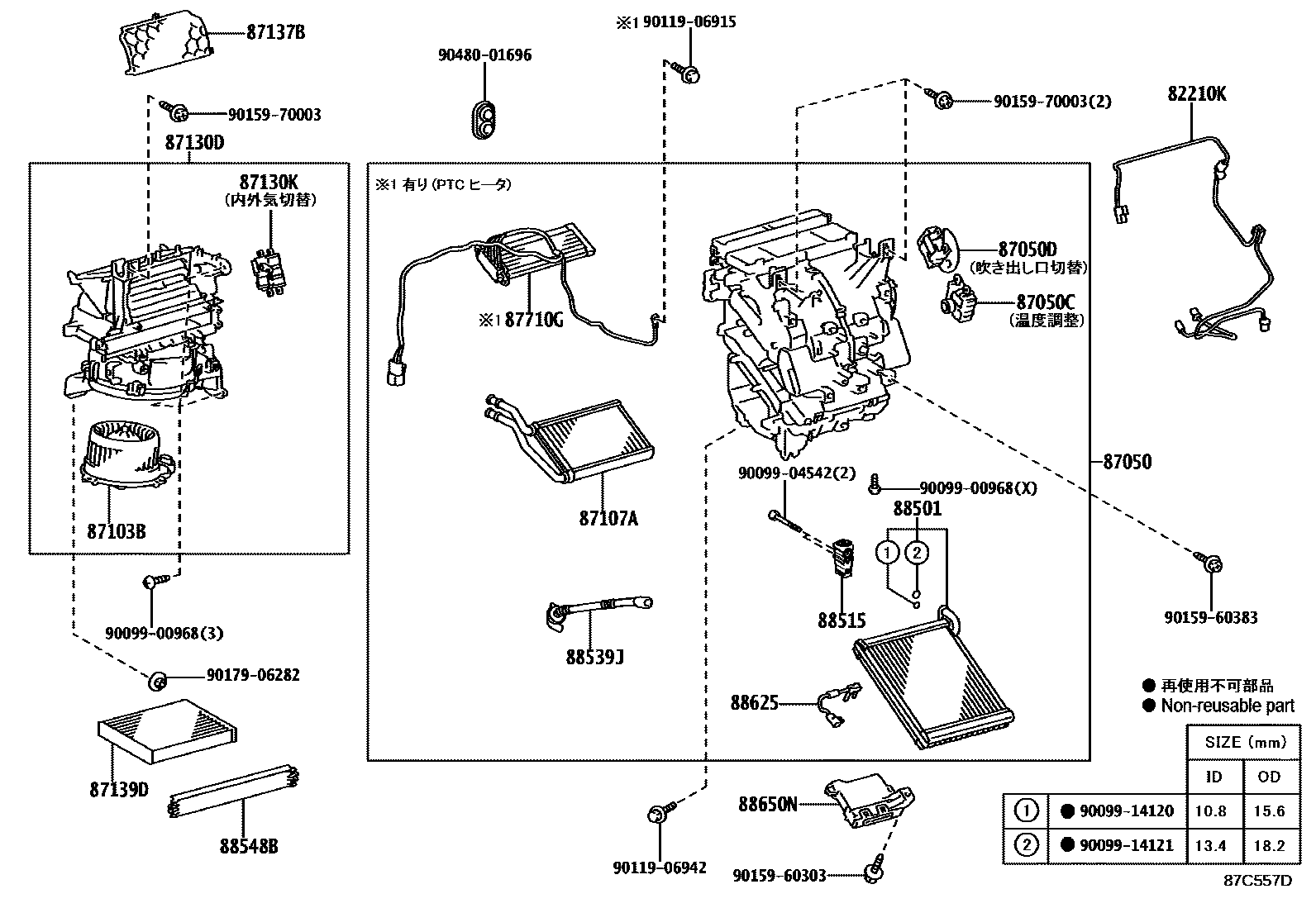

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-52070iNHP10201112-201412

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52340iNHP10201112-201310

main87050-52341iNHP10201311-201412

main87050-52300iNHP10201112-201309

main87050-52301supersedes 87050-52341iNHP10201412-201706

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-52130iNHP10201112-201412

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-52140iNHP10201112-201412

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52200iNHP10201112-201412

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52070iNHP10201412-201706

87130DBLOWER ASSY

main87130-52190iNHP10201112-201412

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-52150iNHP10201112-201412

87137BCOVER, HEATER BLOWER

main87137-52010iNHP10201112-201412

87139DELEMENT, AIR REFINER

main87139-50060iNHP10201112-201204

main87139-50100iNHP10201205-201412

main87139-52040iNHP10201112-201412

87710GQUICK HEATER ASSY

main87710-52080iNHP10201112-201412

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52120iNHP10201706

88515VALVE, COOLER EXPANSION

main88515-48110iNHP10201912

main88515-68010iNHP10201412-201706

88539JHOSE, DRAIN COOLER

main88539-52030iNHP10201412-201706

main88539-52060iNHP10201805

88548BCASE, AIR FILTER

main88548-52040iNHP10201112-201412

88625THERMISTOR, COOLER, NO.1

main88620-52010iNHP10201112-201412

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52B60iNHP10201412-201706

main88650-52800iNHP10; NHP10..G,S201112-201405

main88650-52801iNHP10; NHP10..G,S201406-201412

main88650-52810iNHP10..G,S201112-201405

main88650-52811iNHP10..G,S201406-201412

main88650-52820iNHP10..G,S201112-201405

main88650-52821iNHP10..G,S201406-201412

main88650-52B70iNHP10..G,S,XRBN; NHP10..L201412-201706

main88650-52B80iNHP10..G,S,XRBN201412-201706

main88650-52B90iNHP10..G,S,XRBN201412-201706

main88650-52D80supersedes 88650-52D70iNHP10201706

main88650-52D90iNHP10..COVER,G,S201706

main88650-52E00iNHP10..COVER,G,S201706

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906915

main90119-06915

9011906942

main90119-06942

9015960303

main90159-60303

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

28 parts on this diagram · 1 diagram in section
