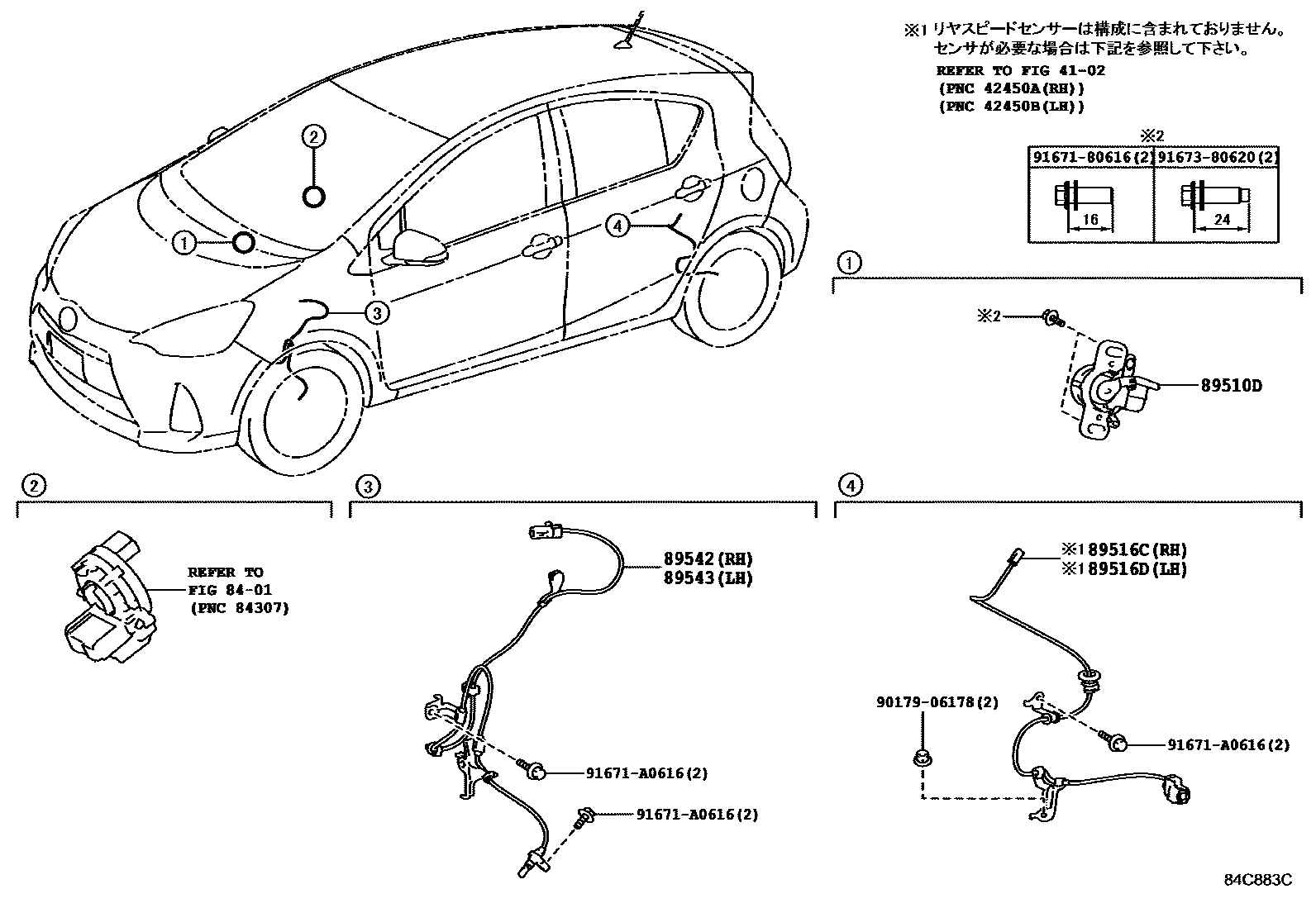

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iNHP10201412-201706

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-52130iNHP10201112-201412

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-52140iNHP10201706

89542SENSOR, SPEED, FRONT RH

main89542-52100iNHP10201412-201706

main89542-52130iNHP10201706

89543SENSOR, SPEED, FRONT LH

main89543-52100iNHP10201112-201412

main89543-52130iNHP10201706

9017906178

main90179-06178

9167180616

main91671-80616

91671A0616

main91671-A0616

9167380620

main91673-80620

11 parts on this diagram · 1 diagram in section
