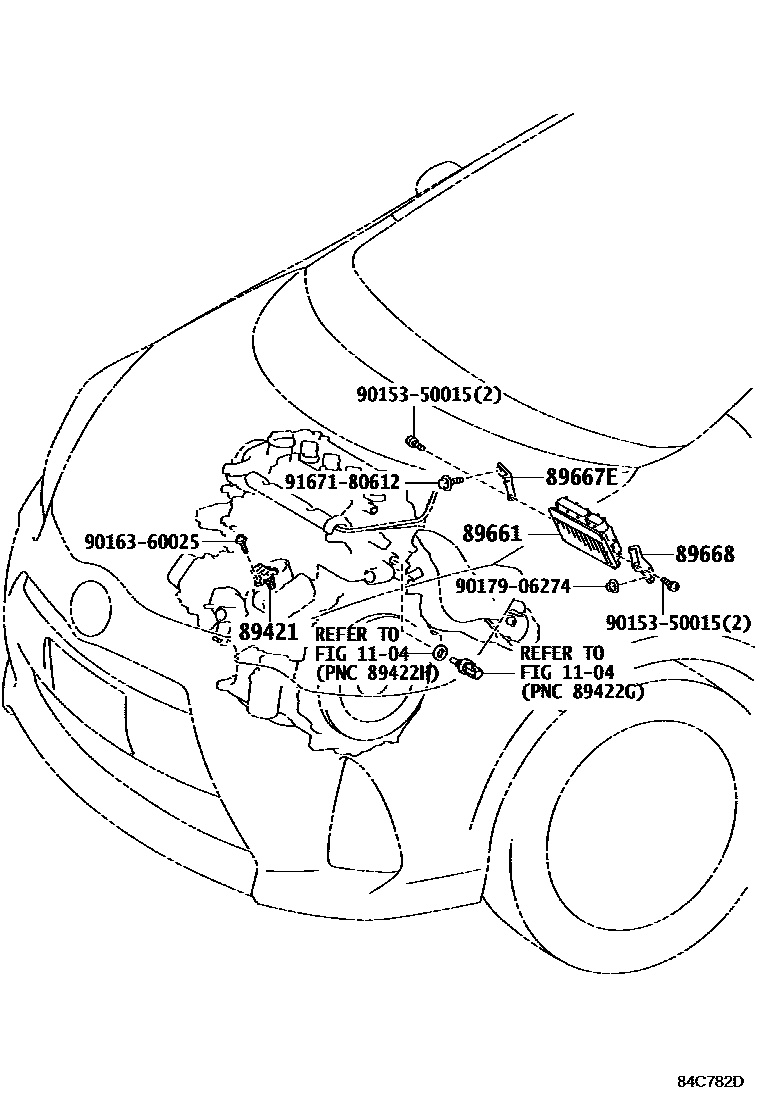

ELECTRONIC FUEL INJECTION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iNHP10201112-201412

89661COMPUTER, ENGINE CONTROL

main89661-52U90iNHP10201112-201312

main89661-52Z60iNHP10201706-202008

main89661-5C570iNHP10201312-201409

main89661-5C571iNHP10201410-201412

main89661-5C760iNHP10201511-201706

main89661-5CD20iNHP10202008

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-52340iNHP10201112-201412

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52350iNHP10201112-201412

9015350015

main90153-50015

9016360025

main90163-60025

9017906274

main90179-06274

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
