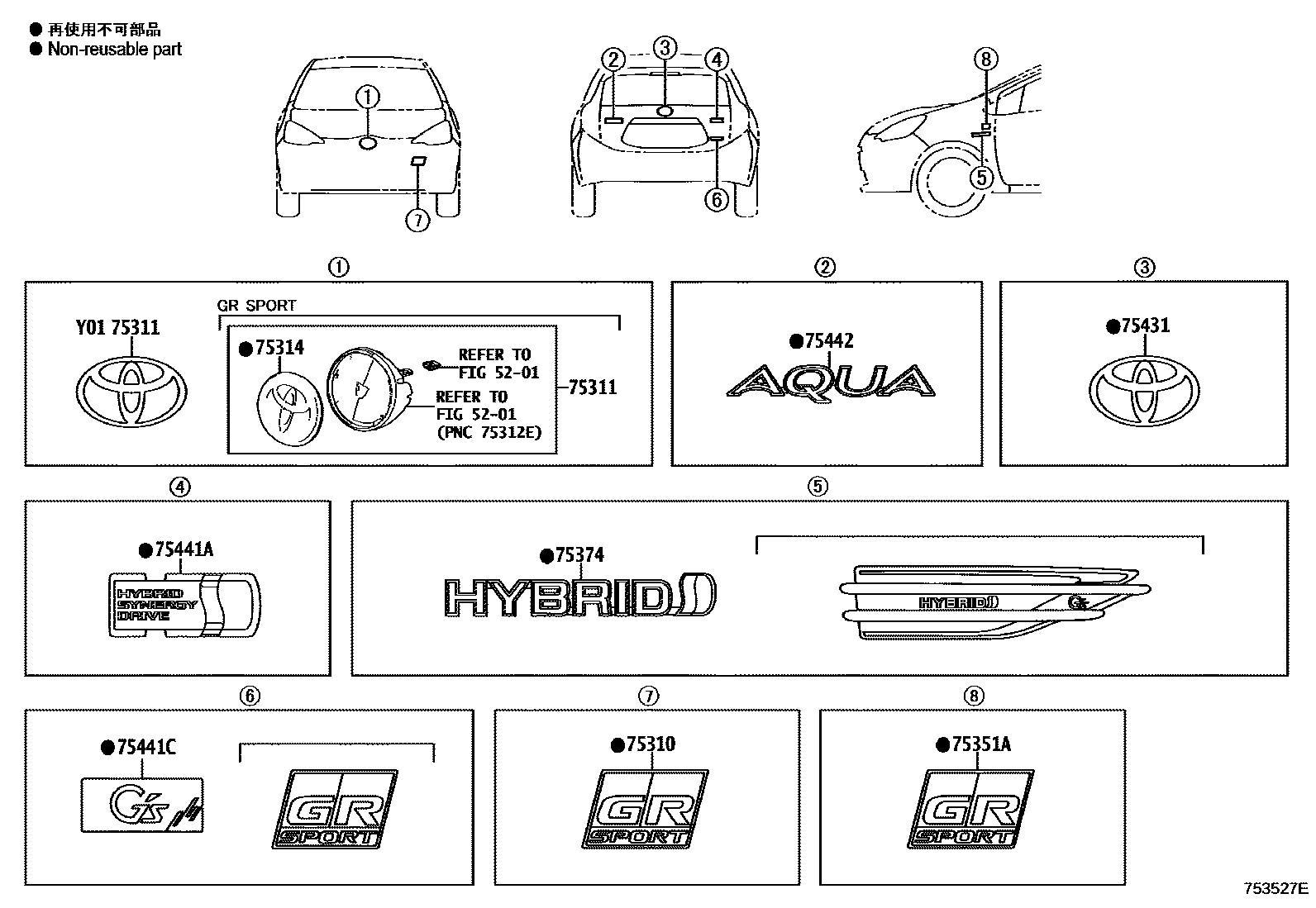

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

75310PLATE ASSY, FRONT PANEL

main75310-52110iNHP10..G201711

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75310-52020iNHP10201706

main75310-75010iNHP10; NHP10..G201112-201412

main75310-52100iNHP10..G201711

75314EMBLEM, FRONT BUMPER

main90975-02140iNHP10..G201711

75351AEMBLEM, FRONT FENDER

main75374-52150iNHP10..G201711

main75374-52160iNHP10..G201711

75374EMBLEM, SIDE PANEL

main75374-52010iNHP10201412-201706

main75374-52020iNHP10201112-201412

main75374-52130iNHP10201706-202005

main75374-52131iNHP10202006-202008

main75374-52140iNHP10201706-202005

main75374-52141iNHP10202006-202008

main75374-52070iNHP10..G201312-201412

main75374-52080iNHP10..G201412-201706

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-48010iNHP10201706

main90975-02140iNHP10..G201711

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-52110iNHP10201112-201412

75441CPLATE, BACK DOOR NAME

main75430-52020iNHP10..G201711

main75441-WY040iNHP10..G201412-201706

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-52400iNHP10201112-201412

10 parts on this diagram · 1 diagram in section
