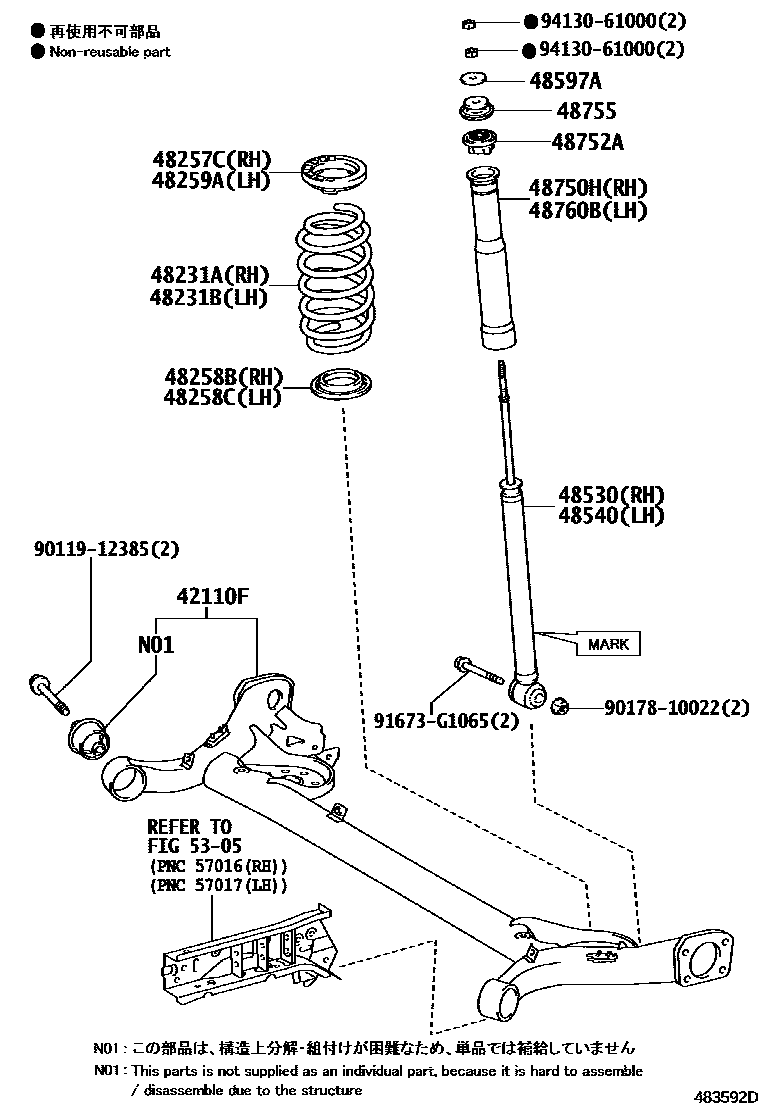

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42110-52332iNHP10..G,S201112-201412

main42110-52352iNHP10..L201112-201412

48231ASPRING, COIL, REAR RH

main48231-52D30iNHP10..XRBN201412-201706

main48231-52G20iNHP10..L201112-201412

main48231-52L10iNHP10..G; NHP10..G,L,S201706

main48231-52E10supersedes 48231-52F90iNHP10..G,S201112-201412

main48231-52L20supersedes 48231-52D30iNHP10..COVER201707

main48231-52L40iNHP10..G201608-201706

main48231-52L60iNHP10..G201711

main48231-52L90iNHP10..G201711-202008

main48231-52P00iNHP10..G202008

main48231-WY090iNHP10..G201312-201412

main48231-WY130iNHP10..G201412-201608

48231BSPRING, COIL, REAR LH

main48231-52D30iNHP10..XRBN201412-201706

main48231-52G20iNHP10..L201412-201706

main48231-52L10iNHP10..G; NHP10..G,L,S201706

main48231-52E10supersedes 48231-52F90iNHP10..G,S201112-201412

main48231-52L20supersedes 48231-52D30iNHP10..COVER201707

main48231-52L40iNHP10..G201608-201706

main48231-52L60iNHP10..G201711

main48231-52L90iNHP10..G201711-202008

main48231-52P00iNHP10..G202008

main48231-WY090iNHP10..G201312-201412

main48231-WY130iNHP10..G201412-201608

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNHP10201412-201706

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52030iNHP10201112-201412

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52030iNHP10201706

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNHP10201112-201412

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-52G40iNHP10..L201112-201412

main48530-52L10iNHP10..L201412-201706

main48530-52M10iNHP10..XRBN201412-201706

main48530-52P00iNHP10..G,S; NHP10..L201706

main48530-52G70supersedes 48530-52G60iNHP10..G,S201112-201312

main48530-52K70supersedes 48530-52K60iNHP10..G,S201312-201412

main48530-52L70supersedes 48530-52N40iNHP10..G,S201412-201706

main48530-52N40iNHP10..G; NHP10..G,S201706

main48530-52N80iNHP10..G201608-201706

main48530-52N90iNHP10..G201711

main48530-52P70iNHP10..G201711-202008

main48530-52R90iNHP10..G202008

main48530-WY070iNHP10..G201312-201412

main48530-WY100iNHP10..G201412-201608

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-52G40iNHP10..L201112-201412

main48530-52L10iNHP10..L201412-201706

main48530-52M10iNHP10..XRBN201412-201706

main48530-52P00iNHP10..G,S; NHP10..L201706

main48530-52G70supersedes 48530-52G60iNHP10..G,S201112-201312

main48530-52K70supersedes 48530-52K60iNHP10..G,S201312-201412

main48530-52L70supersedes 48530-52N40iNHP10..G,S201412-201706

main48530-52N40iNHP10..G; NHP10..G,S201706

main48530-52N80iNHP10..G201608-201706

main48530-52N90iNHP10..G201711

main48530-52P70iNHP10..G201711-202008

main48530-52R90iNHP10..S202101

main48530-WY070iNHP10..G201312-201412

main48530-WY100iNHP10..G201412-201608

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2iNHP10201112-201412

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-52100iNHP10201112-201402

main48750-52200iNHP10201412-201706

48752ASTOPPER, REAR SUSPENSION SUPPORT

main48752-52010×2iNHP10201112-201412

48755SUPPORT, REAR SUSPENSION

main48755-52010×2iNHP10201112-201412

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-52100iNHP10201112-201402

main48750-52200iNHP10201403-201412

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9011912385

main90119-12385

9017810022

main90178-10022

91673G1065

main91673-G1065

9413061000

main94130-61000

19 parts on this diagram · 1 diagram in section
