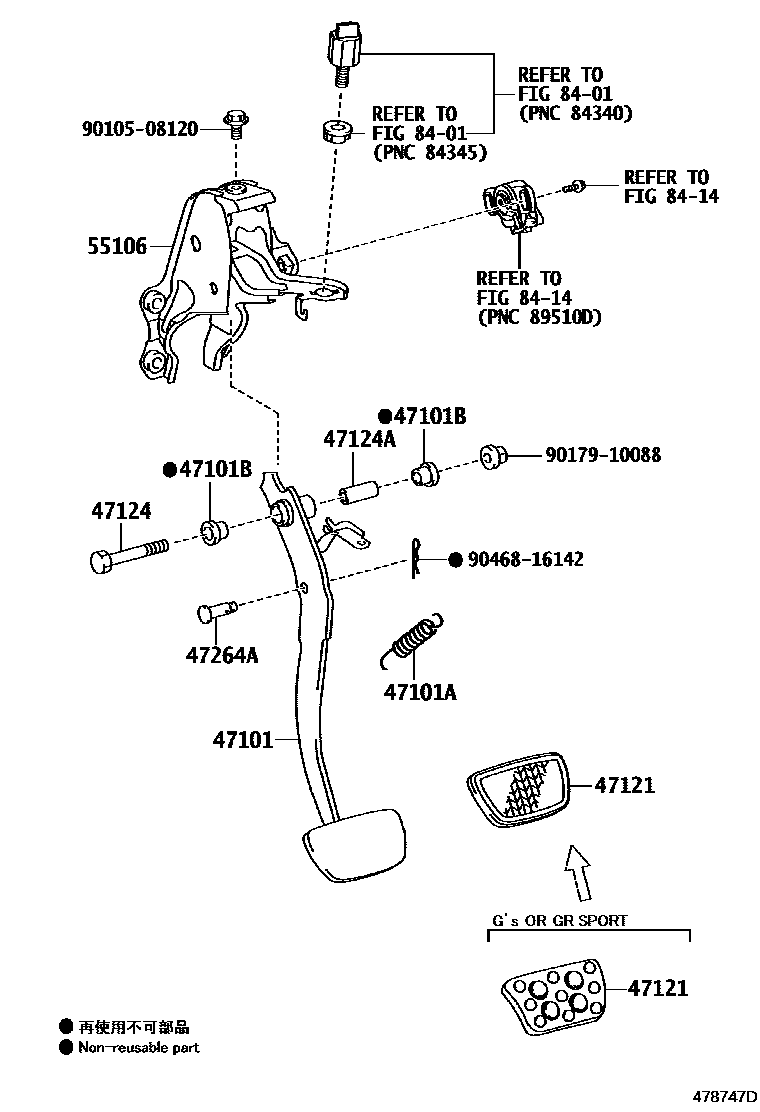

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52330iNHP10201112-201412

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNHP10201112-201205

main90506-14088iNHP10201205-201412

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNHP10201112-201412

47121PAD, BRAKE PEDAL

main47121-52010iNHP10201112-201408

main47121-52020iNHP10201409-201412

main47121-WY010iNHP10..G201312-201412

47124SHAFT, BRAKE PEDAL

main90101-10039iNHP10201112-201412

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNHP10201112-201412

47264APIN(FOR PUSH ROD)

main90249-08051iNHP10201112-201412

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52180iNHP10201112-201412

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9010508120

main90105-08120

9017910088

main90179-10088

9046816142

main90468-16142

13 parts on this diagram · 1 diagram in section
