WATER PUMP

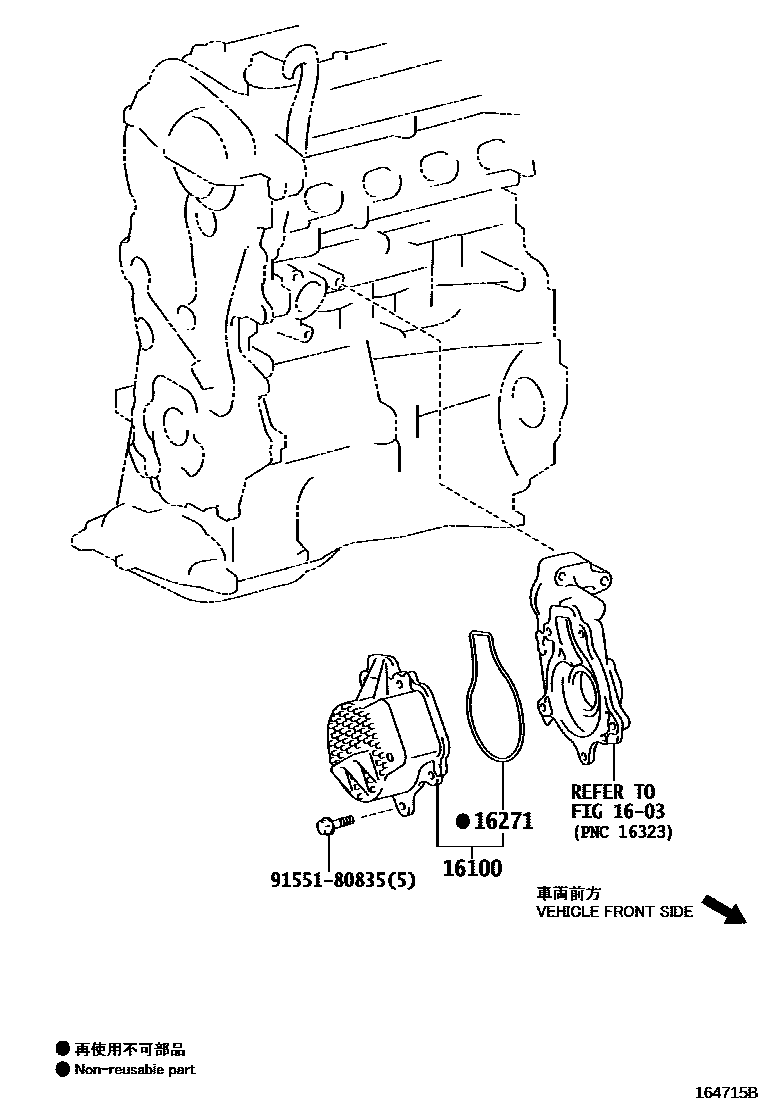

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main161A0-29015i201112-201412

main161A0-39035i201706

16271GASKET, WATER PUMP

main16271-37020i201112-201412

9155180835

main91551-80835

4 parts on this diagram · 1 diagram in section
