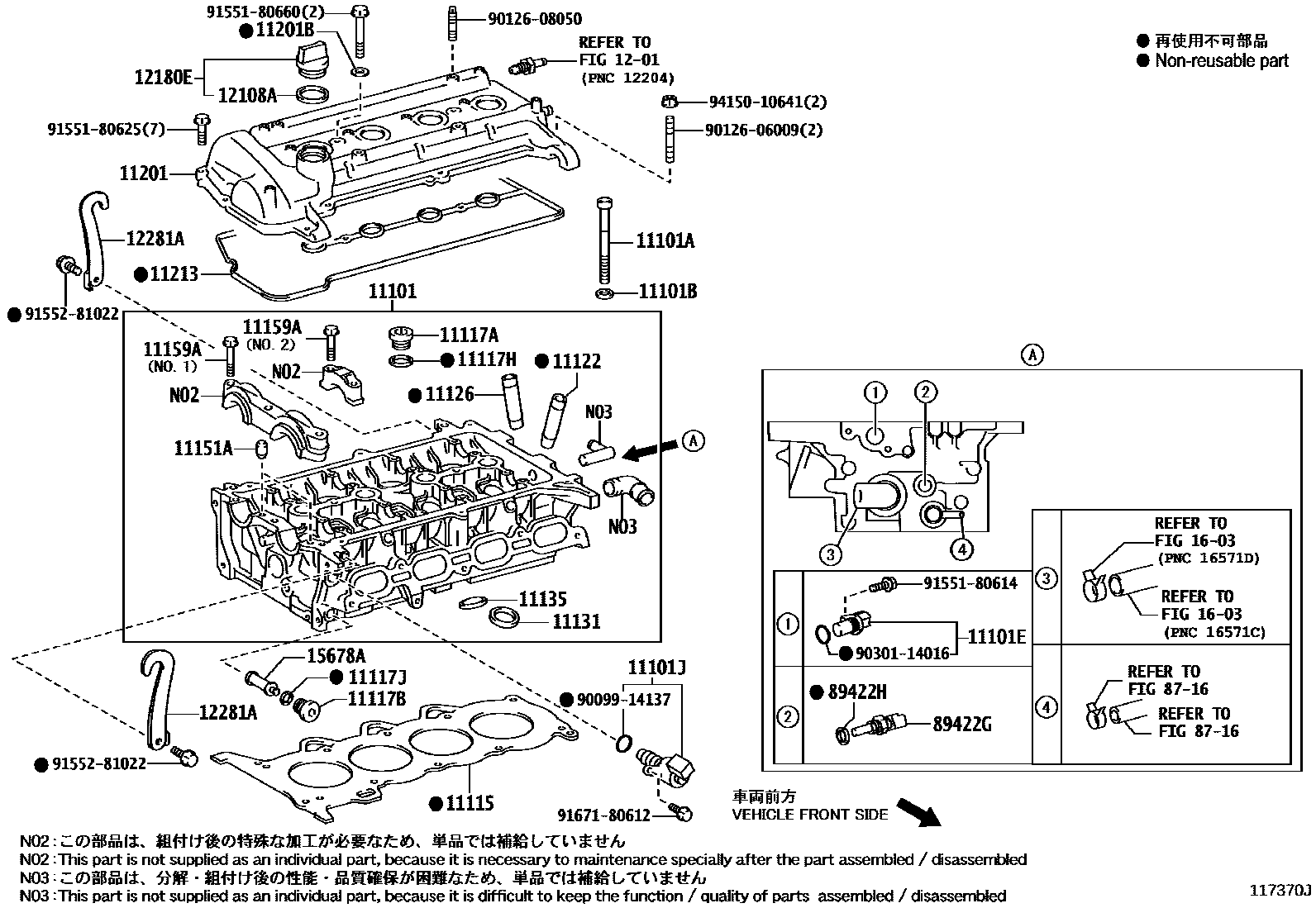

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11115GASKET, CYLINDER HEAD
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
1201VENTILATION HOSE
12108AGASKET(FOR OIL FILLER CAP)
12180ECAP ASSY, OIL FILLER
12281AHANGER, ENGINE, NO.1
15678AFILTER, OIL CONTROL VALVE
1603RADIATOR & WATER OUTLET
8716HEATING & AIR CONDITIONING - WATER PIPING
89422GSENSOR, WATER TEMPERATURE
9009914137
main90099-14137
9012606009
main90126-06009
9012608050
main90126-08050
9030114016
main90301-14016
9155180614
main91551-80614
9155180625
main91551-80625
9155180660
main91551-80660
9155281022
main91552-81022
9167180612
main91671-80612
9415010641
main94150-10641
38 parts on this diagram · 1 diagram in section
