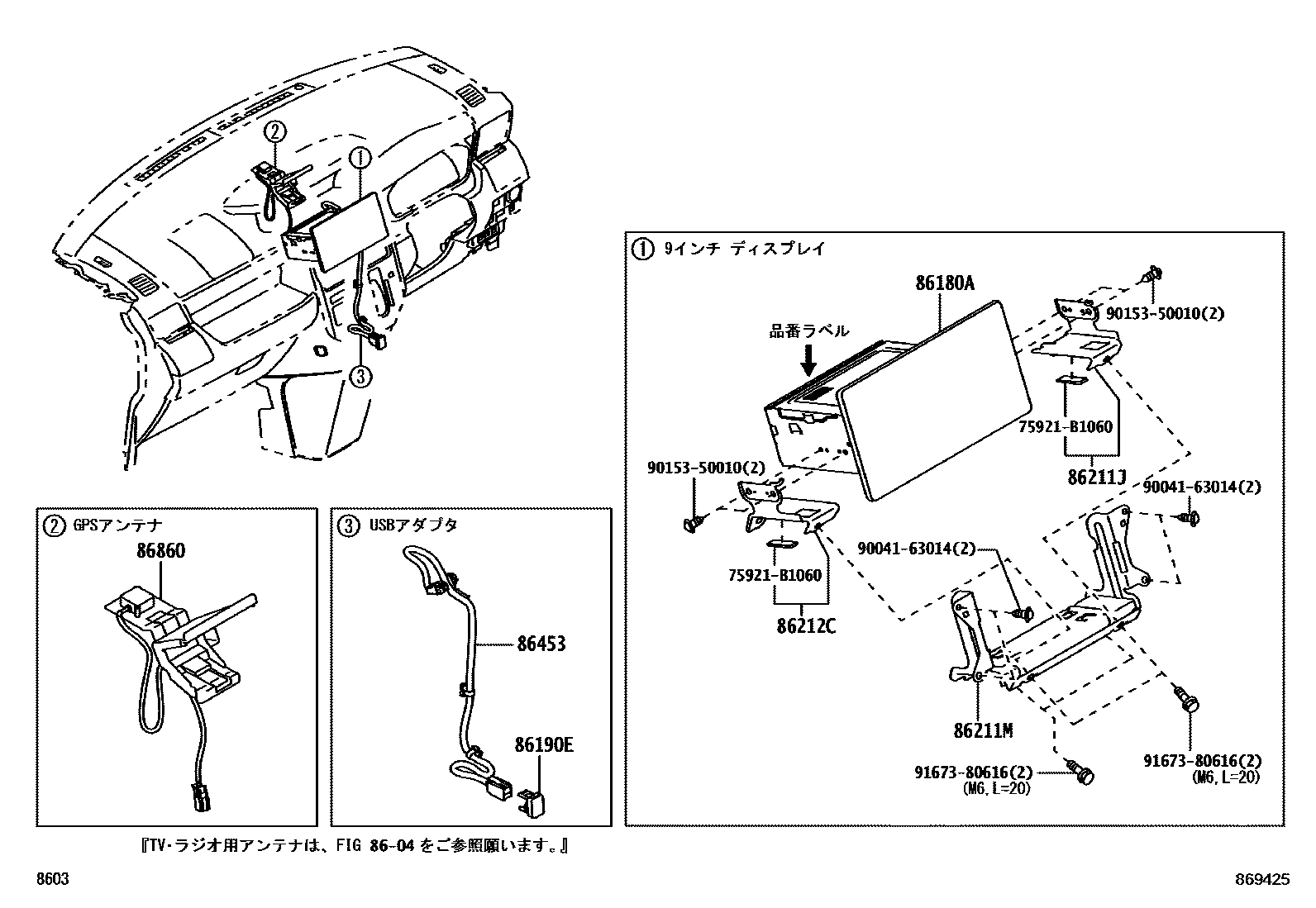

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8604ANTENNA

→ Go to FIG 86-04

86180ATUNER ASSY, STEREO COMPONENT

main86180-B1270iM900,910; M900,910..CTMG,G202009-202208

main86180-B1400iM900,910; M900,910..CTMG,G202208-202412

86190EADAPTER ASSY, STEREO JACK

main86190-B1020supersedes 86190-B2110iM900,910..CTMG,G202009-202412

main86190-B1040supersedes 86190-B1060iM900,910..X202009-202412

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-B1160iM900,910; M900,910..CTMG,G202009-202412

86211MBRACKET, RADIO RECEIVER, NO.3

main86211-B1170iM900,910; M900,910..CTMG,G202009-202412

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-B1160iM900,910; M900,910..CTMG,G202009-202412

86453WIRE, MULTI-MEDIA MODULE

main86203-B1020supersedes 86203-B1080iM900,910..X202009-202412

main86203-B1030supersedes 86203-B1070iM900,910..CTMG,G202009-202412

86860ANTENNA ASSY, NAVIGATION

main86860-B1070iM900,910202009-202412

75921B1060TAPE, BLACK OUT, NO.1 RH

main75921-B1060

9004163014

main90041-63014

9015350010

main90153-50010

9167380616

main91673-80616

12 parts on this diagram · 2 diagrams in section
