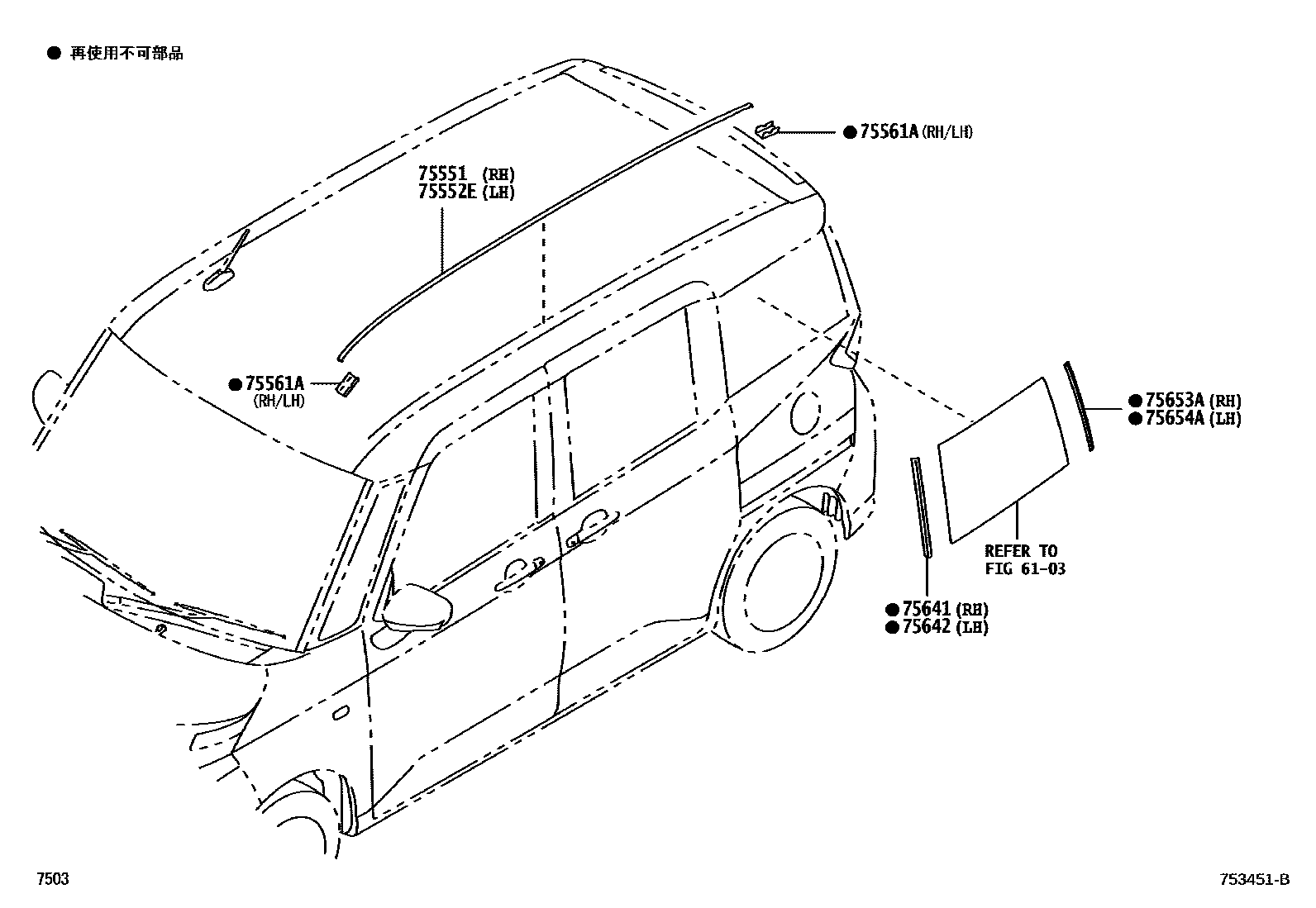

SIDE MOULDING

6103QUARTER WINDOW

→ Go to FIG 61-03

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-B1070iM900,910201611-201612

main75551-B1071iM900,910201612-202009

75552EMOULDING, ROOF DRIP SIDE FINISH, LH

main75552-B1070iM900,910201611-202009

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-B1020×4iM900,910201611-202009

75641MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH

main75641-B1010iM900,910201611-202009

75642MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH

main75642-B1010iM900,910201611-202009

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75645-B1010iM900,910201611-202009

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75645-B1010iM900,910201611-202009

8 parts on this diagram · 1 diagram in section
