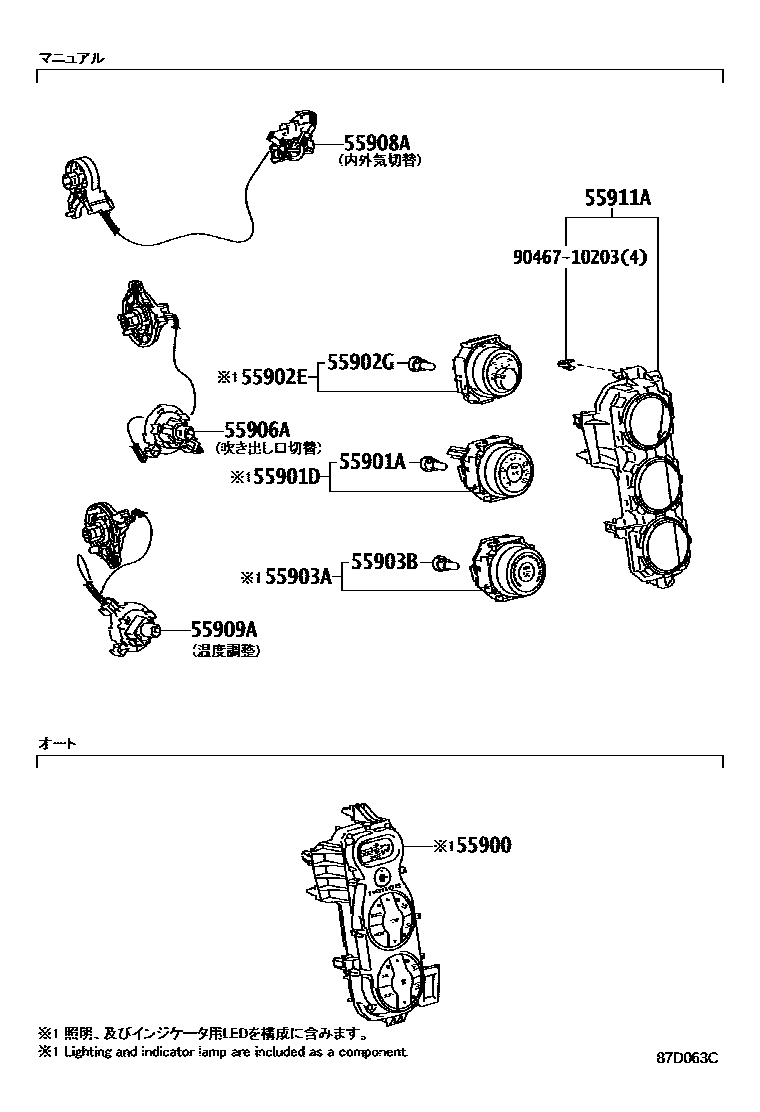

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1���������� 0004 1������ 0007 1���

55900CONTROL ASSY, AIR CONDITIONER

main55900-52780-C0iNCP145,NSP141..F..CBU; NCP145,NSP141..G; NCP145,NSP141..X..CBU; NCP145,NSP141..Y201507

main55900-52780-E0iNCP145,NSP141..F..CBU; NCP145,NSP141..G; NCP145,NSP141..X..CBU201507

main55900-52790iNCP14#,NSP140..(F,X,Y)..CBU; NCP14#..G201207-201507

55901ABULB, HEATER CONTROL SUB-ASSY, NO.1

main90010-01142iNCP14#,NSP140..(F,V,X,Y)..CBU; NCP14#,NSP140..(F,X,Y)..CBU201207-201507

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-52230iNCP14#,NSP140..(V,X)..CBU201207-201507

main55901-52370iNCP14#..(F,Y)..CBU201207-201507

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-52180iNCP145,NSP141..(V,X)..CBU201507

main55902-52210iNCP14#..(F,Y)..CBU201207-201507

55902GBULB, HEATER CONTROL SUB-ASSY, NO.2

main90010-01142iNCP14#,NSP140..(F,V,X,Y)..CBU; NCP14#,NSP140..(F,X,Y)..CBU201207-201507

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-52231iNCP145,NSP141..X..CBU201507-202101

main55903-52620supersedes 55903-52231iNCP145,NSP141..(V,X)..CBU201507

main55903-52640supersedes 55903-52700iNCP145,NSP141..(F,Y)..CBU201507

main55903-52700iNCP145,NSP141..(F,Y)..CBU201507-202101

55903BBULB, HEATER CONTROL SUB-ASSY, NO.3

main90010-01142iNCP145,NSP141..(F,V,X,Y)..CBU201507

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-52132iNCP145,NSP141..(F,V,X,Y)..CBU201507

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-52130iNCP145,NSP141..(F,V,X,Y)..CBU201507

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-52120iNCP14#,NSP140..(F,V,X,Y)..CBU; NCP14#,NSP140..(F,X,Y)..CBU201207-201507

55911ABASE, HEATER CONTROL

main55911-52020iNCP14#,NSP140..(F,V,X,Y)..CBU201207-201507

9046710203

main90467-10203

12 parts on this diagram · 3 diagrams in section
