HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����� 0004 1�����---�������� 0007 1��� 0010 1���---��������

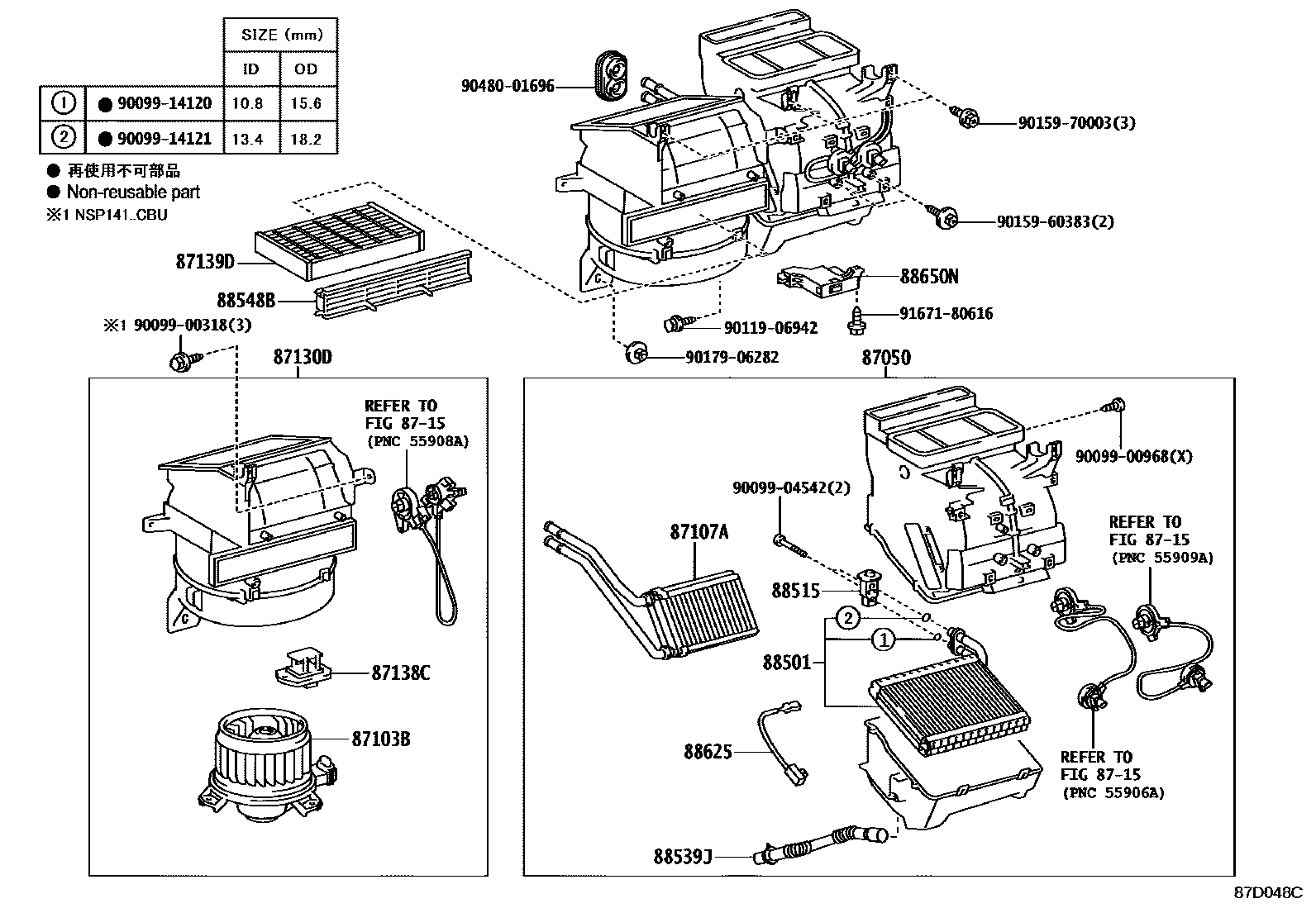

87050RADIATOR ASSY, AIR CONDITIONER

main87050-52141iNCP14#,NSP140..(F,X,Y)..CBU; NCP14#..G201207-201507

main87050-52151supersedes 87050-52131iNCP14#,NSP140..(F,V,X,Y)..CBU201207-201507

main87050-52161supersedes 87050-52141iNCP145..(F,X,Y)..CBU; NCP145..G201507

main87050-52400supersedes 87050-52500iNSP141..(F,V,X,Y)..CBU201507

main87050-52410iNSP141..(F,X,Y)..CBU; NSP141..G201507

main87050-52510iNSP141..(F,X,Y)..CBU; NSP141..G201507

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-52121iNCP14#,NSP140..(F,V,X,Y)..CBU201207-201507

main87103-52132iNCP14#,NSP140..(F,X,Y)..CBU; NCP14#..G201207-201507

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-52061iNCP145,NSP141..CBU201507

87130DBLOWER ASSY

main87130-52050iNCP14#,NSP140..(F,V,X,Y)..CBU201207-201507

main87130-52061iNCP14#,NSP140..(F,X,Y)..CBU; NCP14#..G201207-201507

87138CRESISTOR, BLOWER

main87138-52030iNCP145,NSP141..(F,V,X,Y)..CBU201507

87139DELEMENT, AIR REFINER

main87139-50100iNCP145,NSP141..CBU201507

main87139-52040iNCP14#,NSP140..CBU201207-201507

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-52103iNCP145,NSP141..CBU201507

88515VALVE, COOLER EXPANSION

main88515-52090iNSP141..CBU201507

main88515-68010iNCP14#,NSP140..CBU201207-201507

88539JHOSE, DRAIN COOLER

main88539-52030iNCP145,NSP141..CBU201507-201802

main88539-52060iNCP145,NSP141..CBU201803

88548BCASE, AIR FILTER

main88548-52040iNCP14#,NSP140..CBU201207-201507

88625THERMISTOR, COOLER, NO.1

main88625-26090iNCP145,NSP141..CBU201507

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-52850iNCP14#,NSP140..(F,X,Y)..CBU; NCP14#..G201207-201507

main88650-52C20iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201507-201712

main88650-52E20iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201712

main88650-52870supersedes 88650-52860iNCP14#,NSP140..(F,V,X,Y)..CBU201207-201507

main88650-52C10supersedes 88650-52C00iNCP145,NSP141..(F,V,X,Y)..CBU201507

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906942

main90119-06942

9015960383

main90159-60383

9015970003

main90159-70003

9017906282

main90179-06282

9048001696

main90480-01696

9167180616

main91671-80616

24 parts on this diagram · 4 diagrams in section
