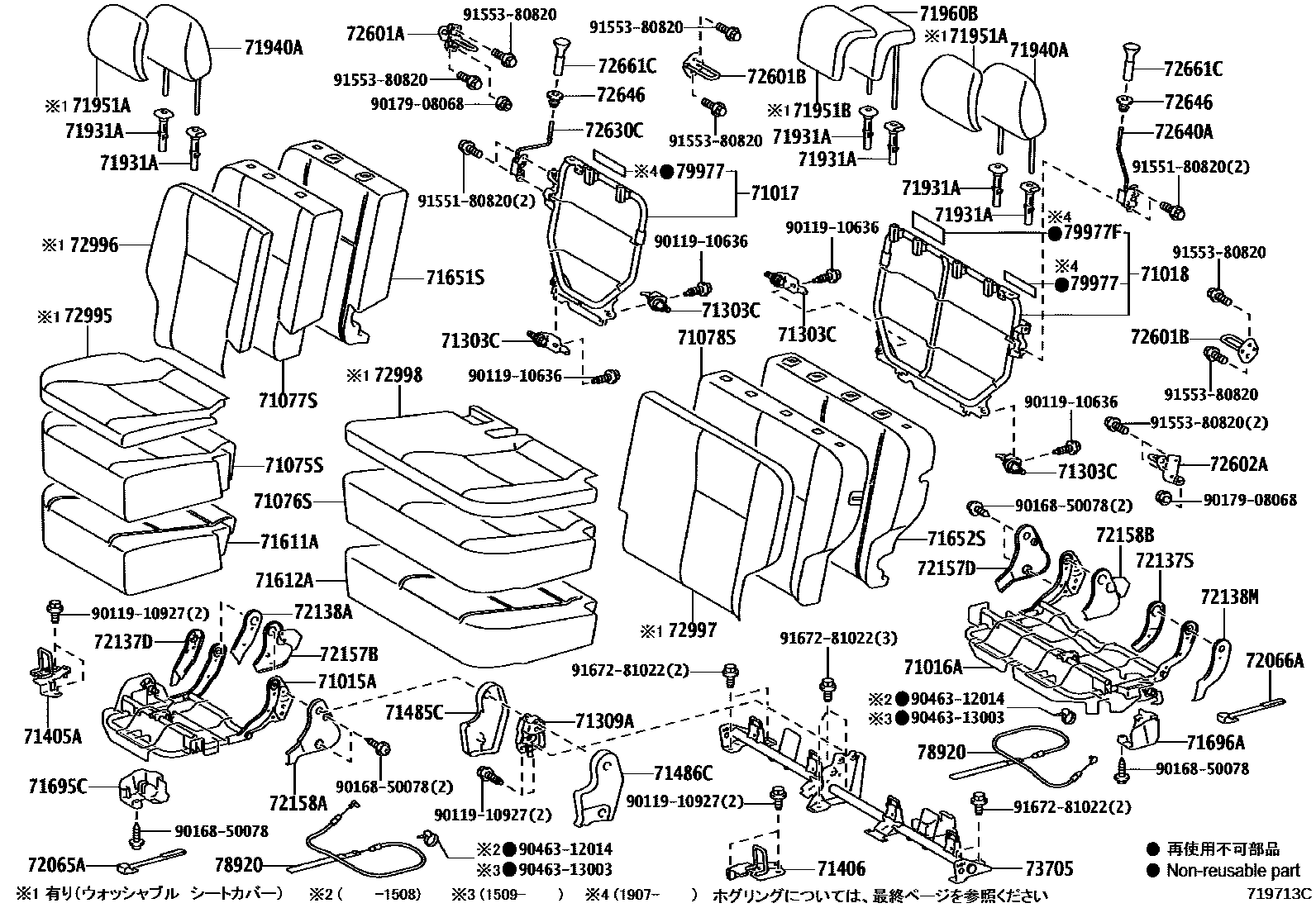

REAR SEAT & SEAT TRACK

0001 1 0003 1 0005 1 0007 1 0009 1�������������� & �������

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-52470iNCP141,NSP140..(V,X)..CBU201207-201507

main71015-52480iNCP145..CBU201507

71015AFRAME SUB-ASSY, REAR SEAT CUSHION, RH

main71015-52490iNSP141..(F,G,Y)..CBU201507

71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH

main71016-52130iNSP141..(F,G,Y)..CBU201507

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-52730iNCP145..CBU201507-201905

main71017-52731iNCP145..CBU201905

main71017-52740iNSP141..(F,G,Y)..CBU201507-201905

main71017-52741iNSP141..(F,G,Y)..CBU201905

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-52530iNCP145..CBU201207-201507

main71018-52531iNCP145..CBU201905

main71018-52540iNSP141..(F,G,Y)..CBU201507-201905

main71018-52541iNSP141..(F,G,Y)..CBU201905

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-52K00-A0iNCP141..F..CBU201207-201507

FROMAGE,TRIM0#

main71075-52K00-A1iNSP141..F..CBU201712-201811

FROMAGE,TRIM0#

main71075-52K00-A2iNSP141..F..CBU201811-201907

FROMAGE,TRIM0#

main71075-52K00-C0iNCP141..PORTE..F..CBU201207-201507

BLACK,TRIM4#

main71075-52K00-C1iNCP141..SPADE..F..CBU201404-201507

BLACK,TRIM44

main71075-52K00-C3iNSP141..F..CBU201811-201907

BLACK,TRIM4#

main71075-52K01-A2iNSP141..F..CBU201907

FROMAGE,TRIM0#

main71075-52K01-C3iNSP141..F..CBU201907

BLACK,TRIM4#

main71075-52K20-A0iNCP141..Y201207-201507

FROMAGE,TRIM0#

main71075-52K20-C0iNSP141..Y201507-201811

BLACK,TRIM4#

main71075-52K20-C1iNSP141..Y201811-201907

BLACK,TRIM4#

main71075-52K21-C1iNSP141..Y201907

BLACK,TRIM4#

main71075-52K40-E0iNCP141..G201207-201507

PLUM,TRIM4#

main71075-52N30-C1iNSP141..G201507-201811

BLACK,TRIM0#,4#

main71075-52N30-C2iNSP141..G201811-201907

BLACK,TRIM4#

main71075-52N31-C2iNSP141..G201907

BLACK,TRIM4#

main71075-52N10-A1iNSP141..PORTE..F..CBU201607-201712

main71075-52N10-A2iNSP141..PORTE..F..CBU201712-201811

main71075-52N10-C1iNSP141..SPADE..F..CBU201607-201712

main71075-52N40-C1iNCP145..G201507-201811

main71075-52N40-C2iNCP145..G201811

main71075-52U30-C0iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201811-201907

main71075-52U30-E0iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201811-201907

main71075-52U31-C0iNSP141..F..CBU201910

main71075-52U31-E0iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201907-201910

main71075-52U31-E1iNSP141..F..CBU; NSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201910

71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71076-52340-A0iNCP141..F..CBU201207-201507

FROMAGE,TRIM0#

main71076-52340-A1iNSP141..F..CBU201712-201811

FROMAGE,TRIM0#

main71076-52340-A2iNSP141..F..CBU201811-201907

FROMAGE,TRIM0#

main71076-52340-C0iNCP141..SPADE..F..CBU201404-201507

BLACK,TRIM40,42

main71076-52340-C1iNCP141..SPADE..F..CBU201404-201507

BLACK,TRIM44

main71076-52340-C3iNSP141..F..CBU201811-201907

BLACK,TRIM4#

main71076-52341-A2iNSP141..F..CBU201907

FROMAGE,TRIM0#

main71076-52341-C3iNSP141..F..CBU201907

BLACK,TRIM4#

main71076-52350-A0iNCP141..Y201207-201507

FROMAGE,TRIM0#

main71076-52350-C0iNSP141..Y201507-201811

BLACK,TRIM4#

main71076-52350-C1iNSP141..Y201811-201907

BLACK,TRIM4#

main71076-52351-C1iNSP141..Y201907

BLACK,TRIM4#

main71076-52360-E0iNCP141..G201207-201507

PLUM,TRIM4#

main71076-52390-C1iNSP141..G201507-201811

BLACK,TRIM0#,4#

main71076-52390-C2iNSP141..G201811-201907

BLACK,TRIM4#

main71076-52391-C2iNSP141..G201907

BLACK,TRIM4#

main71076-52310-A1iNSP141..PORTE..F..CBU201507-201607

main71076-52310-A2iNSP141..PORTE..F..CBU201712-201811

main71076-52310-C1iNSP141..SPADE..F..CBU201507-201607

main71076-52420-C0iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201811-201907

main71076-52420-E0iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201811-201907

main71076-52421-C0iNSP141..F..CBU201910

main71076-52421-E0iNSP141..F..CBU; NSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201910

main71076-52421-E1iNSP141..F..CBU; NSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201910

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-52L00-E1iNCP145..X..CBU201207-201412

PLUM,TRIM4#

main71077-52L01-E1iNCP145..X..CBU201412-201507

PLUM,TRIM4#

main71077-52L10-A1iNCP141..F..CBU201207-201412

FROMAGE,TRIM0#

main71077-52L10-C1iNCP141..PORTE..F..CBU201207-201412

BLACK,TRIM4#

main71077-52L10-C2iNCP141..SPADE..F..CBU201404-201412

BLACK,TRIM44

main71077-52L11-A1iNCP141..F..CBU201412-201507

FROMAGE,TRIM0#

main71077-52L11-A2iNSP141..F..CBU201712-201811

FROMAGE,TRIM0#

main71077-52L11-A3iNSP141..F..CBU201811

FROMAGE,TRIM0#

main71077-52L11-C1iNCP141..PORTE..F..CBU; NCP141..SPADE..F..CBU201412-201507

BLACK,TRIM4#; BLACK,TRIM40,42

main71077-52L11-C2iNCP141..SPADE..F..CBU201412-201507

BLACK,TRIM44

main71077-52L11-C4iNSP141..F..CBU201811

BLACK,TRIM4#

main71077-52L20-A1iNCP145..F201207-201412

FROMAGE,TRIM0#

main71077-52L20-C1iNCP145..SPADE..F201404-201412

BLACK,TRIM40

main71077-52L20-C2iNCP145..SPADE..F201404-201412

BLACK,TRIM44

main71077-52L21-A1iNCP145..F201507-201712

FROMAGE,TRIM0#

main71077-52L21-A2iNCP145..F201712-201811

FROMAGE,TRIM0#

main71077-52L21-A3iNCP145..F201811

FROMAGE,TRIM0#

main71077-52L21-C1iNCP145..PORTE..F; NCP145..SPADE..F201412-201507

BLACK,TRIM4#; BLACK,TRIM40

main71077-52L21-C2iNCP145..F201507-201811

BLACK,TRIM4#

main71077-52L21-C4iNCP145..F201811

BLACK,TRIM4#

main71077-52L30-A1iNCP141..Y201207-201412

FROMAGE,TRIM0#

main71077-52L30-C1iNCP141..Y201207-201412

BLACK,TRIM4#

main71077-52L31-A1iNCP141..Y201412-201507

FROMAGE,TRIM0#

main71077-52L31-C1iNCP141..Y201412-201507

BLACK,TRIM4#

main71077-52L31-C2iNSP141..Y201811

BLACK,TRIM4#

main71077-52L40-A1iNCP145..Y201207-201412

FROMAGE,TRIM0#

main71077-52L40-C1iNCP145..Y201207-201412

BLACK,TRIM4#

main71077-52L41-A1iNCP145..Y201412-201507

FROMAGE,TRIM0#

main71077-52L41-C1iNCP145..Y201507-201811

BLACK,TRIM4#

main71077-52L41-C2iNCP145..Y201811

BLACK,TRIM4#

main71077-52L50-E1iNCP141..G201207-201412

PLUM,TRIM4#

main71077-52L51-E1iNCP141..G201412-201507

PLUM,TRIM4#

main71077-52L60-E1iNCP145..G201207-201412

PLUM,TRIM4#

main71077-52L61-E1iNCP145..G201412-201507

PLUM,TRIM4#

main71077-52Q20-C0iNCP145..X..CBU201507-201811

PLUM,TRIM0#,4#

main71077-52Q20-C1iNCP145..X..CBU201811

PLUM,TRIM4#

main71077-52Q50-C1iNSP141..G201507-201811

BLACK,TRIM0#,4#

main71077-52Q50-C2iNSP141..G201811

BLACK,TRIM4#

main71077-52Q60-C1iNCP145..G201507-201811

BLACK,TRIM0#,4#

main71077-52Q60-C2iNCP145..G201811

BLACK,TRIM4#

main71077-52Q30-A1iNSP141..PORTE..F..CBU201507-201607

main71077-52Q30-A2iNSP141..PORTE..F..CBU201712-201811

main71077-52Q30-C1iNSP141..SPADE..F..CBU201507-201607

main71077-52Q40-A1iNCP145..PORTE..F201507-201607

main71077-52Q40-A2iNCP145..PORTE..F201712-201811

main71077-52Q40-C1iNCP145..SPADE..F201712-201811

main71077-52W20-C0iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201907

main71077-52W20-E0iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201907-201910

main71077-52W20-E1iNSP141..F..CBU; NSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201910

main71077-52W30-C0iNCP145..PORTE..F; NCP145..SPADE..F201811-201907

main71077-52W30-E0iNCP145..F; NCP145..PORTE..F; NCP145..SPADE..F201910

main71077-52W30-E1iNCP145..F; NCP145..PORTE..F; NCP145..SPADE..F201910

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-52J30-E1iNCP145..X..CBU201207-201412

PLUM,TRIM4#

main71078-52J31-E1iNCP145..X..CBU201412-201507

PLUM,TRIM4#

main71078-52J40-A1iNCP141..F..CBU201207-201412

FROMAGE,TRIM0#

main71078-52J40-C1iNCP141..SPADE..F..CBU201207-201404

BLACK,TRIM4#

main71078-52J40-C2iNCP141..SPADE..F..CBU201404-201412

BLACK,TRIM44

main71078-52J41-A1iNCP141..F..CBU201412-201507

FROMAGE,TRIM0#

main71078-52J41-A2iNSP141..F..CBU201712-201811

FROMAGE,TRIM0#

main71078-52J41-A3iNSP141..F..CBU201811

FROMAGE,TRIM0#

main71078-52J41-C1iNCP141..PORTE..F..CBU; NCP141..SPADE..F..CBU201412-201507

BLACK,TRIM4#; BLACK,TRIM40,42

main71078-52J41-C2iNSP141..F..CBU201507-201811

BLACK,TRIM4#

main71078-52J41-C4iNSP141..F..CBU201811

BLACK,TRIM4#

main71078-52J50-A1iNCP145..F201207-201412

FROMAGE,TRIM0#

main71078-52J50-C1iNCP145..PORTE..F201207-201412

BLACK,TRIM4#

main71078-52J50-C2iNCP145..SPADE..F201404-201412

BLACK,TRIM44

main71078-52J51-A1iNCP145..F201507-201712

FROMAGE,TRIM0#

main71078-52J51-A2iNCP145..F201712-201811

FROMAGE,TRIM0#

main71078-52J51-A3iNCP145..F201811

FROMAGE,TRIM0#

main71078-52J51-C1iNCP145..PORTE..F; NCP145..SPADE..F201412-201507

BLACK,TRIM4#; BLACK,TRIM40

main71078-52J51-C2iNCP145..SPADE..F201412-201507

BLACK,TRIM44

main71078-52J51-C4iNCP145..F201811

BLACK,TRIM4#

main71078-52J60-A1iNCP141..Y201207-201412

FROMAGE,TRIM0#

main71078-52J60-C1iNCP141..Y201207-201412

BLACK,TRIM4#

main71078-52J61-A1iNCP141..Y201412-201507

FROMAGE,TRIM0#

main71078-52J61-C1iNSP141..Y201507-201811

BLACK,TRIM4#

main71078-52J61-C2iNSP141..Y201811

BLACK,TRIM4#

main71078-52J70-A1iNCP145..Y201207-201412

FROMAGE,TRIM0#

main71078-52J70-C1iNCP145..Y201207-201412

BLACK,TRIM4#

main71078-52J71-A1iNCP145..Y201412-201507

FROMAGE,TRIM0#

main71078-52J71-C1iNCP145..Y201507-201811

BLACK,TRIM4#

main71078-52J71-C2iNCP145..Y201811

BLACK,TRIM4#

main71078-52J80-E1iNCP141..G201207-201412

PLUM,TRIM4#

main71078-52J81-E1iNCP141..G201412-201507

PLUM,TRIM4#

main71078-52J90-E1iNCP145..G201207-201412

PLUM,TRIM4#

main71078-52J91-E1iNCP145..G201412-201507

PLUM,TRIM4#

main71078-52M40-C0iNCP145..X..CBU201507-201811

PLUM,TRIM0#,4#

main71078-52M40-C1iNCP145..X..CBU201811

PLUM,TRIM4#

main71078-52M70-C1iNSP141..G201507-201811

BLACK,TRIM0#,4#

main71078-52M70-C2iNSP141..G201811

BLACK,TRIM4#

main71078-52M80-C1iNCP145..G201507-201811

BLACK,TRIM0#,4#

main71078-52M80-C2iNCP145..G201811

BLACK,TRIM4#

main71078-52M50-A1iNSP141..PORTE..F..CBU201607-201712

main71078-52M50-A2iNSP141..PORTE..F..CBU201712-201811

main71078-52M50-C1iNSP141..SPADE..F..CBU201712-201811

main71078-52M60-A1iNCP145..PORTE..F201607-201712

main71078-52M60-A2iNCP145..PORTE..F201712-201811

main71078-52M60-C1iNCP145..SPADE..F201607-201712

main71078-52R70-C0iNSP141..F..CBU201910

main71078-52R70-E0iNSP141..F..CBU; NSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201910

main71078-52R70-E1iNSP141..F..CBU; NSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201910

main71078-52R80-C0iNCP145..PORTE..F; NCP145..SPADE..F201907

main71078-52R80-E0iNCP145..F; NCP145..PORTE..F; NCP145..SPADE..F201910

main71078-52R80-E1iNCP145..F; NCP145..PORTE..F; NCP145..SPADE..F201910

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-52060×4iNCP141..(F,G,Y)..CBU201207-201507

71309ABRACKET SUB-ASSY, REAR SEATBACK HOLDER

main71309-52070iNCP141..(F,G,Y)..CBU201207-201507

71405ASTRIKER SUB-ASSY, REAR SEAT LOCK, RH

main71405-52060iNSP141..(F,G,Y)..CBU201507

71406STRIKER SUB-ASSY, REAR SEAT LOCK, LH

main71406-52060iNSP141..(F,G,Y)..CBU201507

71485CCOVER, REAR SEAT HINGE, RH

main71485-52010-A0iNCP141..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main71485-52010-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main71485-52010-E0iNSP141..F..CBU201712

PLUM,TRIM0#

71486CCOVER, REAR SEAT HINGE, LH

main71486-52010-A0iNCP141..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main71486-52010-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main71486-52010-E0iNSP141..F..CBU201712

PLUM,TRIM0#

71611PAD, REAR SEAT CUSHION

main71611-52250iNCP141,NSP140..(V,X)..CBU201207-201507

main71611-52260iNCP145..CBU201207-201507

main71611-52230iNCP145..PORTE..F; NCP145..SPADE..F201712-201811

71611APAD, REAR SEAT CUSHION, RH

main71611-52270iNCP141..(F,G,Y)..CBU201207-201507

main71611-52280iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201507-201607

71612APAD, REAR SEAT CUSHION, LH

main71612-52190iNCP141..(F,G,Y)..CBU201207-201507

main71612-52170iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201712-201811

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-52780iNCP145..CBU201207-201507

main71651-52790iNSP141..(F,G,Y)..CBU201507

main71651-52620iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201607-201712

main71651-52630iNCP145..PORTE..F; NCP145..SPADE..F201507-201607

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-52610iNCP145..CBU201207-201507

main71652-52620iNCP141..(F,G,Y)..CBU201207-201507

main71652-52460iNSP141..PORTE..F..CBU; NSP141..SPADE..F..CBU201507-201607

main71652-52520iNCP145..PORTE..F; NCP145..SPADE..F201507-201607

71695CPROTECTOR, REAR SEAT, NO.1

main71695-52040-C0iNCP141..(F,Y)..CBU; NCP141..G201207-201507

BLACK,TRIM0#,4#; BLACK,TRIM4#

71696APROTECTOR, REAR SEAT, NO.2 LH

main71696-52020-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,2#,4#; BLACK,TRIM0#,4#; BLACK,TRIM4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-A6×3iNCP14#..(F,Y)..CBU201207-201507

main71930-44020-C0×3iNCP145,NSP141..F..CBU; NCP145,NSP141..Y; NSP141..G;NCP145..(G,X)..CBU; NSP141..X..CBU201507

main71930-44020-L1×3iNCP145,NSP141..F..CBU201712

main71931-47010-01×3iNCP14#..(F,Y)..CBU201207-201507

main71931-47010-C0iNCP145,NSP141..F..CBU; NCP145,NSP141..Y; NSP141..G;NCP145..(G,X)..CBU; NSP141..X..CBU201507

main71931-47010-L5×3iNCP145,NSP141..F..CBU201712

main71930-44020×3iNCP145,NSP141..SPADE..F..CBU201712-201811

main71931-47010×3iNCP145,NSP141..SPADE..F..CBU201712-201811

71940AHEADREST ASSY, REAR SEAT

main71940-52E10-A0×2iNCP14#..F..CBU; NCP141..F..CBU201207-201507

main71940-52E10-A1×2iNCP145,NSP141..F..CBU; NSP141..F..CBU201712-201811

main71940-52E10-A2×2iNCP145,NSP141..F..CBU; NSP141..F..CBU201811

main71940-52E10-C0×2iNCP145..SPADE..F201207-201404

BLACK,TRIM4#

main71940-52E10-C2×2iNCP14#..SPADE..F..CBU; NCP141..SPADE..F..CBU201404-201507

main71940-52E20-A0×2iNCP14#..Y201207-201507

FROMAGE,TRIM0#

main71940-52E20-C0×2iNCP14#..Y201207-201507

BLACK,TRIM4#

main71940-52E20-C1×2iNCP145,NSP141..Y201811

BLACK,TRIM4#

main71940-52E30-E0×2iNCP14#..G201207-201507

PLUM,TRIM4#

main71940-52E70-C1×2iNCP145,NSP141..G201507-201811

BLACK,TRIM0#,4#

main71940-52E70-C2×2iNCP145,NSP141..G201811

BLACK,TRIM4#

main71940-52E00-E0supersedes 71940-52E50-C1iNCP145..X..CBU201207-201507

main71940-52E10-C1iNCP141..F..CBU201207-201312

main71940-52E10-C4iNCP145,NSP141..F..CBU; NSP141..F..CBU201811

main71940-52E50-C0iNCP145..X..CBU201507-201811

main71940-52E50-C1iNCP145..X..CBU201811

main71940-52L50-C0×2iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201811-201907

main71940-52L50-E0×2iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907

71951ACOVER, REAR SEAT HEADREST

main71951-52140-A2×2iNCP145,NSP141..PORTE..F..CBU201507-201607

main71951-52160-C0×2iNCP145,NSP141..SPADE..F..CBU201507-201607

main71951-52180-A0×2iNCP145,NSP141..PORTE..F..CBU201607-201712

main71951-52190-C0×2iNCP145,NSP141..SPADE..F..CBU201607-201712

main71951-52220-E0×2iNCP145,NSP141..PORTE..F..CBU201712-201811

main71951-52230-C0×2iNCP145,NSP141..SPADE..F..CBU201712-201811

71951BCOVER, REAR SEAT HEADREST, CENTER

main71951-52150-A1iNCP145,NSP141..PORTE..F..CBU201507-201607

main71951-52170-C0iNCP145,NSP141..SPADE..F..CBU201507-201607

main71951-52200-A0iNCP145,NSP141..PORTE..F..CBU201607-201712

main71951-52210-C1iNCP145,NSP141..SPADE..F..CBU201607-201712

main71951-52240-E0iNCP145,NSP141..PORTE..F..CBU201712-201811

main71951-52250-C0iNCP145,NSP141..SPADE..F..CBU201712-201811

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-52670-A0iNCP145,NSP141..F..CBU201507-201712

FROMAGE,TRIM0#

main71960-52670-C0iNCP145,NSP141..(F,Y)..CBU; NCP145,NSP141..G201507-201811

BLACK,TRIM0#,4#; BLACK,TRIM4#

main71960-52670-C2iNCP145,NSP141..(F,G,Y)..CBU201811

BLACK,TRIM4#

main71960-52670-E0iNCP145,NSP141..X..CBU201507-201811

PLUM,TRIM0#,4#

main71960-52670-E2iNCP145,NSP141..F..CBU; NCP145,NSP141..X..CBU201811

PLUM,TRIM0#; PLUM,TRIM4#

main71960-52D20-C0iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907

main71960-52D20-E0iNCP145,NSP141..PORTE..F..CBU; NCP145,NSP141..SPADE..F..CBU201907

72065AHOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH

main72065-52020-A0iNSP141..F..CBU201507-201712

FROMAGE,TRIM0#

main72065-52020-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72065-52020-E2iNSP141..F..CBU201712

PLUM,TRIM0#

72066AHOOK SUB-ASSY,REAR SEAT CUSHION LOCK,LH

main72065-52020-A0iNSP141..F..CBU201507-201712

FROMAGE,TRIM0#

main72065-52020-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72065-52020-E2iNSP141..F..CBU201712

PLUM,TRIM0#

72137DCOVER, REAR SEAT TRACK, RH

main72137-52120-A0iNCP141..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main72137-52120-C0iNCP141..(F,G,Y)..CBU201207-201507

BLACK,TRIM4#

main72137-52120-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72137SCOVER, SEAT TRACK BRACKET, OUTER REAR RH

main72137-52130-A0iNCP141..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main72137-52130-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72137-52130-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72138ACOVER, REAR SEAT TRACK, LH

main72138-52100-A0iNCP141..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main72138-52100-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72138-52100-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72138MCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72138-52110-A0iNCP141..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main72138-52110-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72138-52110-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH

main72157-52160-A0iNCP141..(F,Y)..CBU201207-201305

FROMAGE,TRIM0#

main72157-52160-C0iNCP141..(F,G,Y)..CBU201207-201305

BLACK,TRIM4#

main72157-52161-A0iNCP141..(F,Y)..CBU201306-201507

FROMAGE,TRIM0#

main72157-52161-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72157-52161-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72157DCOVER, SEAT TRACK BRACKER, INNER RH

main72157-52170-A0iNSP141..F..CBU201507-201712

FROMAGE,TRIM0#

main72157-52170-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72157-52170-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72158ACOVER, REAR SEAT TRACK BRACKET, INNER LH

main72158-52110-A0iNCP141..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main72158-52110-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72158-52110-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72158BCOVER, SEAT TRACK BRACKET, INNER LH

main72158-52120-A0iNCP141..(F,Y)..CBU201207-201305

FROMAGE,TRIM0#

main72158-52120-C0iNCP141..(F,G,Y)..CBU201207-201305

BLACK,TRIM4#

main72158-52121-A0iNCP141..(F,Y)..CBU201306-201507

FROMAGE,TRIM0#

main72158-52121-C0iNSP141..F..CBU; NSP141..G; NSP141..Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72158-52121-E0iNSP141..F..CBU201712

PLUM,TRIM0#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-52170iNCP14#,NSP140..(V,X)..CBU201207-201403

main72601-52270-E0iNCP14#..(F,Y)..CBU; NCP14#..G201207-201507

PLUM,TRIM0#,4#; PLUM,TRIM4#

main72601-52271-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main72601-52271-E0iNCP145,NSP141..F..CBU201811

PLUM,TRIM0#,40

main72601-52280iNCP145,NSP141..(V,X)..CBU201507

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-52230×2iNCP145,NSP141..(F,G,Y)..CBU201507

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-52090iNCP14#,NSP140..(V,X)..CBU201207-201403

main72602-52110-E0iNCP145,NSP141..(F,G)..CBU; NCP145,NSP141..Y201507-201612

PLUM,TRIM0#,4#; PLUM,TRIM4#

main72602-52111-C0iNCP145,NSP141..F..CBU201811

BLACK,TRIM2#,42

main72602-52111-E0iNCP145,NSP141..G,Y201701

PLUM,TRIM4#

main72602-52130iNCP14#,NSP140..(V,X)..CBU201403-201507

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-52150iNCP145..CBU;NCP141..(F,G,Y)..CBU201207-201306

main72630-52151iNCP141,NSP140..(V,X)..CBU201207-201306

main72630-52210iNCP145..CBU;NCP141..(F,G,Y)..CBU201306-201507

main72630-52220iNCP141,NSP140..(V,X)..CBU201306-201507

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-52150iNCP145..CBU;NCP141..(F,G,Y)..CBU201207-201306

main72640-52151iNCP141,NSP140..(V,X)..CBU201207-201306

main72640-52200iNCP145..CBU;NSP141..(F,G,Y)..CBU201507

main72640-52210iNCP141,NSP140..(V,X)..CBU201306-201507

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33010-A1×2iNCP14#..(F,Y)..CBU201207-201507

FROMAGE,TRIM0#

main72646-33010-C0×2iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU; NCP145,NSP141..V,Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72646-33010-E4×2iNCP145,NSP141..F..CBU201712

PLUM,TRIM0#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-32030-A1×2iNCP145,NSP141..F..CBU201507-201712

FROMAGE,TRIM0#

main72661-32030-C0×2iNCP145,NSP141..(G,X)..CBU; NCP145,NSP141..F..CBU; NCP145,NSP141..V,Y201507

BLACK,TRIM0#,4#; BLACK,TRIM2#,4#; BLACK,TRIM4#

main72661-32030-E3×2iNCP145,NSP141..F..CBU201712

PLUM,TRIM0#

72995COVER, REAR SEAT CUSHION, RH

main72995-52040-A0iNSP141..PORTE..F..CBU201507-201607

main72995-52060-C0iNSP141..SPADE..F..CBU201507-201607

main72995-52080-A0iNSP141..PORTE..F..CBU201607-201712

main72995-52100-C0iNSP141..SPADE..F..CBU201607-201712

main72995-52120-E1iNSP141..PORTE..F..CBU201712-201811

main72995-52140-C1iNSP141..SPADE..F..CBU201712-201811

72996COVER, REAR SEATBACK, RH

main72996-52040-A0iNSP141..PORTE..F..CBU201507-201607

main72996-52050-A0iNCP145..PORTE..F201507-201607

main72996-52060-C0iNSP141..SPADE..F..CBU201507-201607

main72996-52070-C0iNCP145..SPADE..F201507-201607

main72996-52080-A1iNSP141..PORTE..F..CBU201607-201712

main72996-52090-A1iNCP145..PORTE..F201607-201712

main72996-52100-C0iNSP141..SPADE..F..CBU201607-201712

main72996-52110-C0iNCP145..SPADE..F201607-201712

main72996-52120-E0iNSP141..PORTE..F..CBU201712-201811

main72996-52130-E0iNCP145..PORTE..F201712-201811

main72996-52140-C0iNSP141..SPADE..F..CBU201712-201811

main72996-52150-C0iNCP145..SPADE..F201712-201811

72997COVER, REAR SEATBACK, LH

main72997-52020-A0iNSP141..PORTE..F..CBU201507-201607

main72997-52030-A0iNCP145..PORTE..F201507-201607

main72997-52040-C0iNSP141..SPADE..F..CBU201507-201607

main72997-52050-C0iNCP145..SPADE..F201507-201607

main72997-52060-A1iNSP141..PORTE..F..CBU201607-201712

main72997-52070-A1iNCP145..PORTE..F201607-201712

main72997-52080-C0iNSP141..SPADE..F..CBU201607-201712

main72997-52090-C0iNCP145..SPADE..F201607-201712

main72997-52100-E0iNSP141..PORTE..F..CBU201712-201811

main72997-52110-E0iNCP145..PORTE..F201712-201811

main72997-52120-C0iNSP141..SPADE..F..CBU201712-201811

main72997-52130-C0iNCP145..SPADE..F201712-201811

72998COVER, REAR SEAT CUSHION, LH

main72998-52030-A0iNSP141..PORTE..F..CBU201507-201607

main72998-52040-C0iNSP141..SPADE..F..CBU201507-201607

main72998-52050-A0iNSP141..PORTE..F..CBU201607-201712

main72998-52060-C0iNSP141..SPADE..F..CBU201607-201712

main72998-52070-E1iNSP141..PORTE..F..CBU201712-201811

main72998-52080-C1iNSP141..SPADE..F..CBU201712-201811

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-52210iNSP141..(V,X)..CBU201507

main73705-52220iNSP141..(F,G,Y)..CBU201507

main73705-52230iNCP145..CBU201207-201507

78920CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2

main78920-52010-E1×2iNSP141..F..CBU; NSP141..G; NSP141..Y201507

PLUM,TRIM0#,2#,4#; PLUM,TRIM0#,4#; PLUM,TRIM4#

79977FELT, SEATBACK

main79977-52220×2iNCP145..CBU;NSP141..(F,G,Y)..CBU201907

79977FFELT, SEATBACK, LH

main79977-52230iNCP145..CBU;NSP141..(F,G,Y)..CBU201907

9011910636

main90119-10636

9011910927

main90119-10927

9016850078

main90168-50078

9017908068

main90179-08068

9046312014

main90463-12014

9046313003

main90463-13003

9155180820

main91551-80820

9155380820

main91553-80820

9167281022

main91672-81022

61 parts on this diagram · 5 diagrams in section
