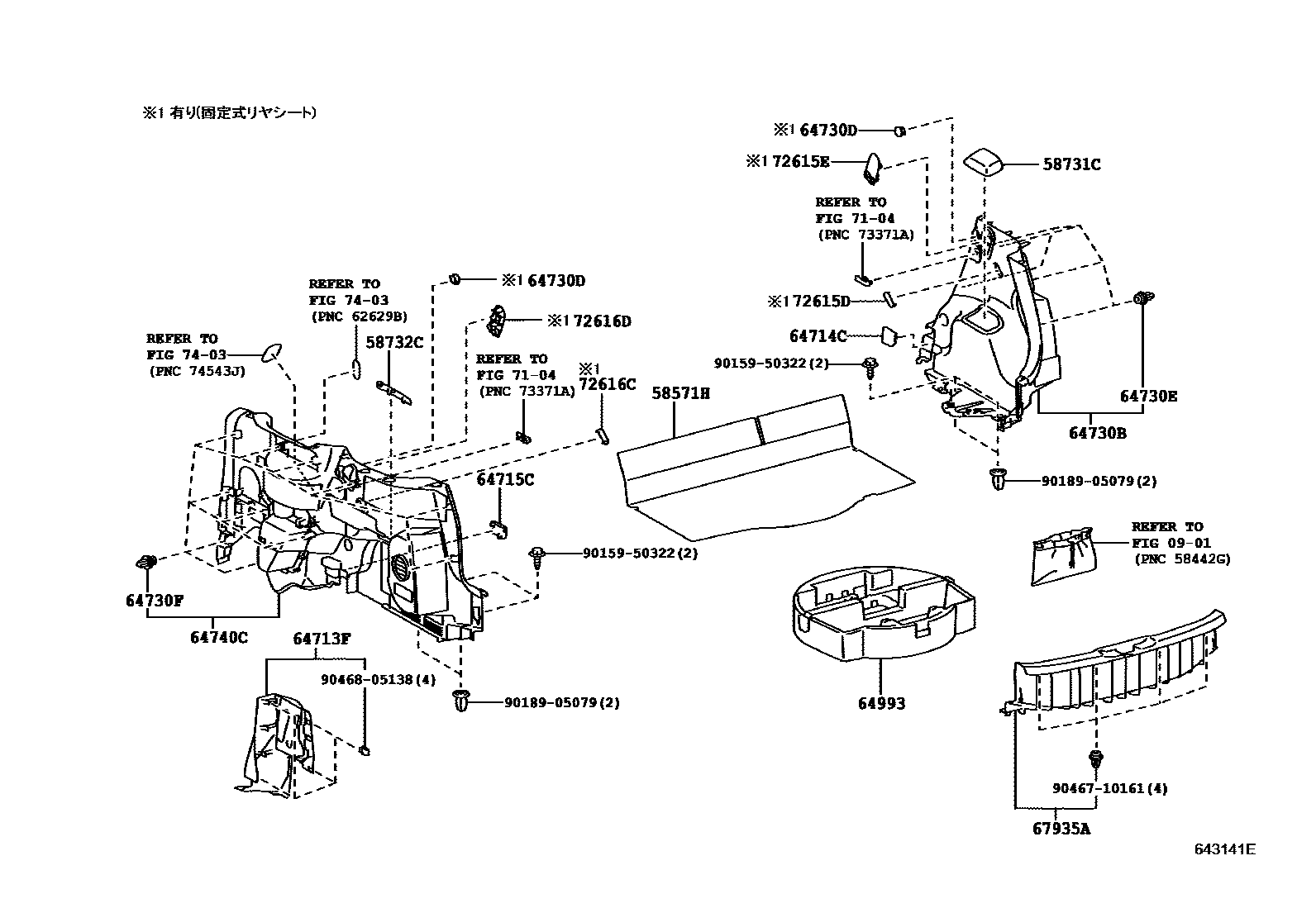

DECK BOARD & DECK TRIM COVER
0901STANDARD TOOL
58571HCARPET, REAR FLOOR
PLUM,TRIM0#,4#; PLUM,TRIM4#
PLUM,TRIM0#,2#,4#; PLUM,TRIM0#,4#; PLUM,TRIM4#
58731CCAP, REAR ABSORBER
BLACK,TRIM2#,42
PLUM,TRIM0#,4#; PLUM,TRIM4#
58732CCAP, REAR ABSORBER
BLACK,TRIM2#,42
PLUM,TRIM0#,4#; PLUM,TRIM4#
64713FCOVER, DECK SIDE TRIM, FRONT LH
main64713-52080-E1supersedes 64713-52070-E0iNCP14#,NSP140..(G,V,X)..CBU; NCP14#..(F,Y)..CBU201207-201507
64714CCOVER, DECK SIDE TRIM, RH
BLACK,TRIM2#,42
PLUM,TRIM0#,4#; PLUM,TRIM4#
64715CCOVER, DECK SIDE TRIM, LH
BLACK,TRIM2#,42
PLUM,TRIM0#,4#; PLUM,TRIM4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
PLUM,TRIM0#,4#; PLUM,TRIM4#
BLACK,TRIM2#,42
PLUM,TRIM0#,4#
64730DPLUG, HOLE(FOR DECK TRIM SIDE BOARD)
PLUM,TRIM0#,4#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64730FCLAMP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-52570-E0iNCP14#,NSP140..X..CBU; NCP14#..PORTE..F..CBU; NCP141..PORTE..Y;NCP145..SPADE..F;NCP145,NSP140..V,Y;NCP141..SPADE..(F,Y)..CBU201207-201507
PLUM/BLACK,TRIM02,03,4#; PLUM/BLACK,TRIM4#; PLUM/BLACK,TRIM40,42
main64740-52570-E1iNCP14#,NSP140..X..CBU; NCP141..PORTE..F..CBU; NCP145..PORTE..F; NCP145..Y;NCP141..PORTE..Y;NCP145..SPADE..F;NCP141..SPADE..(F,Y)..CBU201207-201507
PLUM/ORANGE,TRIM0#; PLUM/ORANGE,TRIM00; PLUM/ORANGE,TRIM00,01; PLUM/ORANGE,TRIM41,43
PLUM,TRIM4#
PLUM,TRIM4#
BLACK,TRIM2#,42
PLUM/BLACK,TRIM40
PLUM/PINK,TRIM00; PLUM/PINK,TRIM41
PLUM/BROOD ORANGE,TRIM00; PLUM/BROOD ORANGE,TRIM41
main64740-52671-E0iNCP145,NSP141..PORTE..X..CBU; NSP141..PORTE..F..CBU;NCP145,NSP141..SPADE..X..CBU; NSP141..SPADE..F..CBU201507-201607
64993BOX, DECK FLOOR, REAR
67935APLATE, BACK DOOR SCUFF
BLACK,TRIM2#,42
PLUM,TRIM0#,4#; PLUM,TRIM4#
7104SEAT BELT & CHILD RESTRAINT SEAT
72615DCOVER, REAR SEATBACK LOCK STRIKER, RH
PLUM,TRIM4#
72615ECOVER, REAR SEATBACK LOCK STRIKER, RH
PLUM,TRIM4#
72616CCOVER, REAR SEATBACK LOCK STRIKER, LH
PLUM,TRIM0#,4#
72616DCOVER, REAR SEATBACK LOCK STRIKER, LH
PLUM,TRIM4#
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9015950322
main90159-50322
9018905079
main90189-05079
9046710161
main90467-10161
9046805138
main90468-05138
24 parts on this diagram · 18 diagrams in section
