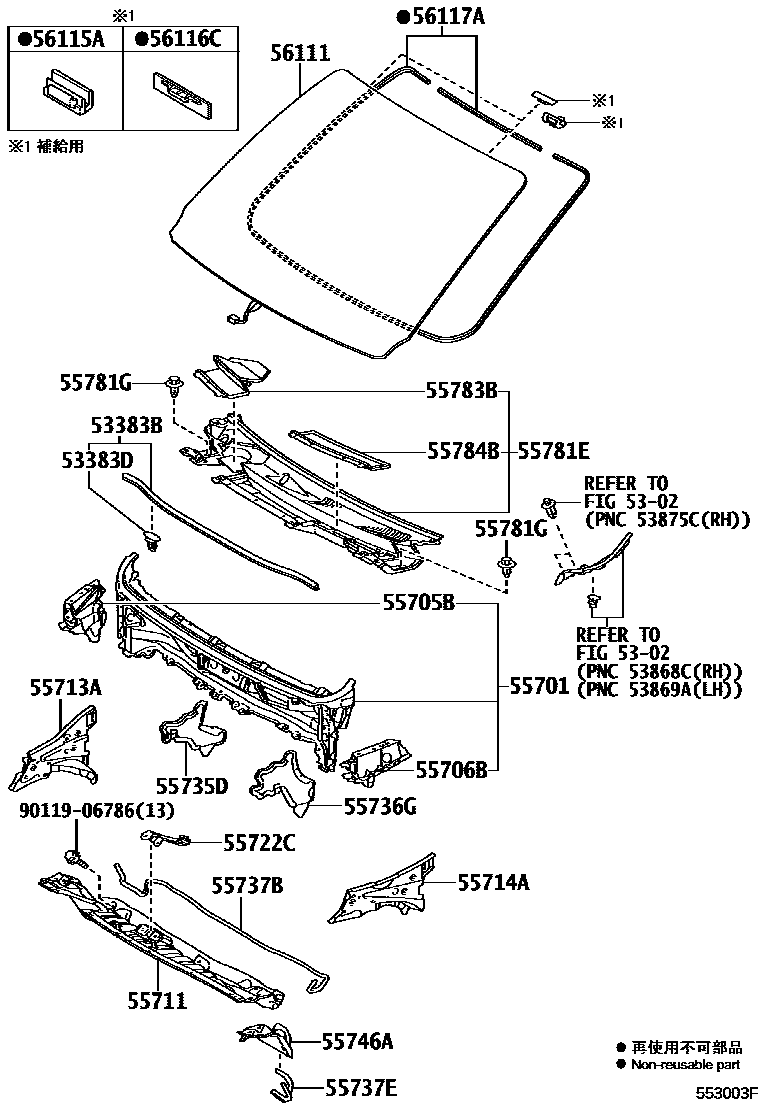

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53383BSEAL, HOOD TO COWL TOP

main53383-52150iNCP145,NSP141..CBU201507

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×8iNCP14#,NSP140..CBU201207-201507

55701PANEL SUB-ASSY, COWL

main55700-52380iNCP14#,NSP140..CBU201207-201507

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52190iNCP14#,NSP140..CBU201207-201507

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52190iNCP14#,NSP140..CBU201207-201507

55711PANEL, COWL TOP, OUTER

main55701-52330iNCP14#,NSP140..CBU201207-201403

55713APANEL, COWL TOP SIDE, RH

main55713-52150iNCP14#,NSP140..CBU201207-201507

55714APANEL, COWL TOP SIDE, LH

main55714-52150iNCP14#,NSP140..CBU201207-201507

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52190iNCP14#,NSP140..CBU201207-201403

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52120iNCP14#,NSP140..CBU201207-201507

55736GSEAL, FRONT AIR SHUTTER, LH

main55736-52070iNCP145,NSP141..CBU201507

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52190iNCP145,NSP141..CBU201507

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52200iNCP14#,NSP140..CBU201207-201507

55746AREINFORCEMENT, COWL TOP, INNER LOWER

main55746-52170iNCP14#,NSP140..CBU201404-201507

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52340supersedes 55708-52331iNCP145,NSP141..CBU201507-201508

main55708-52341supersedes 55708-52331iNCP145,NSP141..CBU201509

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iNCP14#,NSP140..CBU201207-201507

BLACK

main90467-07076-C7×2iNCP145,NSP141..CBU201703

BLACK

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52320iNCP14#,NSP140..CBU201207-201507

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-52130iNCP14#,NSP140..CBU201207-201507

56111GLASS, WINDSHIELD

main56101-52948iNCP14#,NSP140..(F,V,X,Y)..CBU201207-201507

main56101-52966iNCP145,NSP141..(F,V,X,Y)..CBU201507-201607

main56101-52949iNCP14#,NSP140..(F,X,Y)..CBU; NCP14#..G201207-201507

main56101-52950iNCP14#,NSP140..(F,X,Y)..CBU; NSP140..V201207-201507

main56101-52951iNCP14#,NSP140..(F,X,Y)..CBU; NCP14#..G201207-201507

main56101-52967iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201507-201607

main56101-52968iNCP145,NSP141..(F,X,Y)..CBU201507-201607

main56101-52969iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201507-201607

main56101-5C901supersedes 56101-5C900iNCP145,NSP141..(F,X,Y)..CBU201607-201712

main56101-5C902supersedes 56101-5C900iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201607-201712

main56101-5C903supersedes 56101-5C900iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201607-201712

main56101-5C907supersedes 56101-5C906iNCP145,NSP141..(F,X,Y)..CBU201712

main56101-5C908supersedes 56101-5C906iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201712

main56101-5C909supersedes 56101-5C906iNCP145,NSP141..(F,X,Y)..CBU; NCP145,NSP141..G201712

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNCP145,NSP141..CBU201507

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNCP14#,NSP140..CBU201207-201507

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50130iNCP145,NSP141..CBU; NCP145,NSP141..G,V201507

9011906786

main90119-06786

24 parts on this diagram · 2 diagrams in section
