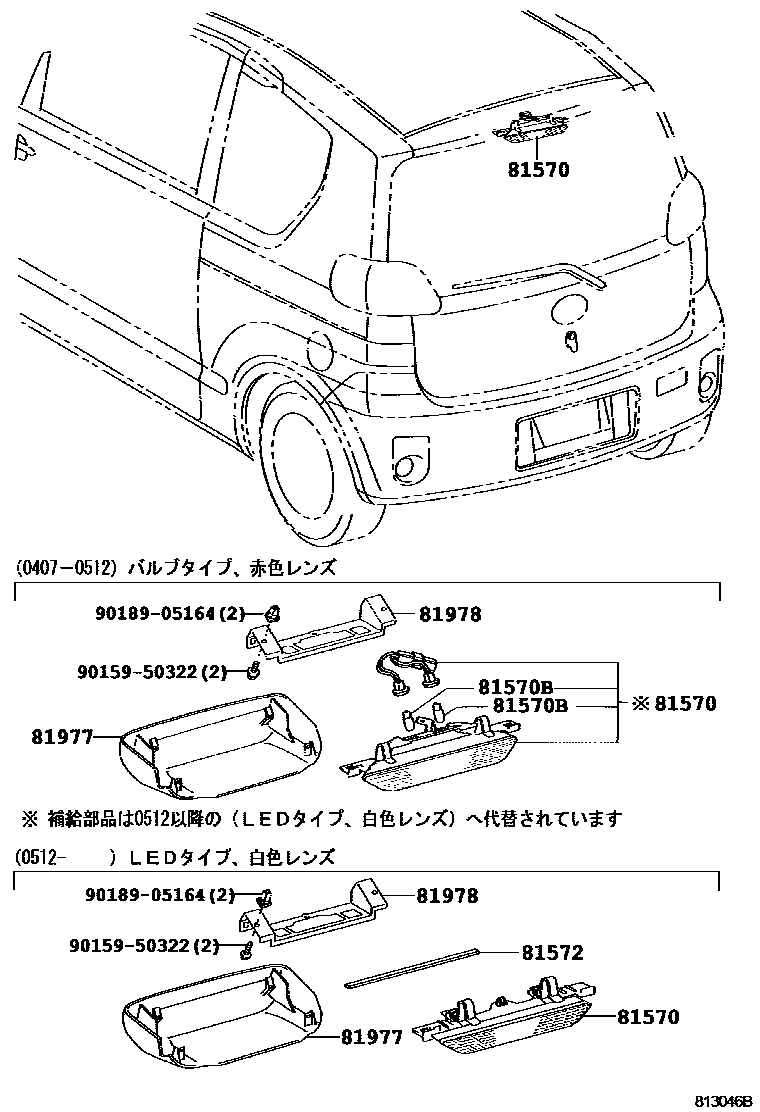

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-28210iNNP1#200512-200706

main81570-28240iNNP1#200407-200512

81570BBULB (FOR CENTER STOP LAMP)

main90981-11059×2iNNP1#200407-200512

81572GASKET, CENTER STOP LAMP

main81572-52030iNNP1#200706

81977COVER, CENTER STOP LAMP

main81977-52090iNNP1#200407-200706

81978BRACKET, STOP CENTER

main81978-52020iNNP1#200407-200706

9015950322

main90159-50322

9018905164

main90189-05164

7 parts on this diagram · 1 diagram in section
