HEADLAMP
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110BBULB(FOR HEADLAMP, NO.1)
81110LBULB, DISCHARGE HEADLAMP
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81135CCOVER, HEADLAMP BACK, NO.1
81144CCOVER, HEADLAMP SOCKET
81175UNIT ASSY, HEADLAMP, LH
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195CRETAINER, RH HEADLAMP PROTECTOR, LOWER LH
81196BRETAINER, LH HEADLAMP PROTECTOR, LOWER RH
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
85662MOTOR, HEADLAMP LEVELING, LH
9007502056
main90075-02056
9007599120
main90075-99120
9015950346
main90159-50346
9018905142
main90189-05142

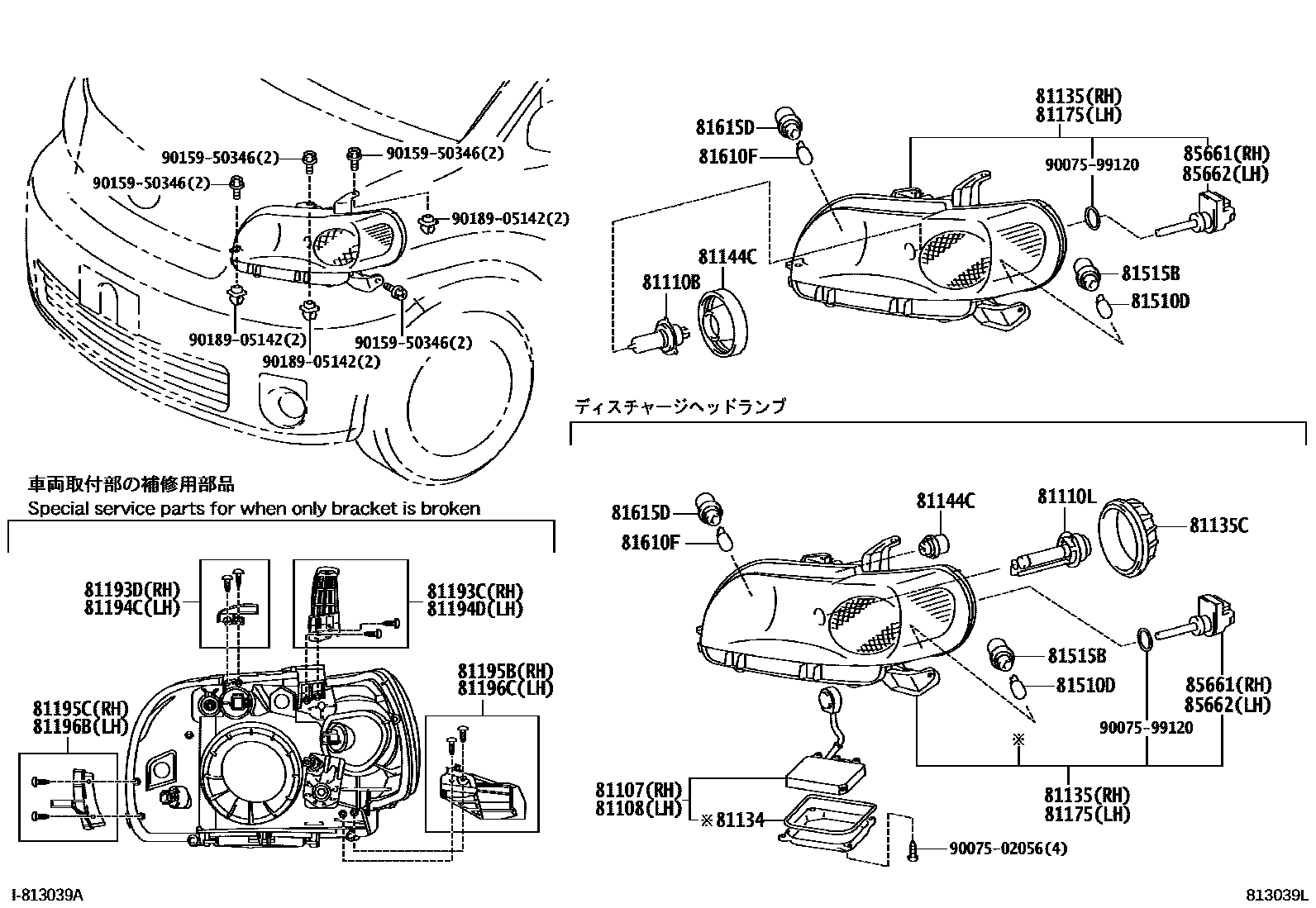

27 parts on this diagram · 1 diagram in section
