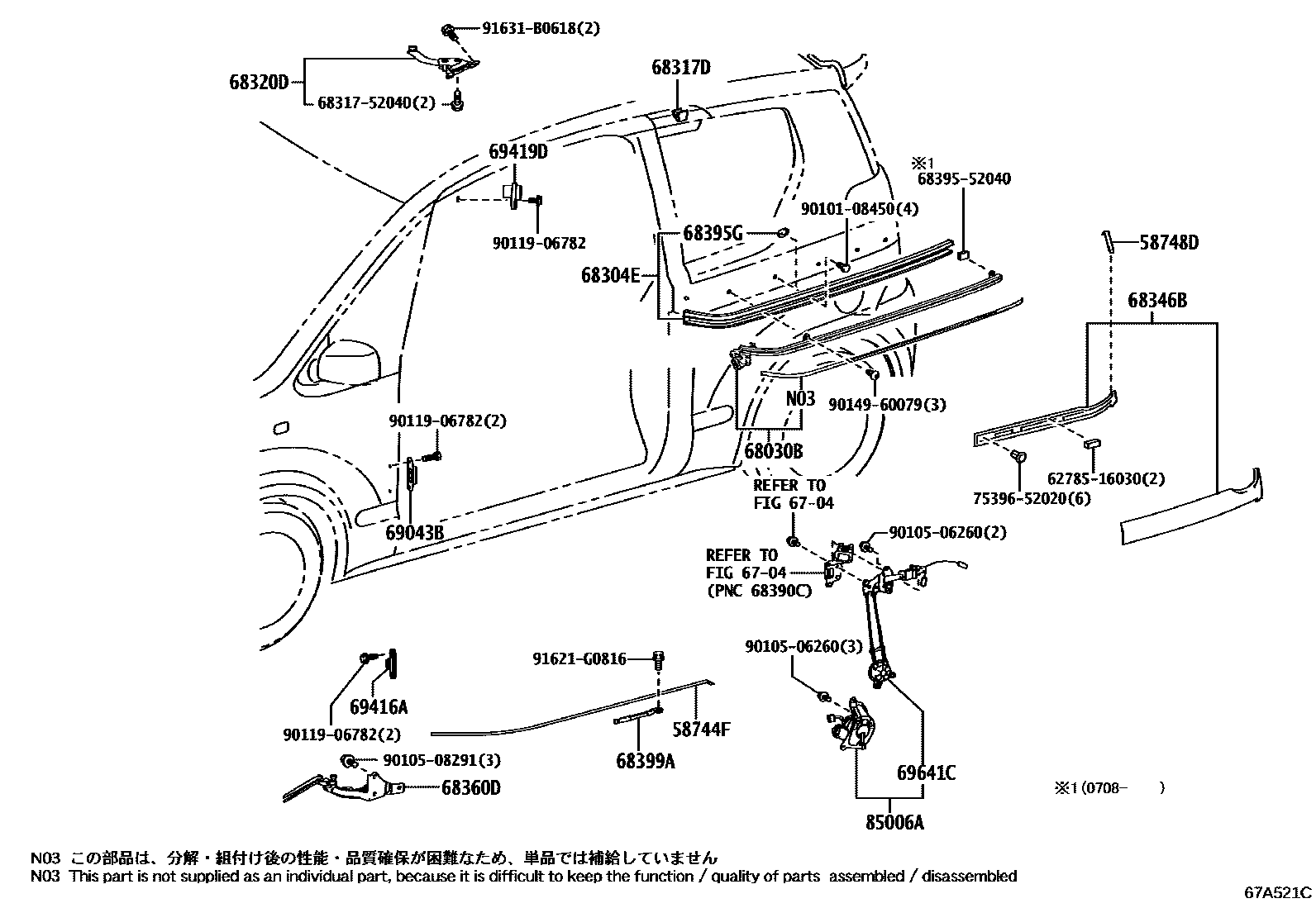

SLIDE DOOR ROLLER & RAIL
58744FPROTECTOR, SLIDE DOOR PANEL, LH
58748DPROTECTOR, QUARTER PANEL, REAR LH
6704FRONT DOOR WINDOW REGULATOR & HINGE
68030BGUIDE ASSY, SLIDE DOOR CABLE
68304ERAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68317DSTOPPER, SLIDE DOOR UPPER RAIL
68320DROLLER ASSY, SLIDE DOOR, UPPER, LH
68346BCOVER, SLIDE DOOR CENTER RAIL, LH
68360DROLLER ASSY, SLIDE DOOR, LOWER LH
68395GPACKING, SLIDE DOOR CENTER RAIL
68399APLATE, SLIDE DOOR LOWER RAIL, LH
69043BSTOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
69416ASTOPPER, SLIDE DOOR DOWN MALE
69419DSTOP, SLIDE DOOR OPEN, LH
69641CCONTROL, SLIDE DOOR ATTACHMENT, LH
85006AMOTOR UNIT, SLIDE DOOR, LH
6278516030WEATHERSTRIP, SIDE WINDOW GLASS, CENTER
main62785-16030
6831752040STOPPER, SLIDE DOOR UPPER RAIL, RH
main68317-52040
6839552040PACKING, SLIDE DOOR CENTER RAIL
main68395-52040
7539652020CLIP, OUTSIDE MOULDING, NO.2
main75396-52020
9010108450
main90101-08450
9010506260
main90105-06260
9010508291
main90105-08291
9011906782
main90119-06782
9014960079
main90149-60079
91621G0816
main91621-G0816
91631B0618
main91631-B0618
27 parts on this diagram · 1 diagram in section
