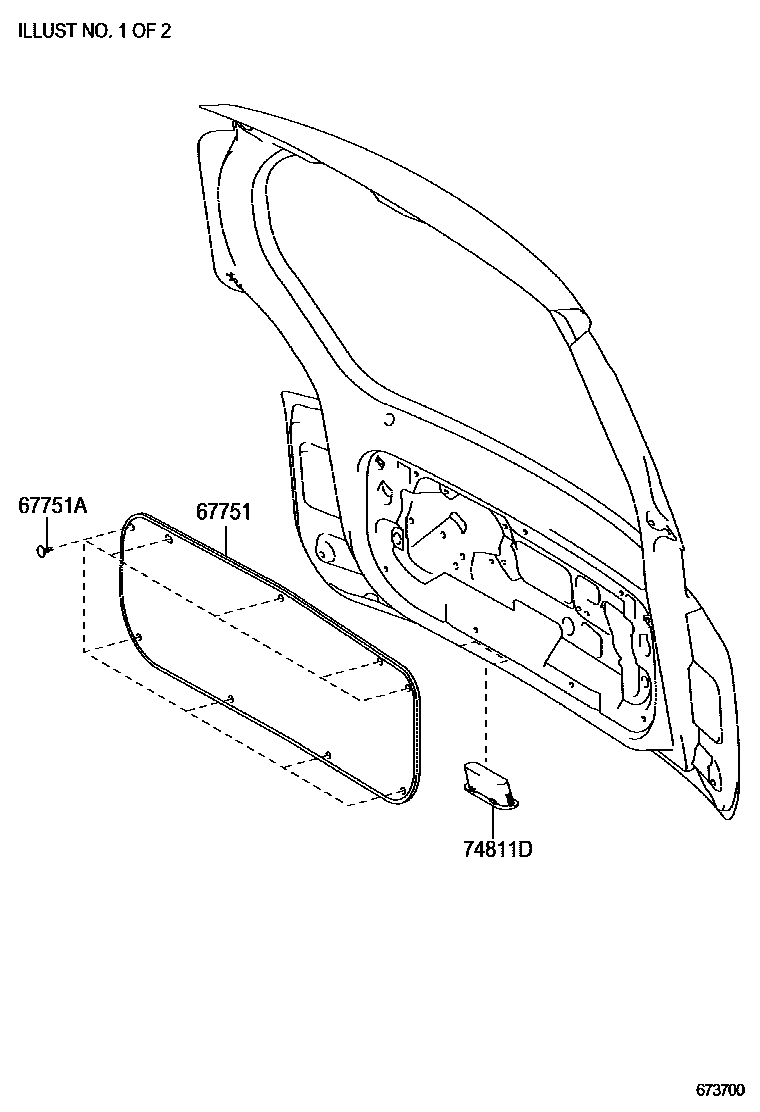

BACK DOOR PANEL & GLASS

0001 1 0002 1

67751BOARD, BACK DOOR TRIM

main67751-52130-A1iNNP1#200407-200706

IVORY,TRIM0#

main67751-52130-E1iNNP1#200706-201206

GREGE,TRIM4#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-06020-A2iNNP1#200407-200706

IVORY,TRIM0#

main90467-06020-E7iNNP1#200706-201206

GREGE,TRIM4#

74811DHANDLE, DOOR PULL

main74811-13010-B5iNNP1#200407-200706

DK.GRAY,TRIM0#

main74811-13010-B5iNNP1#200706-201206

DK.GRAY,TRIM4#

3 parts on this diagram · 2 diagrams in section
