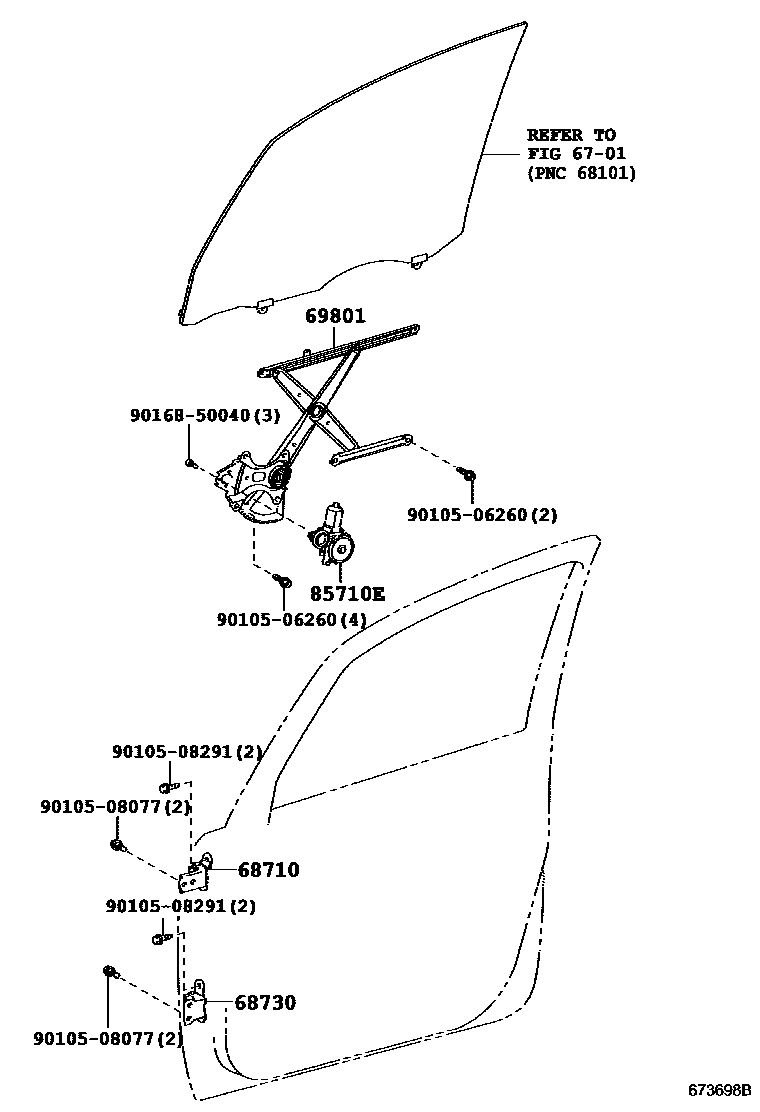

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1��������� 0002 1���������������

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iNNP1#200407-200609

main68710-12151iNNP1#200610-200706

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-33020iNNP1#200407-200609

main68730-33021iNNP1#200610-200706

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52110iNNP1#200407-200706

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-58010iNNP1#200407-200706

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

9 parts on this diagram · 2 diagrams in section
