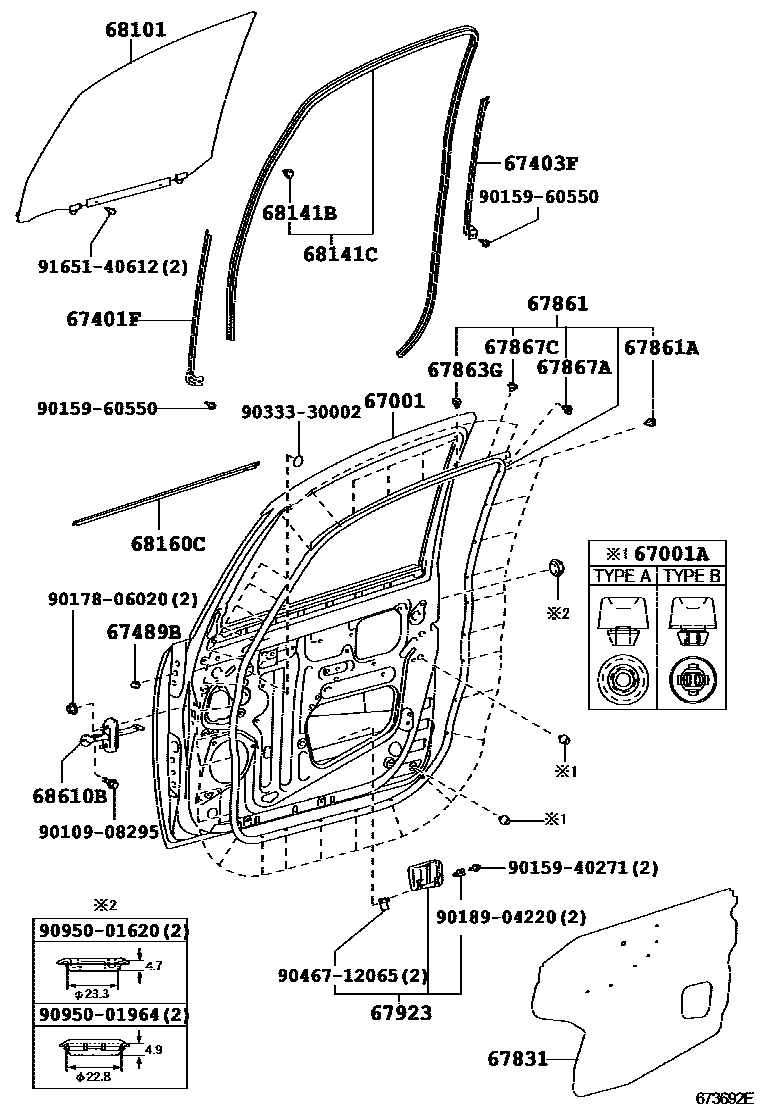

FRONT DOOR PANEL & GLASS

0001 1�������(������ ���) 0002 1�������(����������) 0003 1������(���������) 0004 1������(����������) 0005 1TRIM CODE TABLE 0006 1TRIM CODE TABLE

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52220iNNP1#200407-200706

main67001-52221iNNP1#200710-201206

67001ACUSHION, FRONT DOOR PANEL

main90541-09091×2iNNP1#200407-200706

main90541-09117×2iNNP1#200407-200706

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52070iNNP1#200407-200706

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52150iNNP1#200407-200706

67489BPACKING, FRONT DOOR LOWER COVER

main67489-52020iNNP1#200407-200706

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52220iNNP1#200407-200706

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52110iNNP1#200407-200706

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×27iNNP1#200407-200706

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-52030×4iNNP1#200407-200706

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main90467-06084iNNP1#200407-200706

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-52010×4iNNP1#200407-200706

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-52120iNNP1#200407-200706

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-52010iNNP1#200706

68141BCLIP, DOOR GLASS RUN

main90467-06084iNNP1#200407-200706

68141CRUN, FRONT DOOR GLASS, RH

main68141-52150iNNP1#200407-200607

main68141-52210iNNP1#200607-200706

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-52010iNNP1#200407-200706

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52080iNNP1#200706-200712

main68610-52120iNNP1#200712-201001

main68610-52160iNNP1#201001

9010908295

main90109-08295

9015940271

main90159-40271

9015960550

main90159-60550

9017806020

main90178-06020

9018904220

main90189-04220

9033330002

main90333-30002

9046712065

main90467-12065

9095001620

main90950-01620

9095001964

main90950-01964

9165140612

main91651-40612

27 parts on this diagram · 6 diagrams in section
