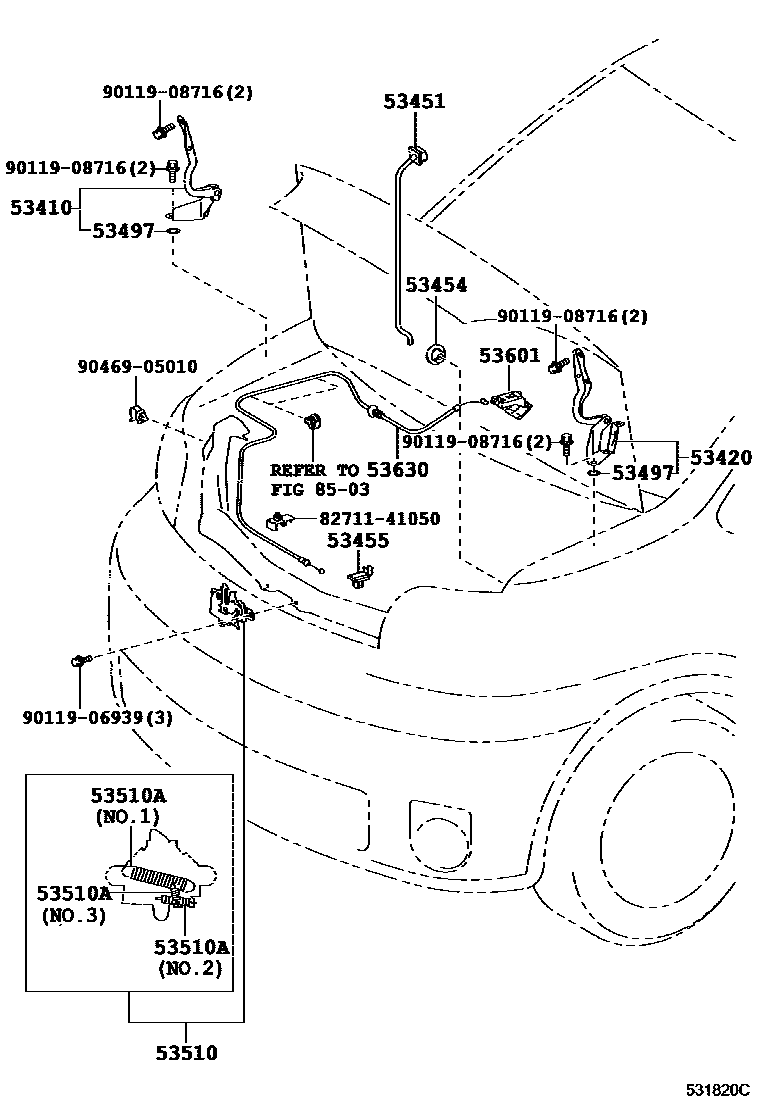

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52150iNNP1#200407-200706

main53410-52160iNNP1#200407-200706

main53410-52170iNNP1#200407-200706

53420HINGE ASSY, HOOD, LH

main53420-52150iNNP1#200706-201206

main53420-52160iNNP1#200407-200706

main53420-52170iNNP1#200407-200706

53451ROD, HOOD SUPPORT

main53440-52090iNNP1#200407-200706

53454CLIP, HOOD SUPPORT ROD

main53454-52010iNNP1#200407-200706

53455CLAMP, HOOD SUPPORT ROD

main53455-28020iNNP1#200407-200706

53497PAD, HOOD HINGE, NO.1

main53497-10020×2iNNP1#200407-200706

main53497-42010×2iNNP1#200407-200706

53510LOCK ASSY, HOOD

main53510-52260iNNP1#200407-200706

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iNNP1#200706

main90506-12063iNNP1#200706

main90506-16077iNNP1#200407-200706

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-A0iNNP1#200407-200706

IVORY,TRIM0#

main53601-52010-E4iNNP1#200706-201206

GREGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52100iNNP1#200407-200706

8503WINDSHIELD WASHER

→ Go to FIG 85-03

8271141050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-41050

9011906939

main90119-06939

9011908716

main90119-08716

9046905010

main90469-05010

15 parts on this diagram · 1 diagram in section
